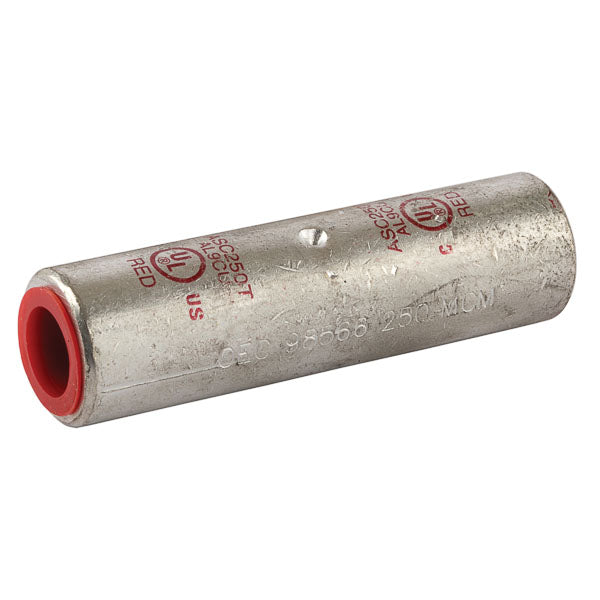

NSI ASC250T ASC-T Standard Barrel Dual Rated Compression Splice Connector 250 kcmil

Product Description

The NSI ASC250T is a standard barrel dual rated compression splice connector. It is designed for use with a stranded conductor sized 250 kcmil. This connector features a length of three point two four inches and is suitable for a voltage rating of six hundred VAC.

• Produced from high conductivity aluminum tubing
• Electro-tin plated for improved corrosion resistance
• Rated for use at ninety degrees Celsius

Product Highlights

The NSI ASC250T is ideal for connecting two conductors in electrical applications. This splice connector ensures reliable conductivity and performance in various environments.

Product Information

Standard Information

• Manufacturer: NSi Industries
• Part Number: ASC250T NI

Technical Specifications

• Type: Standard Barrel Dual Rated
• Conductor Size: 250 kcmil
• Conductor Type: Stranded
• Length: 3.24 in
• Material: Aluminum
• Finish: Electro-Tin Plated
• Temperature Rating: 90 deg C
• Voltage Rating: 600 VAC
• Specifications: 1 Pole, 2 Conductor
• Dimensions: 0.589 in ID x 0.92 in OD
• Color: Red
