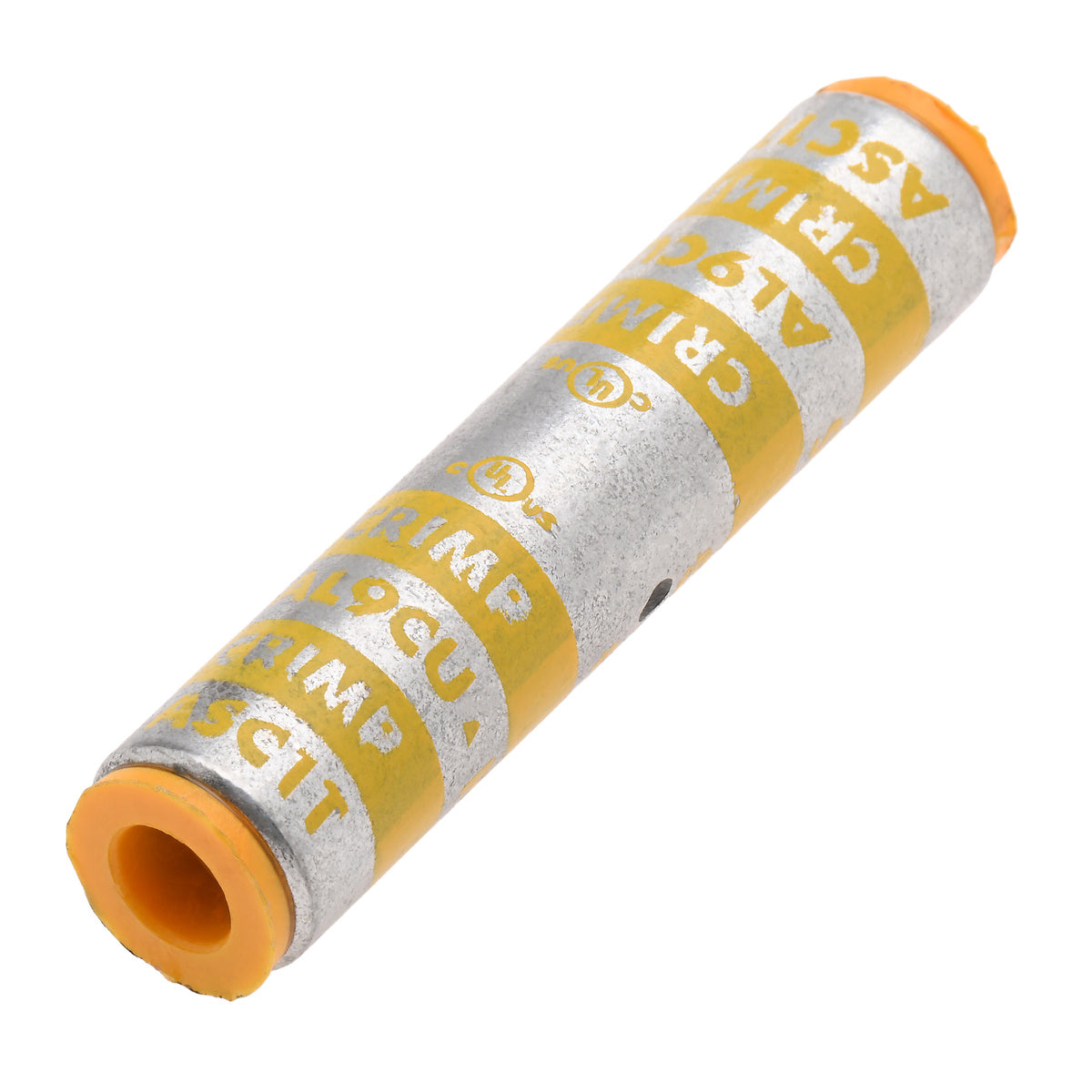

Nsi ASC1T 1 Awg Alum Compresion Splice(Al/Cu)

Product Description

The NSI ASC1T splicing conductors are the professional’s choice for making quick in-line connections and repairing damaged wiring. Use POLARIS splice connectors for bonding solid or fine stranded UL-listed wires in harsh environments. The splice is flex rated for use with K, H, G, I, M and DLO cable.

• High conductivity aluminum tubing and corrosive resistant tin-plated finish
• Center stop assures proper cable installation
• Die cast color-coded identification

Product Highlights

The NSI ASC1T is a reliable choice for creating secure and long-lasting electrical connections. It is pre-filled with oxide inhibitor and capped with color coded cap.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: ASC1T

Technical Specifications

• Voltage Rating: 600V
• Material: Aluminum
• Finish: Tin Plated
• Pack Qty: 24
• GTIN: 6.62381E+11
• UPC: 662381032034
• EAN: 6.62381E+11
• UNSPSC: 39121449
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Cu Size Range: 250 MCM – 6 AWG
• Conductor Al Size Range: 250 MCM – 6 AWG
• Conductor Type: Aluminum, Copper
• Wire Range: 1 AWG
• Assortment: Aluminum Compression Splices
• Expanded Wire Range: 1 AWG – 6 AWG
• Die Color Code: Gold
• Barrel Length: 2.38
• Brand: NSi Industries
• Conductor Size: 1 AWG
• Length: 2.37 in
• Series: ASC-T Series
• Temperature Rating: 90 deg C
• Type: Dual Rated Standard Barrel
