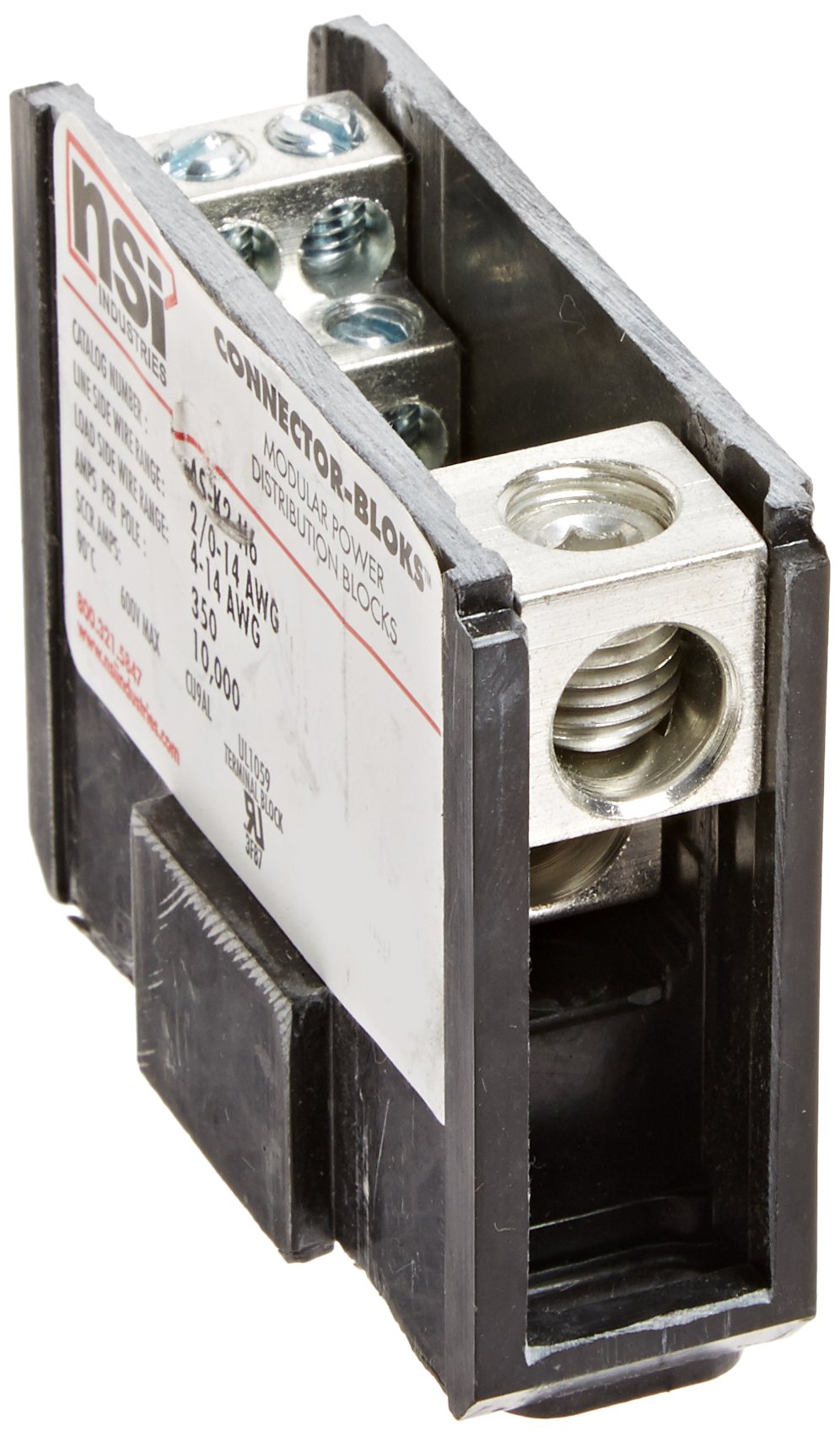

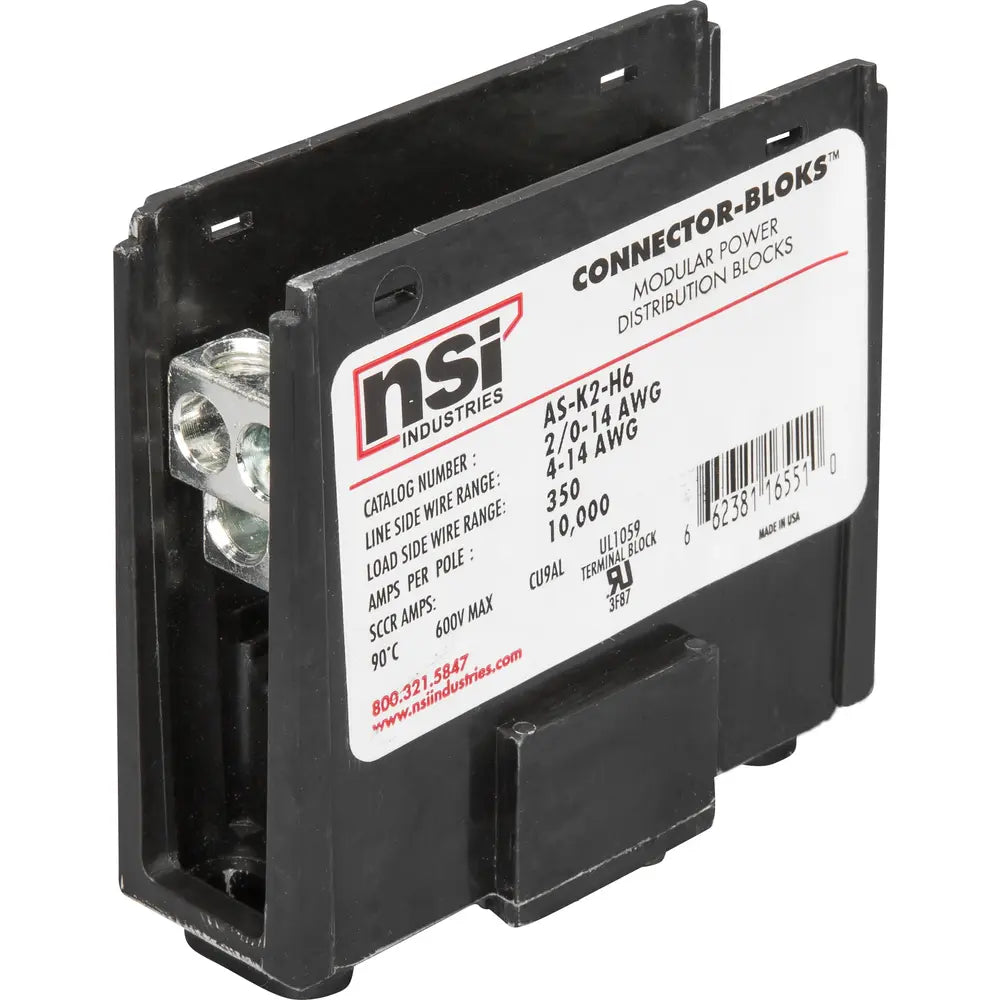

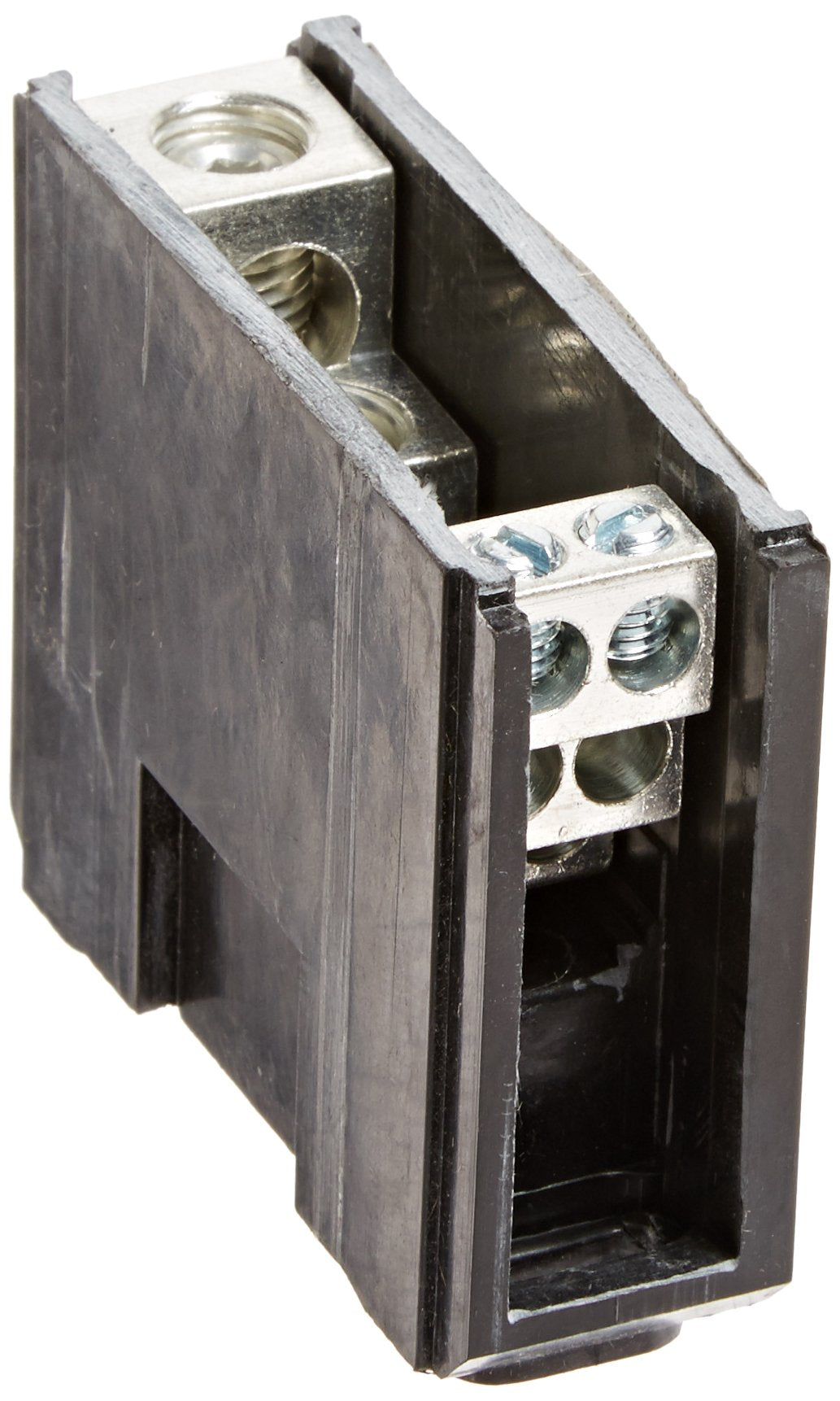

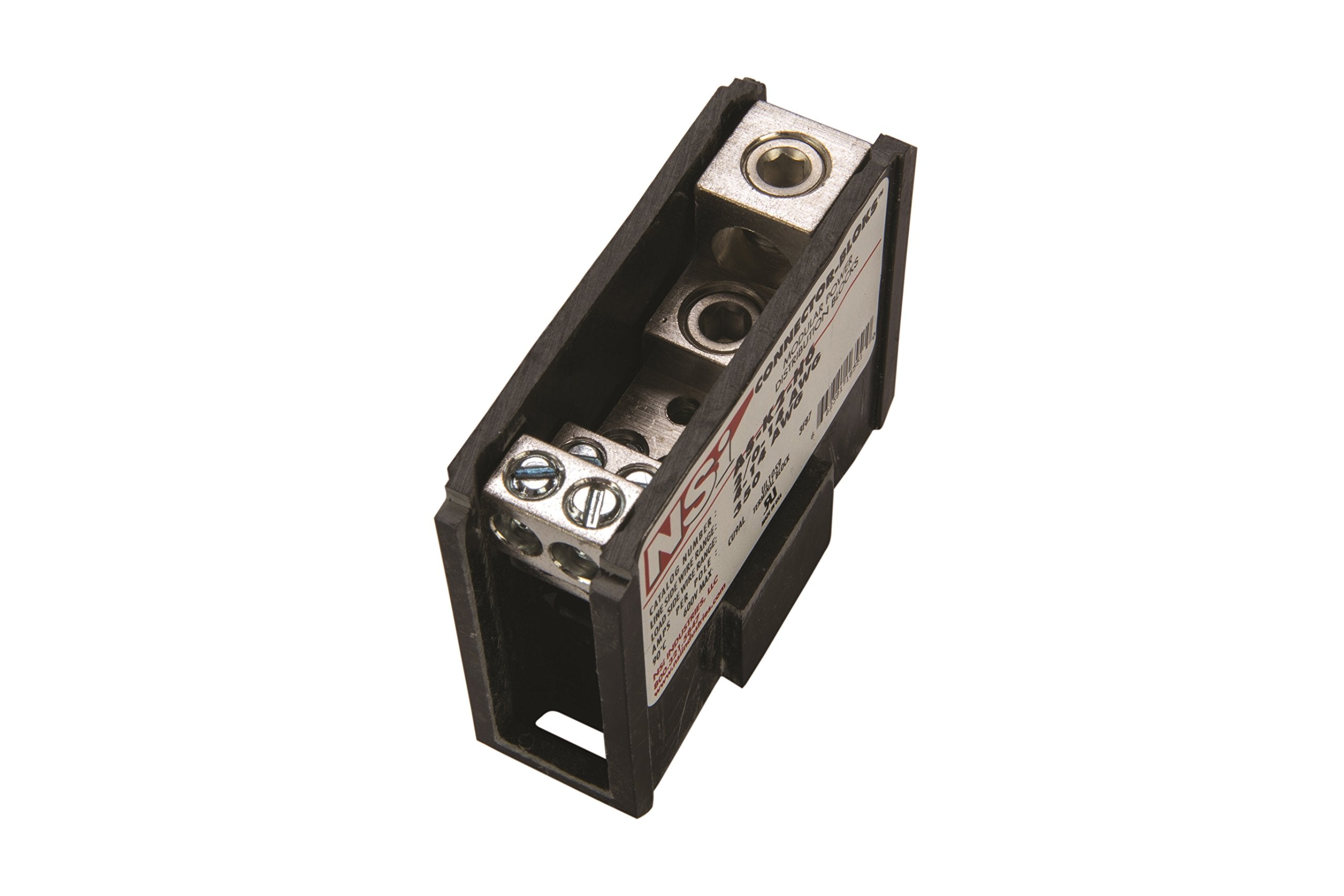

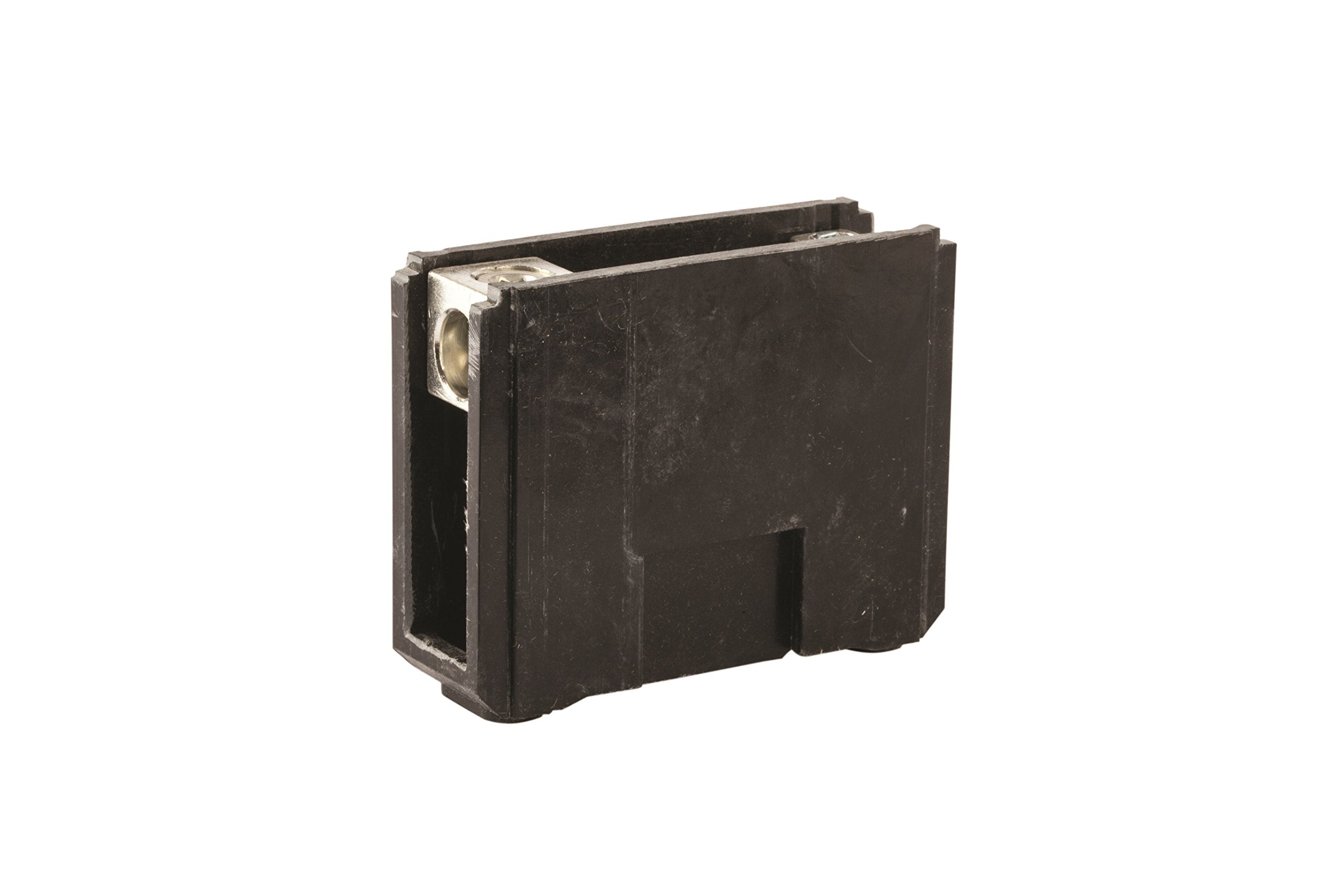

Nsi AS-K2-H6 (2) 2/0-14 Primary (6) 4-14 Secondary, Power Distribution Block

Product Description

The NSI AS-K2-H6 Power Distribution Block can stand alone or combine with other blocks. It features 2 primary and 6 secondary conductors for #14 to 2/0 and #14 to 4. The block is made of high strength, high conductivity aluminum alloy and is mounted in a high-strength glass-filled polyester base.

• Features 2 primary and 6 secondary conductors
• Wire size: (2) 14 AWG to 2/0 (Line), (6) 14 to 4 AWG (Load)
• Voltage Rating: 600 VAC

Product Highlights

This NSI power distribution block is compact, versatile, and durable, ideal for terminating, splicing, and tapping power connectors.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: AS-K2-H6
• Country of Origin: US

Technical Specifications

• Type: Power Distribution Blocks
• Color: Black
• Width: 1.04 Inches
• Height: 2.34 Inches
• Length: 2.90 Inches
• Material: Aluminum
• Mounting: 2 Mounting Holes
• Standard: UL
• Wire Size: (2) 14 AWG to 2/0 (Line), (6) 14 to 4 AWG (Load)
• Connection: Screw Compression Lugs
• Voltage Rating: 600 VAC
• Number Of Terminals: 8
• Amperage Rating: 350 A
• Number of Poles: 1
• Primary Connections/Pole: 2
• Secondary Connection/Pole: 6
• Current Rating: 350 Ampere
• Primary Opening Wire Size: 14 to 2/0 AWG
• Secondary Opening Wire Size: 14 to 4 AWG
• Conductor Material: Aluminum/Copper
• Temperature Rating: 90 Deg C
• Connector Material: Aluminum Alloy
• Housing Material: Glass Filled Polyester
• Approval: UL, CSA
• MPN: AS-K2-H6
• Brand: NSI
• Rated Voltage: 600V
