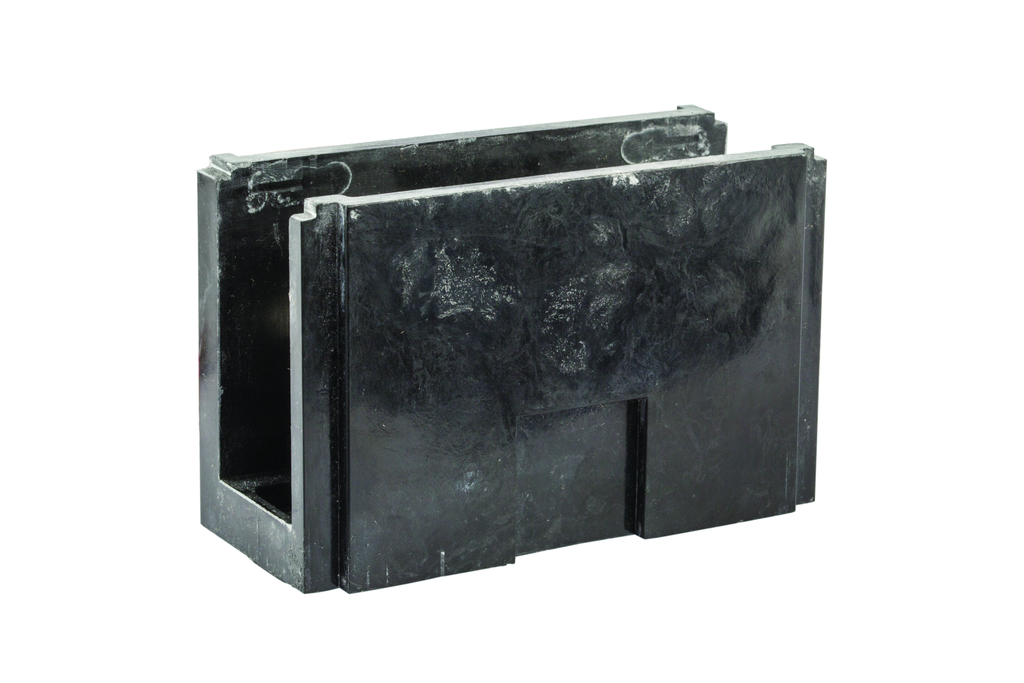

NSI AM-R1-H12 4 AWG to 500 MCM Line 14 to 4 AWG Load 13-Terminal Black Aluminum Single Primary Power Distribution Block

Product Description

The NSI AM-R1-H12 is a power distribution block designed for both primary and secondary applications. Featuring a maximum voltage of six hundred volts and an amperage of three hundred eighty amps, this distribution block supports wire sizes ranging from four AWG to five hundred kcmil. Made of high-strength aluminum alloy, it is mounted securely in a durable glass-filled polyester base. The design allows for individual use or integration with other blocks to create a multi-block setup.

• Supports multiple configurations with easy combination options.
• Designed to allow adding holes as needed.
• Constructed for durability and high conductivity.

Product Highlights

This product is ideal for terminating, splicing, and tapping power connectors in various electrical systems. The aluminum body ensures a strong connection with minimal resistance.

Product Information

Standard Information

• Brand: NSI Industries
• Country of Origin: USA

Technical Specifications

• Model Number: AM-R1-H12
• Wire Size: 4 AWG - 500 kcmil
• Voltage: 600 Volt
• Amperage: 380 Amp
• Material: Aluminum
• Base Material: Glass-Filled Polyester
• Max Temperature: 90 degrees C
• Number of Terminations: 13
