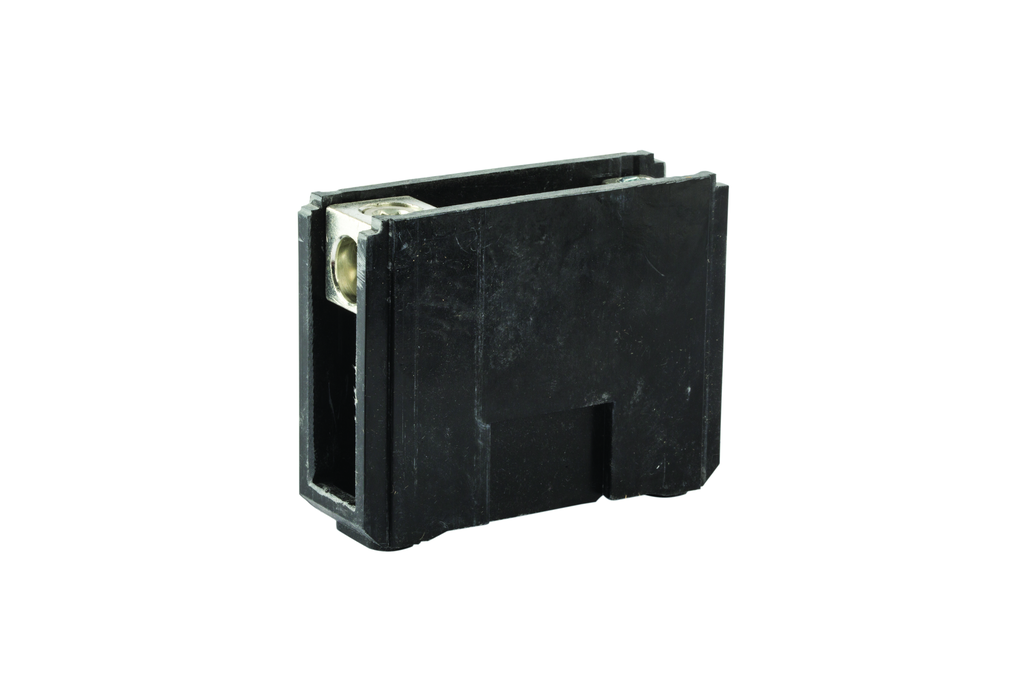

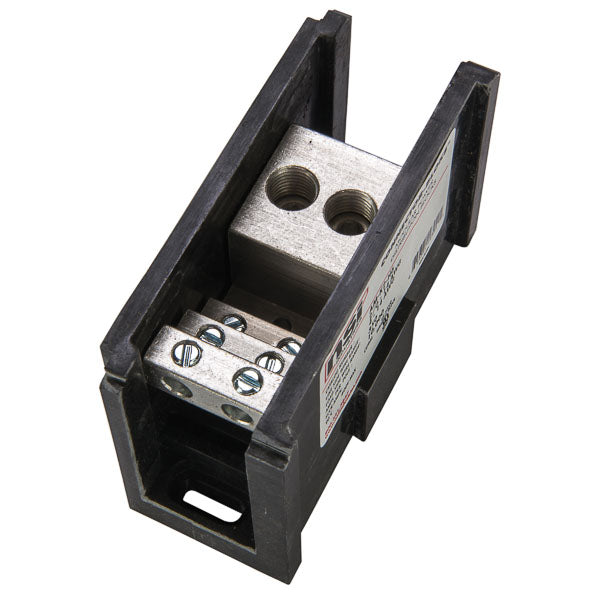

NSI AM-K2-H6 14 to 2/0 AWG Line 14 to 4 AWG Load 8-Terminal Black Aluminum Double Primary Power Distribution Block

Product Description

The NSI AM-K2-H6 is a power distribution block featuring a double primary design suitable for a variety of electrical applications. This block is compatible with wire sizes from fourteen to two/zero AWG and accommodates load connections from fourteen to four AWG. Constructed from high-conductivity aluminum alloy, it is designed for durability and efficiency. The robust glass-filled polyester base ensures optimal stability and performance.

• Rated for up to 600 volts and 350 amps, meeting strict safety standards.
• Features eight terminals for secure connections with no need for onsite assembly.
• Compact design allows for flexible arrangements in power distribution setups.

Product Highlights

The NSI AM-K2-H6 provides reliable and versatile connections for various power distribution needs.

Product Information

Standard Information

• Manufacturer: NSI Industries
• Material: Aluminum and glass-filled polyester

Technical Specifications

• Voltage Rating: 600 Volt
• Amperage Rating: 350 Amp
• Wire Size: (2) 2/0-14 AWG (Line), (6) 4-14 AWG (Load)
• Overall Size: Length four inches, width one point seven one inches, height two point six two inches
• Mounting Type: Two mounting holes
• Max Temperature: 90 degrees C
• Number of Terminations: 8
• Warranty Length: 1 year
