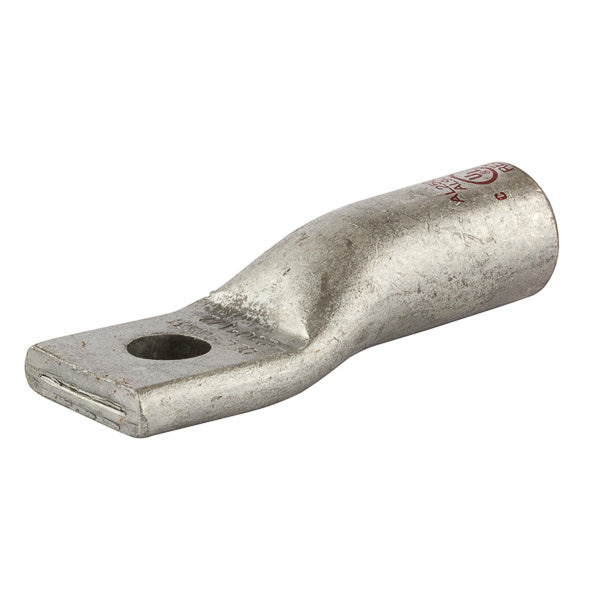

NSI AL750-48 1-Hole Compression Lug 750 kcmil Aluminum AL750-48

Product Description

The NSI AL750-48 is a reliable compression lug designed for stranded conductors. It accommodates a conductor size of 750 kcmil and is rated for 600 volts AC. The lug is made from aluminum, featuring a standard barrel for secure electrical connections. The mounting hole is half an inch in size, and the lug measures six point eleven inches in overall length.

• Suitable for 750 kcmil stranded conductors.
• Rated for 600 VAC with a half inch stud.
• Temperature rating of ninety degrees Celsius.

Product Highlights

This compression lug is ideal for connecting high-capacity cables in various electrical applications.

Product Information

Standard Information

• Brand: NSI
• Material: Aluminum

Technical Specifications

• Conductor Size: 750 kcmil
• Voltage Rating: 600 VAC
• Overall Length: 6.11 in
• Mounting Hole Size: 1/2 in
• Temperature Rating: 90 deg C
• Tongue Size: 2 in L x 2.18 in W x 0.547 in THK
• Color: Yellow
• Barrel Size: 1.03 in ID x 1.59 in OD
