Nsi AL600N AL600N Compression Lug 600 kcmil 1/2 in Stud

Product Description

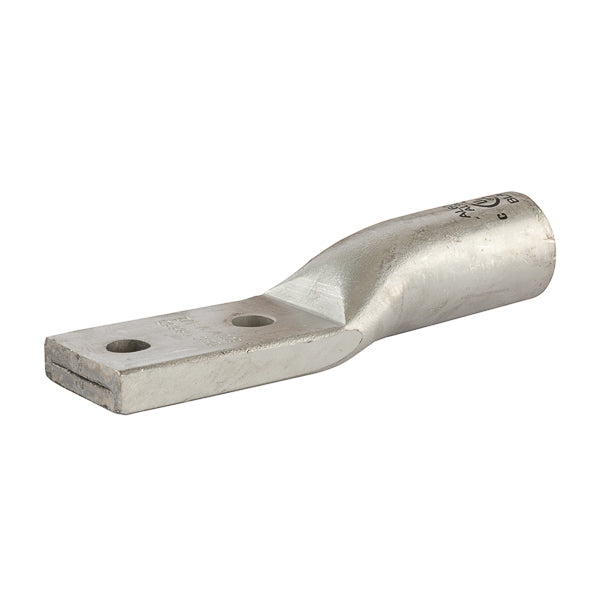

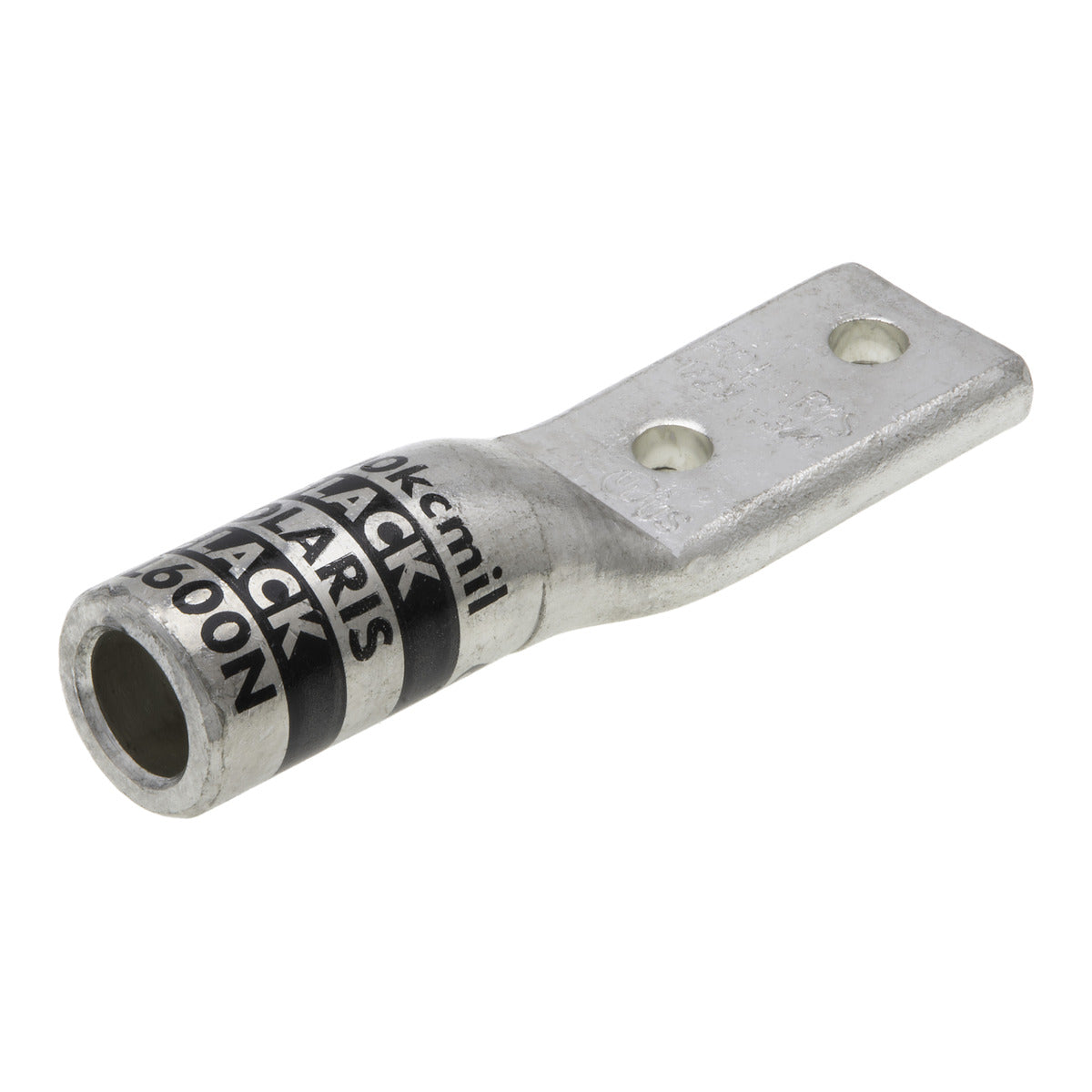

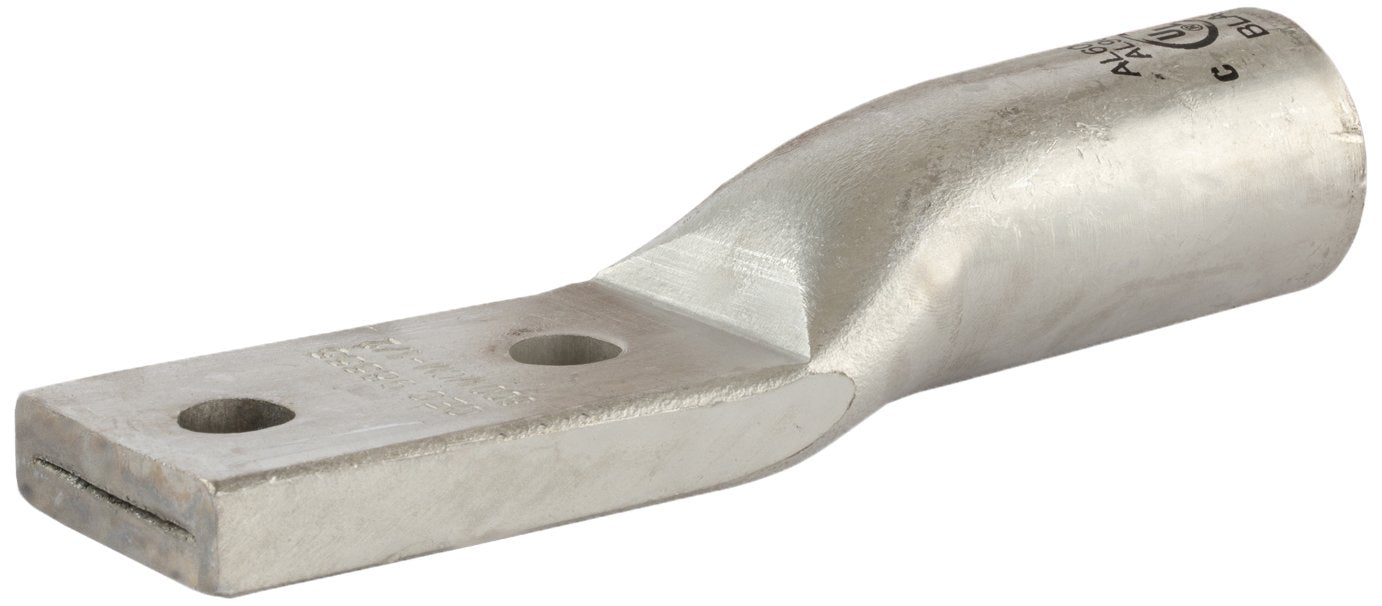

The NSI AL600N is a 2-hole standard barrel aluminum compression lug made from high conductivity aluminum tubing. This lug accommodates a 600 kcmil stranded conductor and is rated for 600 VAC. It features a 1/2 in stud and is tin plated for corrosion resistance and marked with die index and color coded for easy reference. It is suitable for terminating, splicing and tapping power connectors.

• Constructed from high conductivity aluminum tubing
• Features a center stop to ensure proper cable installation
• Tin plated for corrosion resistance and marked with die index

Product Highlights

This aluminum compression lug is ideal for power distribution, grounding, and data transmission applications. It is dual rated for both copper and aluminum conductors.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: AL600N

Technical Specifications

• Barrel Size: 0.92 in ID x 1.44 in OD
• Barrel Type: Standard
• Mounting Hole Size: 1/2 in
• Overall Length: 6.74 in
• Temperature Rating: 90 deg C
• Tongue Size: 3.11 in L x 1.95 in W x 0.507 in THK
• Type: 2-Hole
• Voltage Rating: 600 VAC
• Conductor Size: 600 kcmil
• Conductor Type: Copper, Aluminum
• Stud Size: 1/2 in
• Material: Aluminum
• Barrel Length: 2.6 in
• Pad Size: 3.12 in L x 1.96 in W x 0.51 in Thk
• Number of Pad Holes: 2
• Pad Hole Spacing: 1.75 in
• Die Index: 17/473/106
• Approval: UL 486A/B, UL (Canada and US)
• Application: Terminate, Splice, Tap Power Connectors
• Wire Size: 600 kcmil
• Finish: Tin Plated
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Tang Thickness: 0.51 in
• Tang Length: 3.12 in
• Hole Spacing: 1.75 in
• Wire Range: 600 MCM
• Assortment: Aluminum Compression Terminations
• Expanded Wire Range: 600 MCM – 250 MCM
• Die Color Code: Black
• Mounting Bolt Size: 1/2 in
• Mounting Hole Diameter: 0.51 in
• Cable Size: 600 MCM
• Mounting Type: 1/2 Mounting Holes
• Number of Holes: 2
• Standard: UL486
• Voltage: 600 Volt
• Sub Brand: Aluminum Compression
• Environmental Conditions: 90 degrees C
• Buy American Compliant: Y
• Conductor Material: Aluminum/Copper
