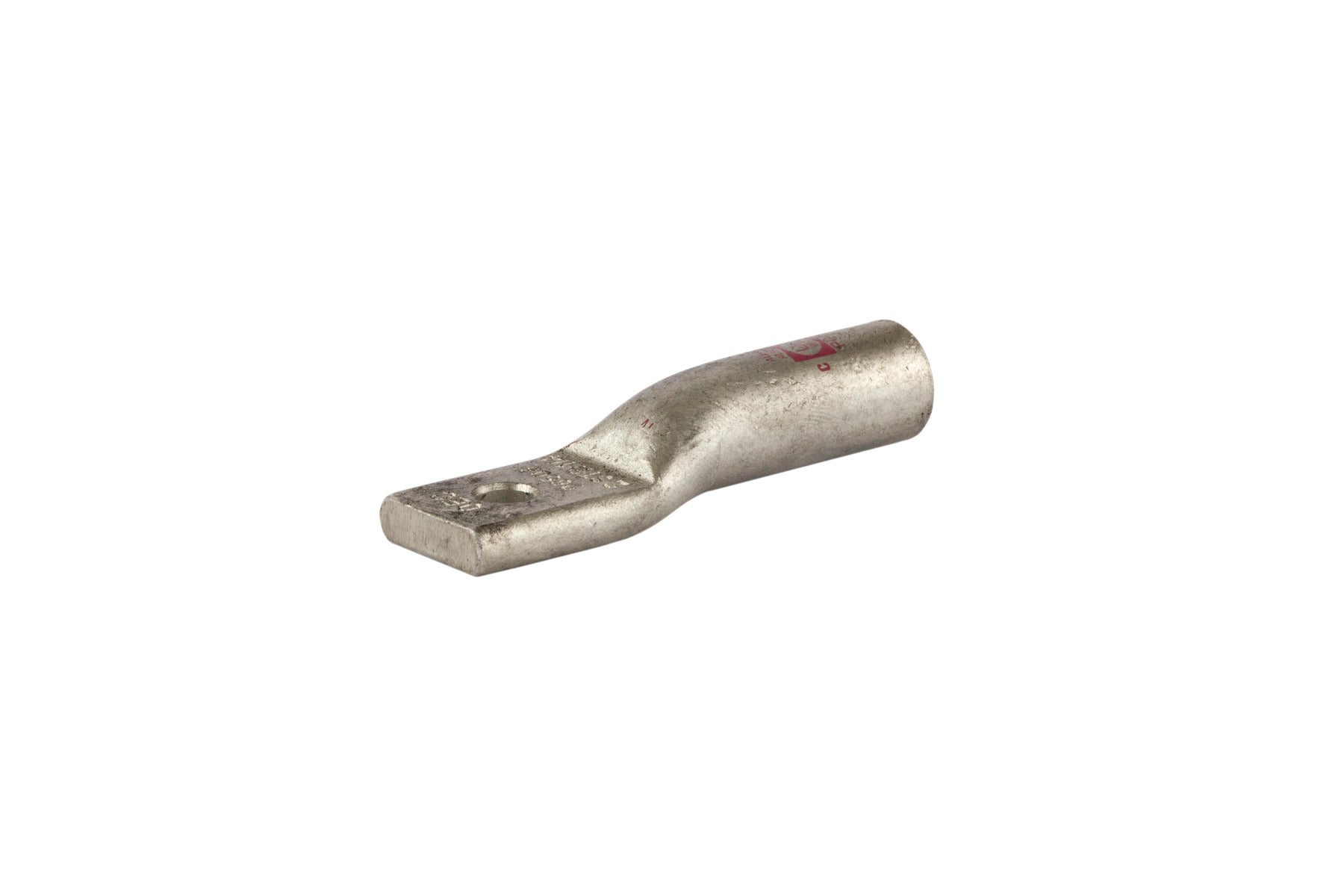

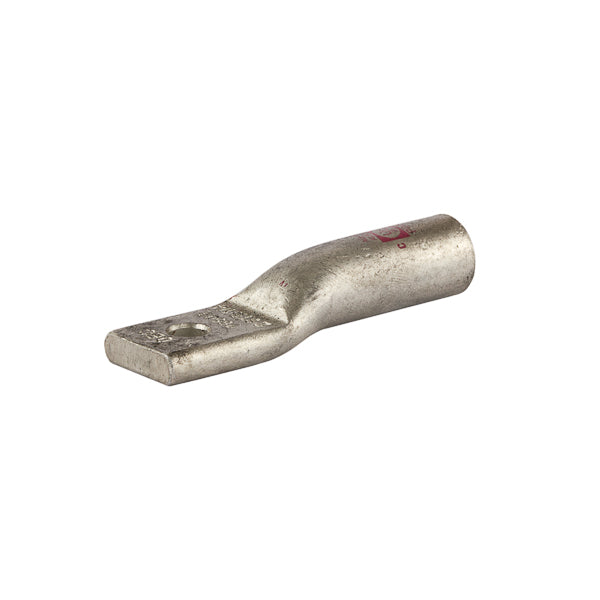

Nsi AL500-58 Polaris AL500-58 500 mcm Alum Compression Lug 5/8 Bolt Size (Al/Cu)

Product Description

The NSI AL500-58 Polaris lugs can be used in power distribution, grounding, and data transmission applications. Each connector is color-coded and can be affixed with any standard crimp tool. They feature high conductivity aluminum tubing and a corrosive resistant tin-plated finish. Dual rated for both copper and aluminum conductors.

• High conductivity aluminum tubing and corrosive resistant tin-plated finish
• Die color-coded identification
• Dual rated for both copper and aluminum conductors

Product Highlights

The NSI AL500-58 compression lug is UL listed to 35kV when properly installed and rated for B/C class wire.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: AL500-58

Technical Specifications

• Voltage Rating: 600 VAC
• Material: Aluminum
• Finish: Tin Plated
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Aluminum, Copper
• Tang Thickness: 0.47
• Tang Length: 1.5
• Wire Range: 500 MCM
• Assortment: Aluminum Compression Terminations
• Expanded Wire Range: 500 MCM – 250 MCM
• Die Color Code: Pink
• Mounting Bolt Size: 5/8 in
• Mounting Hole Diameter: 0.67
• Barrel Length: 2.5
• Type: 1-Hole Dual Rated
• Stud Size: 5/8 in
• Conductor Size: 500 kcmil
• Barrel Type: Standard
• Barrel Size: 0.838 in ID x 1.31 in OD x 2.5 in L
• Tongue Size: 1.5 in L x 1.78 in W x 0.4685 in THK
• Temperature Rating: 90 deg C
• Mounting Hole Size: 5/8 in
• Overall Length: 4.74 in
• Series: AL Series
• Length: 4.748 in
• Width: 1.787 in
• Height: 1.319 in
• Product Name: NSI 500 MCM Aluminum Compression Lug 5/8 Bolt Size Aluminum/ Copper (AL500-58)
• Brand: NSI
• SKU: AL500-58
• Mfr. Part Number: AL500-58
• Body Material: Aluminum
• UPC Code: #662381030177
• UL Listing: Yes
