Nsi AL400N Al-N Series 400 MCM 1/2 Inch

Product Description

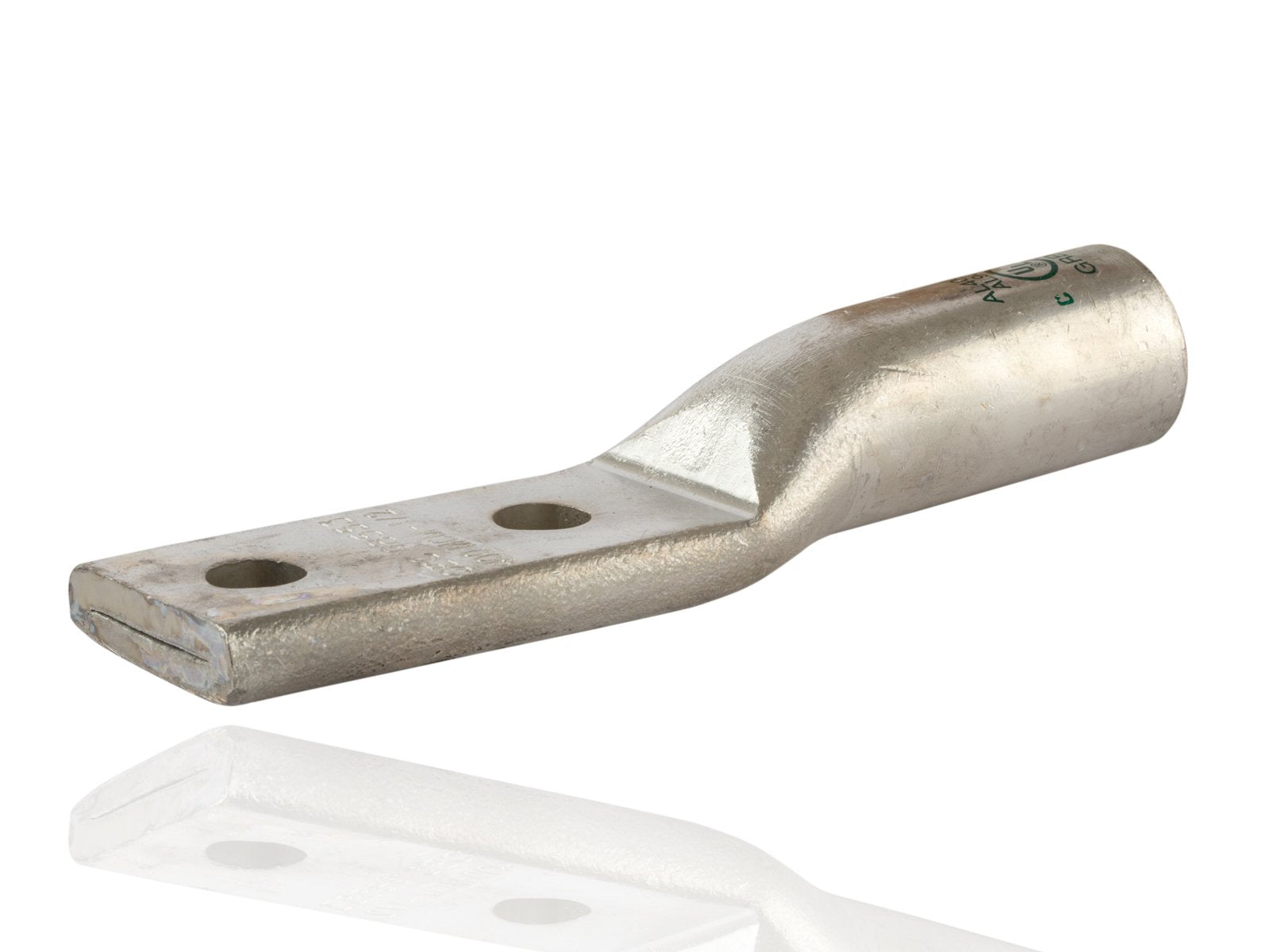

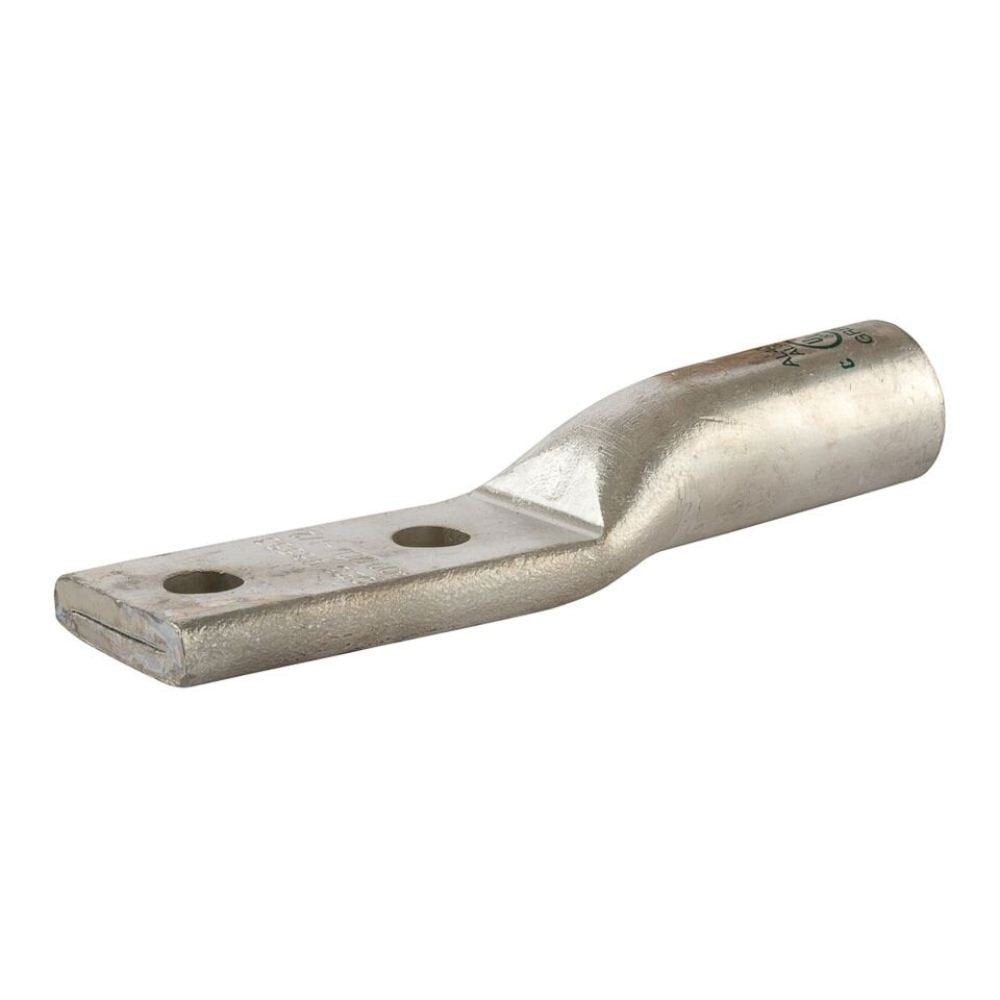

The NSI INDUSTRIES AL400N is an AL-N Series compression lug designed to terminate large, high-current wires safely. Constructed from high conductivity aluminum tubing with a tin-plated finish for corrosion resistance. It features two standard installation holes sized for 1/2" bolts and spaced 1-3/4" apart. The connector is clearly color-coded and can be affixed with any standard crimp tool.

• Terminates large, high-current wires safely
• Tin plated to provide corrosion resistance
• Dual rated for both copper and aluminum conductors

Product Highlights

This aluminum compression lug is ideal for power distribution, grounding, and data transmission applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: AL400N
• Country of Origin: India

Technical Specifications

• Type: Standard Barrel - Two Hole
• Brand: NSI Industries
• Voltage: 600 Volt
• Material: Aluminum
• Standard: UL486
• Stud Size: 1/2 in
• Sub Brand: Aluminum Compression
• Cable Size: 400 MCM
• Applications: Terminate, Splice, Tap Power Connectors
• Mounting Type: 1/2 Mounting Holes
• Number of Holes: 2 Hole
• Environmental Conditions: 90 degrees C
• Series: AL-N Series
• Die Color: Green
• Color Family: Green
• Stud Hole Spacing: 1.75 in.
• Wire Size: 400
• Width: 1.61"
• Length: 6.43"
• Thickness: 0.42"
• Outside Diameter: 1.19"
• Inside Diameter: 0.76"
• Connector Type [Specifications]: Standard Barrel
• Voltage Rating: 35kV
• Finish: Tin Plated
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Aluminum, Copper
• Tang Thickness: 0.42
• Tang Length: 3.12
• Hole Spacing: 1.75
• Wire Range: 400 MCM
• Assortment: Aluminum Compression Terminations
• Expanded Wire Range: 400 MCM ">– 4/0 AWG
• Die Color Code: Green
• Mounting Bolt Size: 1/2
• Mounting Hole Diameter: 0.51
• Barrel Length: 2.3
