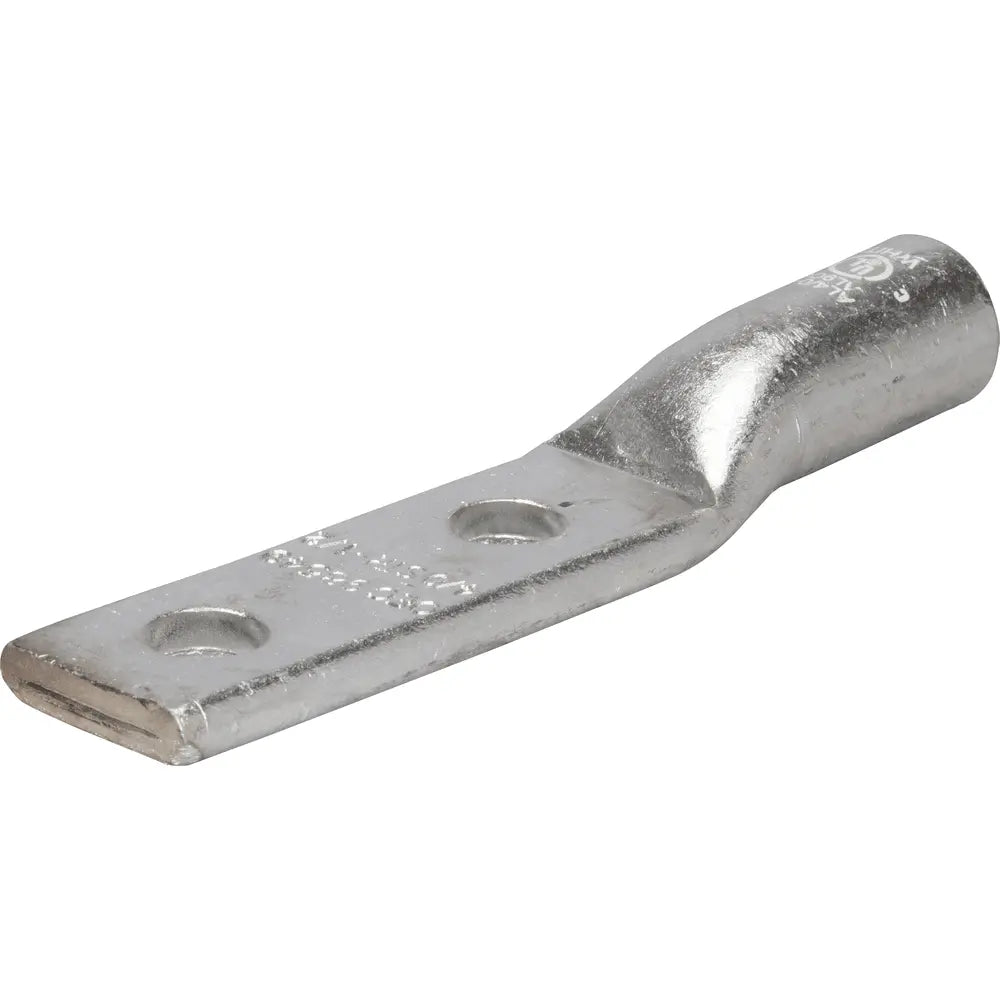

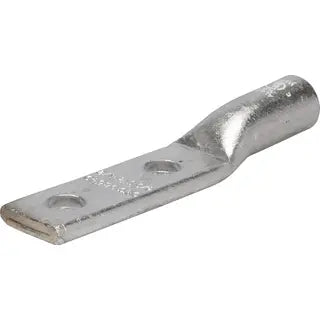

NSI AL4/0N Polaris Double-Hole Aluminum Barrel Compression Lug, 4/0 1/2 Mounts

Product Description

The NSI AL4/0N is a double-hole aluminum barrel compression lug designed for terminating large, high-current wires. This lug is suitable for applications with a maximum voltage rating of 35kV when installed according to the manufacturer's specifications.

• Constructed from high conductivity aluminum tubing
• Electro-tin plated for enhanced corrosion resistance
• Pre-filled with an oxide inhibitor and capped with a color-coded cap

Product Highlights

This compression lug is color-coded and includes die index information for easy identification. The mounting is bolt-on, ensuring a reliable connection for various electrical setups.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSI

Technical Specifications

• UPC: 662381031037
• Type: Compression Lugs
• Width: 1.14 Inches
• Height: 0.84 Inches
• Length: 5.24 Inches
• Weight: 2.16 Pounds
• Material: Aluminum
• Mounting: Bolt-On
• Standard: UL486, cULus
• Cable Size: 4/0
• Color Code: White
• Connection: Compression
• Insulation: Non-Insulated
• Stock Code: 0043-1526
• Voltage Rating: 600 VAC
• Number Of Holes: 1
• Country of Origin: IN
• Environmental Conditions: Dry Location
