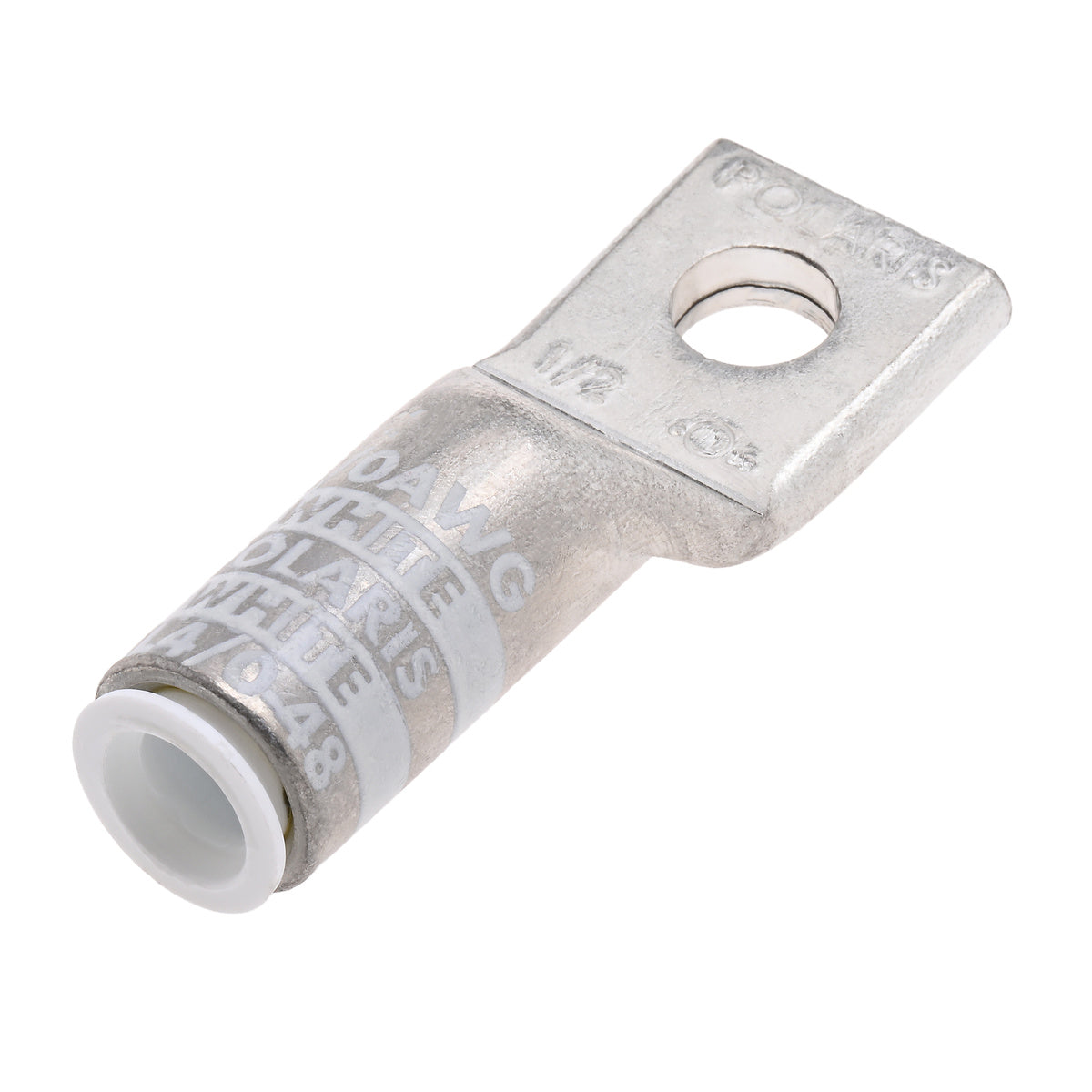

Nsi AL4/0-48 Polaris 4/0 Awg Alum Compression Lug, 1/2 Bolt Size (Al/Cu)

Product Description

The NSI AL4/0-48 Polaris lug is suitable for use in power distribution, grounding, and data transmission applications. Each connector is color-coded and can be affixed with any standard crimp tool. It features high conductivity aluminum tubing and a corrosive-resistant tin-plated finish. Dual rated for both copper and aluminum conductors.

• High conductivity aluminum tubing and corrosive resistant tin-plated finish
• Die color-coded identification
• Dual rated for both copper and aluminum conductors

Product Highlights

The NSI AL4/0-48 is UL listed to 35kV when properly installed and rated for B/C class wire.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: AL4/0-48

Technical Specifications

• Voltage Rating: 35kV
• Material: Aluminum
• Finish: Tin Plated
• UPC: 662381030115
• Ul Standard: UL 486A-486B
• Huskie Die: HT41EZ (2 CRIMPS); CD1A (2 CRIMPS)
• Huskie Tools: EP510C
• Tb Die: 15534 (2 CRIMPS)
• Tb Tools: TBM-15, TBM-14M, 13100A
• Burndy Die: U28ART (2 CRIMPS)
• Burndy Tools: Y-35, T750, PAT750
• Ilsco Die: KA12-4/0 (2 CRIMPS)
• Ilsco Tools: ILC-12, ILC-12H, ILC-15
• Greenlee Die: KA12-4/0 (2 CRIMPS)
• Greenlee Tools: EK, RK HK1240 Series
• Nsi Die: KA12-4/0 (2 CRIMPS)
• Nsi Tools: N1240, N12ID
• Wire Cable Class: Class B, Class C
• Conductor Type: Stranded
• Tang Thickness: 0.29
• Tang Length: 1.31
• Wire Range: 4/0 AWG
• Assortment: Aluminum Compression Terminations
• Expanded Wire Range: 4/0 AWG ">– 1 AWG
• Die Color Code: White
• Mounting Bolt Size: 1/2 in
• Mounting Hole Diameter: 0.51
• Barrel Length: 1.4
• Barrel Size: 0.551 in ID x 0.838 in OD
• Barrel Type: Standard
• Overall Length: 3.42 in
• Temperature Rating: 90 deg C
• Tongue Size: 1.307 in L x 1.14 in W x 0.287 in THK
• Type: 1-Hole
• Voltage: 600 VAC
• Conductor Size: 4/0 AWG
• Stud Size: 1/2 in
