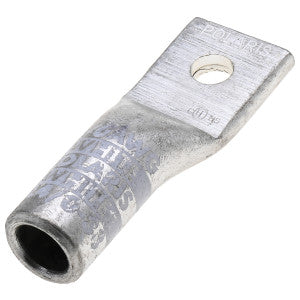

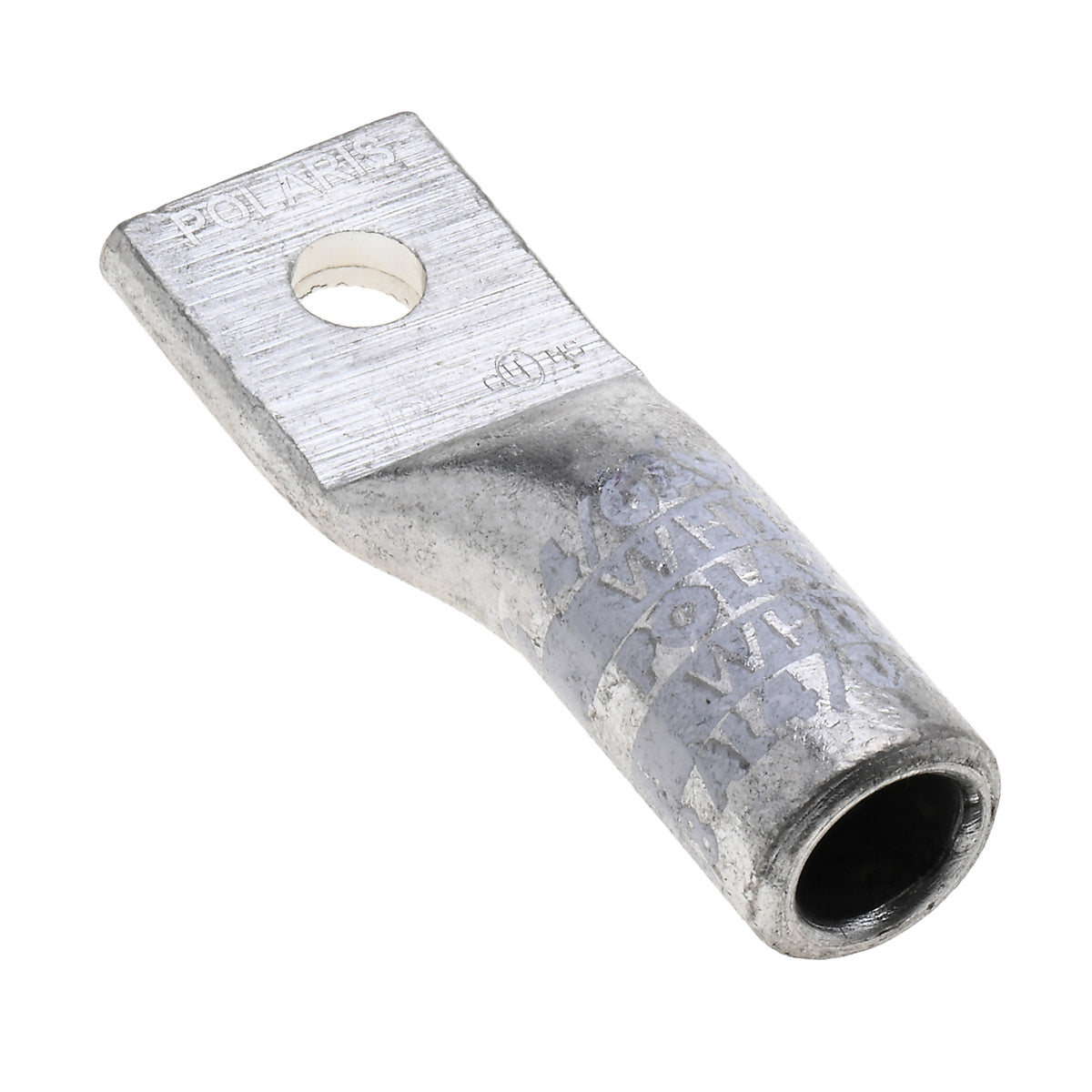

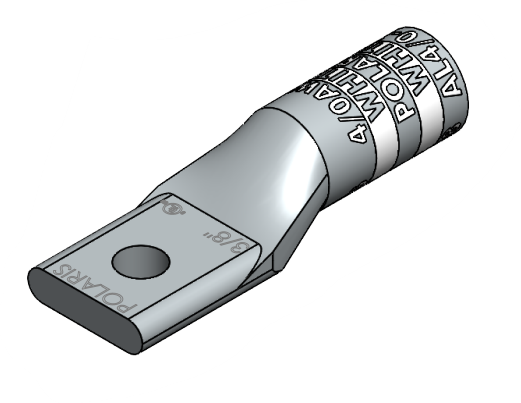

Nsi AL4/0-38 Aluminum Compression Lug, 4/0 AWG, 3/8 inches Bolt Size

Product Description

The NSI AL4/0-38 aluminum compression lug is designed for terminating wires in power distribution, grounding, and data transmission applications. Constructed from high-conductivity aluminum with a tin-plated finish, it offers corrosion resistance. This lug is dual-rated for both copper and aluminum conductors and UL listed to 35kV when properly installed.

• High conductivity aluminum tubing and corrosive resistant tin-plated finish
• Die color-coded identification
• Dual rated for both copper and aluminum conductors

Product Highlights

This aluminum compression lug ensures a reliable connection for professionals, featuring a one-piece construction and closed barrel design for protection against moisture and contaminants.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: AL4/0-38
• Country of Origin: IN - India

Technical Specifications

• Voltage Rating: 35kV
• Material: Aluminum
• Finish: Tin Plated
• UPC: 662381030108
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Aluminum, Copper
• Tang Thickness: 0.29
• Tang Length: 1.31
• Wire Range: 4/0 AWG
• Expanded Wire Range: 4/0 AWG – 1 AWG
• Die Color Code: White
• Mounting Bolt Size: 3/8
• Mounting Hole Diameter: 0.41
• Barrel Length: 1.4
• Number of Ports: 1
• Application: Terminate, Splice, Tap Power Connectors
• No. of Holes: 1
• Rated Voltage: 600 V
• Stud Size: 3/8 in.
• Lug Wire Size: 4/0 AWG
• Color Code: White
• Standards: cULus
• Connector Type: Standard Barrel
• Type: Standard Barrel - One Hole
• Environmental Conditions: 90 C
• Mounting: 3/8 Mounting Hole
• Barrel Size: Standard
• Cable Size: 4/0 AWG
• Width: 1.15"
• Length: 3.429"
• Barrel Outside Diameter: 0.84
• Conductor Cu Size Range: 250 MCM-6 AWG
• Barrel Inside Diameter: 0.55
• Conductor Al Size Range: 250 MCM-6 AWG
• Item: One-Hole Compression Lug
• For Conductor Material: Copper
• Temp Rating: 90C, AL9CU
• Al Conductor Max Amp: 230
• Cu Conductor Max Amp: 290
• Ul File No: E155027
• Max Torque: 360
• Mounting Hole Size: 3/8
• Die Color Coded: White
