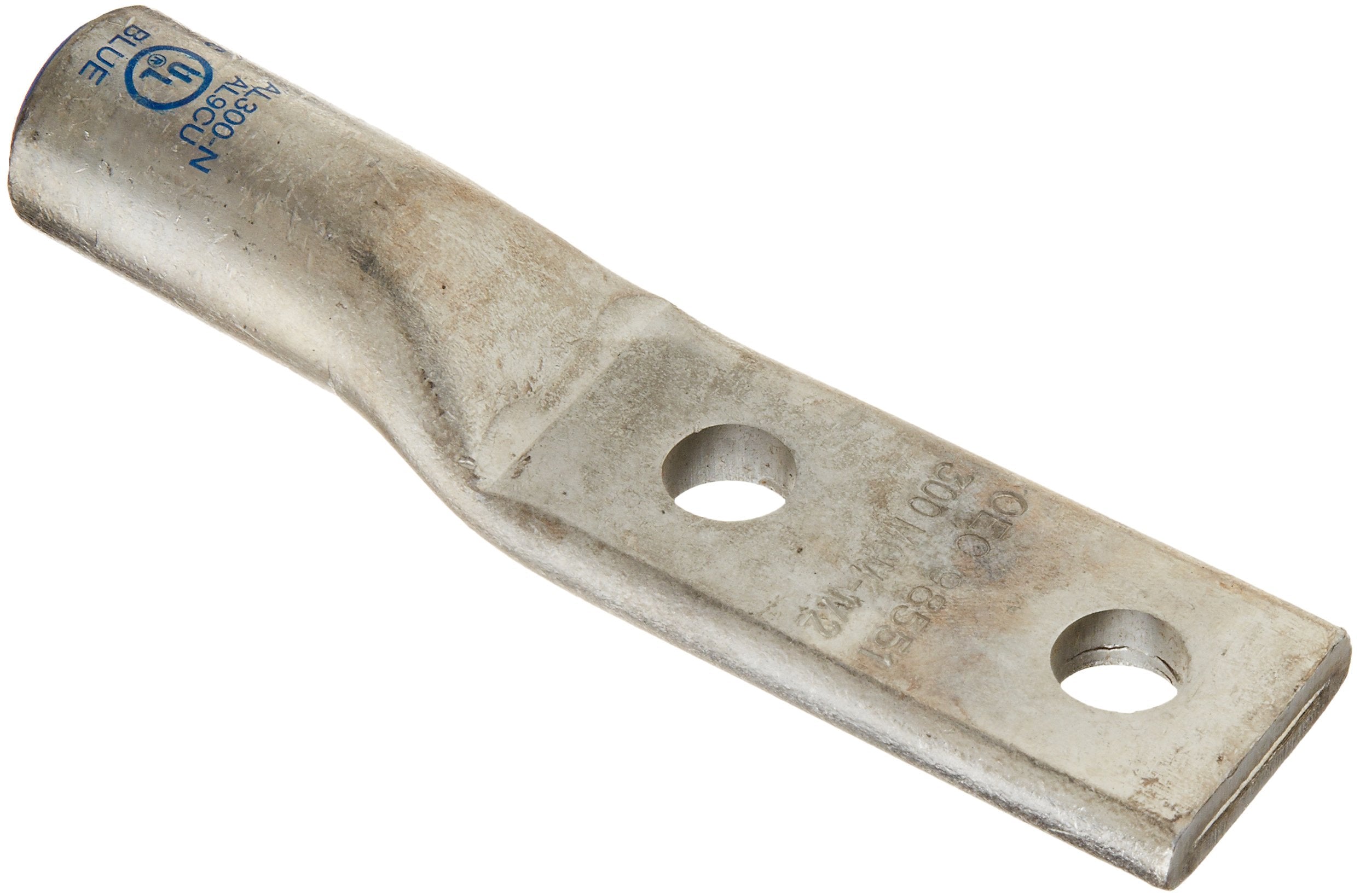

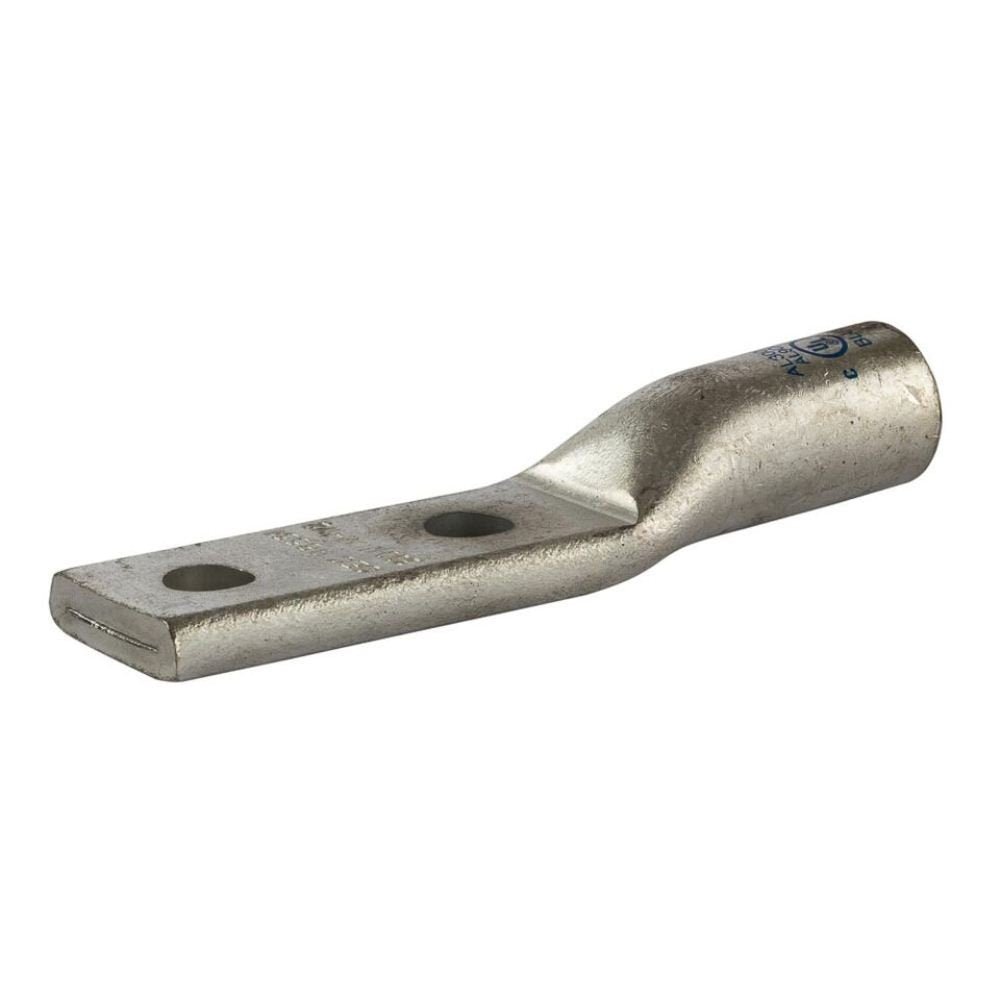

Nsi AL300N AL-N 2-Hole Dual Rated Compression Lug 300 kcmil 1/2 in Stud

Product Description

The NSI AL300N is a 2-hole dual rated compression lug designed for aluminum or copper stranded conductors. This AL-N series lug accommodates a 300 kcmil conductor and features a 1/2 inch stud. It is rated for 600 V and is constructed from high conductivity aluminum tubing with electro tin plating for corrosion resistance. The lug is pre-filled with oxide inhibitor and marked with die index information.

• Produced from high conductivity aluminum tubing
• Electro tin plated for corrosion resistance
• Color coded and marked with die index information
• Pre-filled with oxide inhibitor and capped with color coded cap

Product Highlights

This NSI compression lug is dual rated for aluminum and copper conductors, ensuring versatile use in power distribution, grounding, and data transmission applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: AL300N

Technical Specifications

• Barrel Size: 0.65 in ID x 1.01 in OD x 1.598 in L
• Barrel Type: Standard
• Mounting Hole Size: 1/2 in
• Overall Length: 5.5 in
• Series: AL-N
• Hole Spacing: 1.75 in
• Temperature Rating: 90 deg C
• Tongue Size: 3.118 in L x 1.37 in W x 0.347 in THK
• Type: 2-Hole Dual Rated
• Voltage Rating: 600 V
• Conductor Size: 300 kcmil
• Conductor Type: Aluminum/Copper Stranded
• Stud Size: 1/2 in
• Material: Aluminum
• Barrel Length: 1.6 in
• Pad Size: 3.12 in L x 1.37 in W x 0.35 in Thk
• Number of Pad Holes: 2
• Approval: UL 486A/B, UL (Canada and US)
• Inner Diameter: 0.65 in
• Outer Diameter: 1.01 in
• Application: Terminate, Splice, Tap Power Connectors
• Wire Size: 300
• Width: 1.37 in
• Length: 5.50 in
• Thickness: 0.35 in
• Outside Diameter (OD): 1.01 in
• Inside Diameter (ID): 0.65 in
• Finish: Tin Plated
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Tang Thickness: 0.35 in
• Tang Length: 3.12 in
• Wire Range: 300 MCM
• Mounting Bolt Size: 1/2 in
• Mounting Hole Diameter: 0.51 in
• Cable Size: 300 MCM
• Number of Holes: 2
• Standard: UL486
• Voltage: 600 V
• Brand: NSI Industries
• Sub Brand: Aluminum Compression
