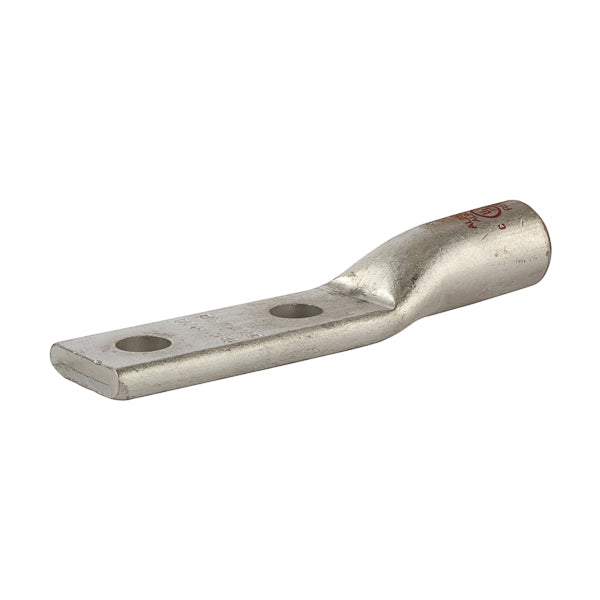

NSI AL250N AL-N 2-Hole Dual Rated Compression Lug 250 kcmil

Product Description

The NSI AL250N is a compression lug designed for aluminum and copper stranded conductors of size 250 kcmil. This product features a dual-rated design suitable for various applications. It operates effectively at a voltage rating of six hundred volts and has a stud size of one half inch.

• Two hole configuration for ease of installation.
• Standard barrel dimensions with a specific length and width.
• Constructed to withstand temperatures up to ninety degrees Celsius.

Product Highlights

Ideal for installing aluminum and copper conductors, ensuring a reliable connection with correct sizes for industry standards.

Product Information

Standard Information

• Manufacturer: NSi Industries
• Brand: NSI

Technical Specifications

• Barrel Size: 0.59 in ID x 0.92 in OD x 1.5 in L
• Barrel Type: Standard
• Color: Red
• Mounting Hole Size: 1/2 in
• Overall Length: 5.3 in
• Series: AL-N
• Specifications: 1-3/4 in Hole Spacing
• Temperature Rating: 90 deg C
• Tongue Size: 3.118 in L x 1.25 in W x 0.319 in THK
• Type: 2-Hole Dual Rated
• Voltage Rating: 600 V
• Conductor Size: 250 kcmil
• Conductor Type: Aluminum/Copper Stranded
• Stud Size: 1/2 in
• Material: Aluminum
