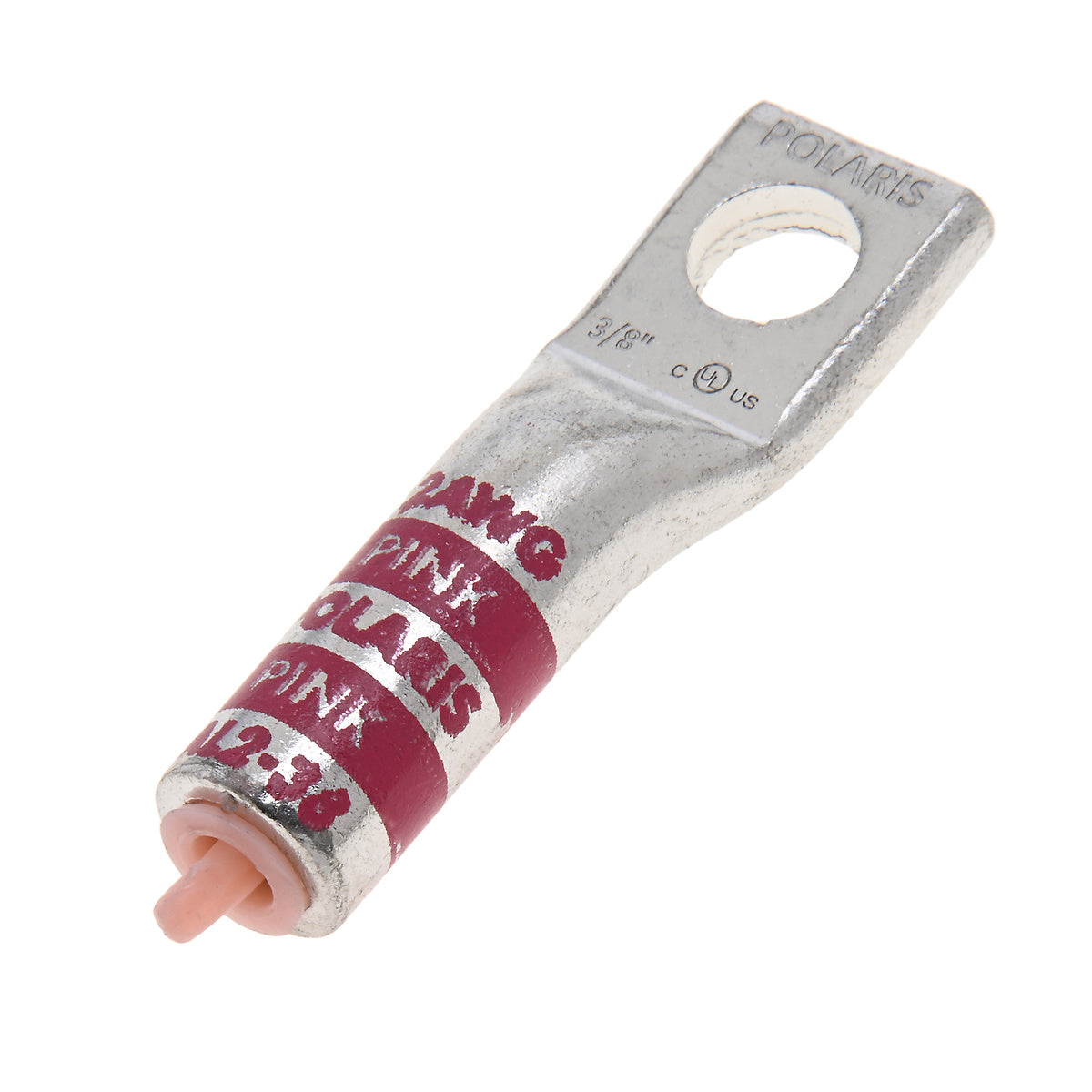

Nsi AL2-38 Polaris 2 Awg Alum Compression Lug, 3/8 inches Bolt Size

Product Description

The NSI AL2-38 Polaris lug is suitable for a wide range of applications, including power distribution, grounding, and data transmission. Each connector is color-coded and can be affixed with any standard crimp tool. It features high conductivity aluminum tubing and a corrosive-resistant tin-plated finish.

• High conductivity aluminum tubing and corrosive resistant tin-plated finish
• Die color-coded identification
• Dual rated for both copper and aluminum conductors

Product Highlights

UL listed to 35kV when properly installed to cable manufacturer’s specifications. UL/cULus listed and rated for B/C class wire.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: AL2-38

Technical Specifications

• Voltage Rating: 35kV
• Material: Aluminum
• Finish: Tin Plated
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Aluminum, Copper
• Tang Thickness: 0.22
• Tang Length: 1.26
• Wire Range: 2 AWG
• Expanded Wire Range: 2 AWG ">– 6 AWG
• Die Color Code: Pink
• Mounting Bolt Size: 3/8
• Mounting Hole Diameter: 0.41
• Barrel Length: 1.2
