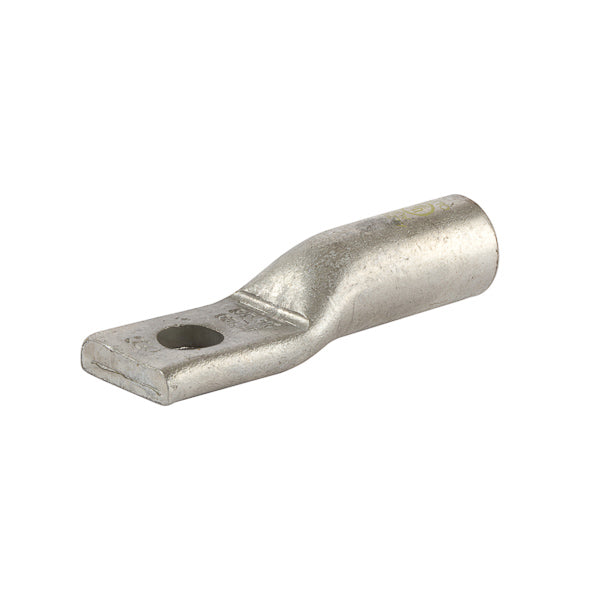

NSI AL2/0-38 Compression Lug 2/0 AWG 1-Hole AL2/0-38 NI

Product Description

The NSI AL2/0-38 is a compression lug made from aluminum, designed for stranded conductors with a size of two aught (2/0 AWG). It features a one-hole configuration and is suited for applications requiring a 3/8 inch stud size connection.

• Standard barrel design for optimal performance.
• Compatible with 600 volt alternating current systems.
• Constructed from high conductivity aluminum for durability.

Product Highlights

This compression lug is versatile for various electrical installations, ensuring reliable connections.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: AL2/0-38

Technical Specifications

• Barrel Size: 0.44 in ID x 0.689 in OD
• Barrel Type: Standard
• Color: Olive
• Dimensions: 0.937 in W
• Mounting Hole Size: 3/8 in
• Overall Length: 2.8 in
• Temperature Rating: 90 deg C
• Tongue Size: 1.11 in L x 0.937 in W x 0.24 in THK
• Type: 1-Hole
• Voltage Rating: 600 VAC
• Conductor Size: 2/0 AWG
• Conductor Type: Stranded
• Stud Size: 3/8 in
• Material: Aluminum
