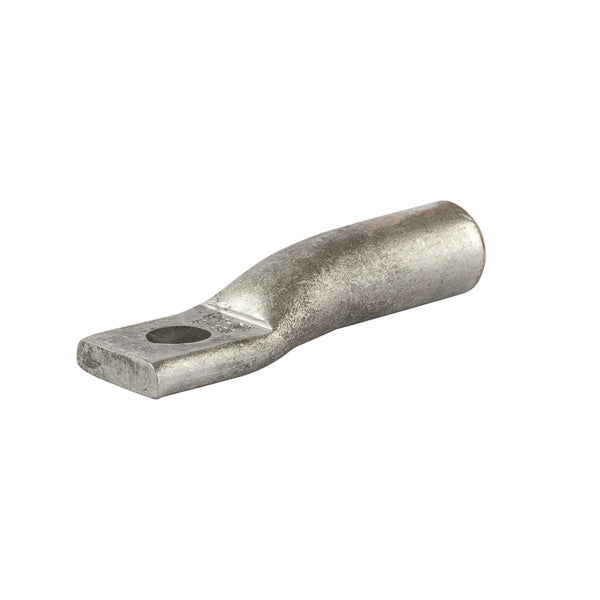

NSI AL1/0-38 1-Hole Compression Lug 600 VAC (1 EACH)

Product Description

The NSI AL1/0-38 is a 1-Hole Compression Lug designed for 1/0 AWG stranded conductors. This lug is suitable for use in various wiring applications requiring reliable electrical connections.

• Compatible with 1/0 AWG stranded conductors
• Rated for 600 VAC
• Includes a 3/8 inch mounting hole

Product Highlights

The NSI AL1/0-38 Compression Lug is made from aluminum and comes with a standard barrel type. It ensures a secure connection with excellent conductivity and durability.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Type: 1-Hole
• Material: Aluminum
• Barrel Size: 0.38 inches ID x 0.63 inches OD
• Barrel Type: Standard
• Color: Tan
• Dimensions: 0.84 inches wide
• Mounting Hole Size: 3/8 inches
• Overall Length: 2.81 inches
• Conductor Size: 1/0 AWG
• Voltage Rating: 600 VAC
• Temperature Rating: 90 degrees C
• Tongue Size: 0.929 inches long x 0.84 inches wide x 0.24 inches thick
• Stud Size: 3/8 inches
