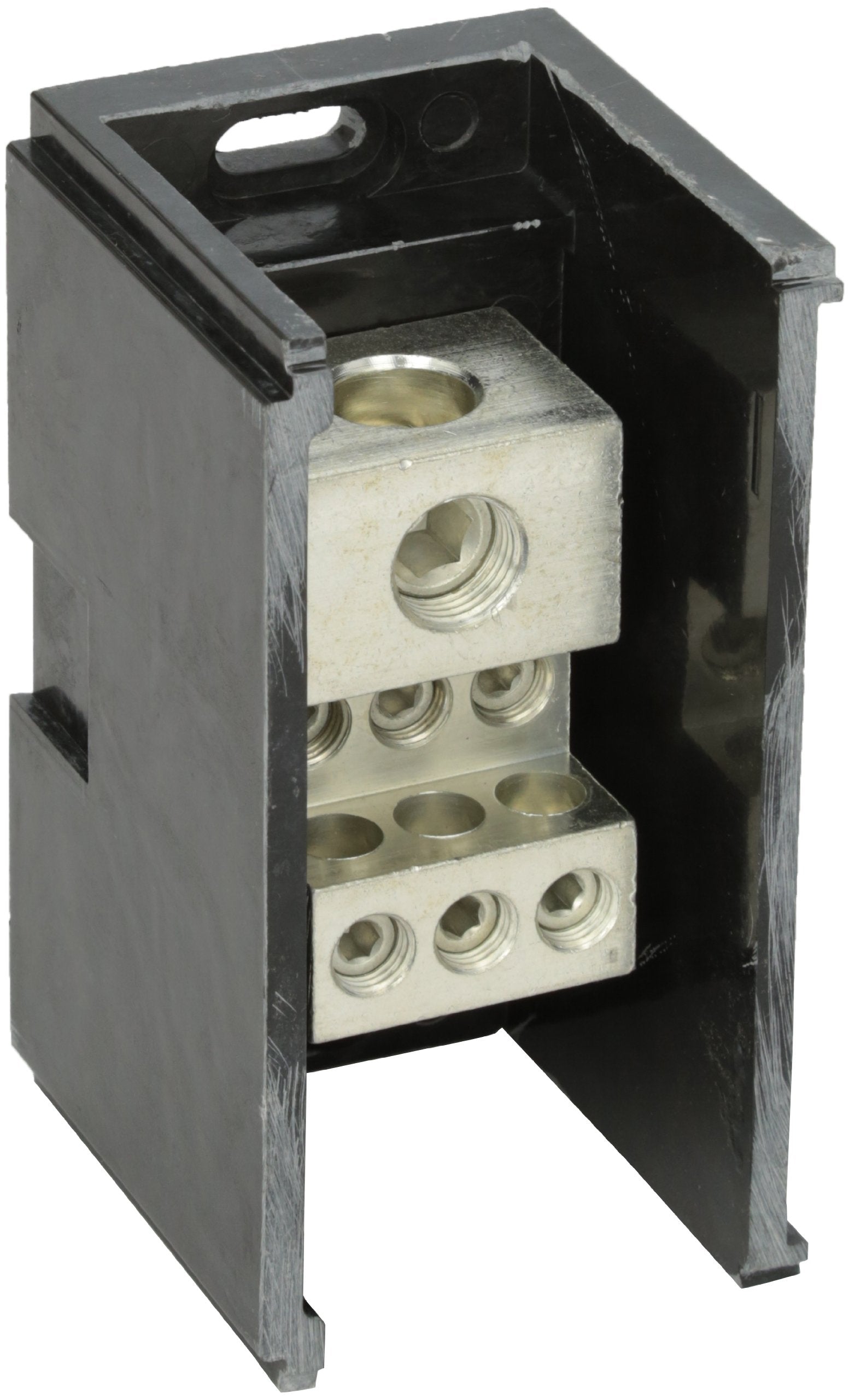

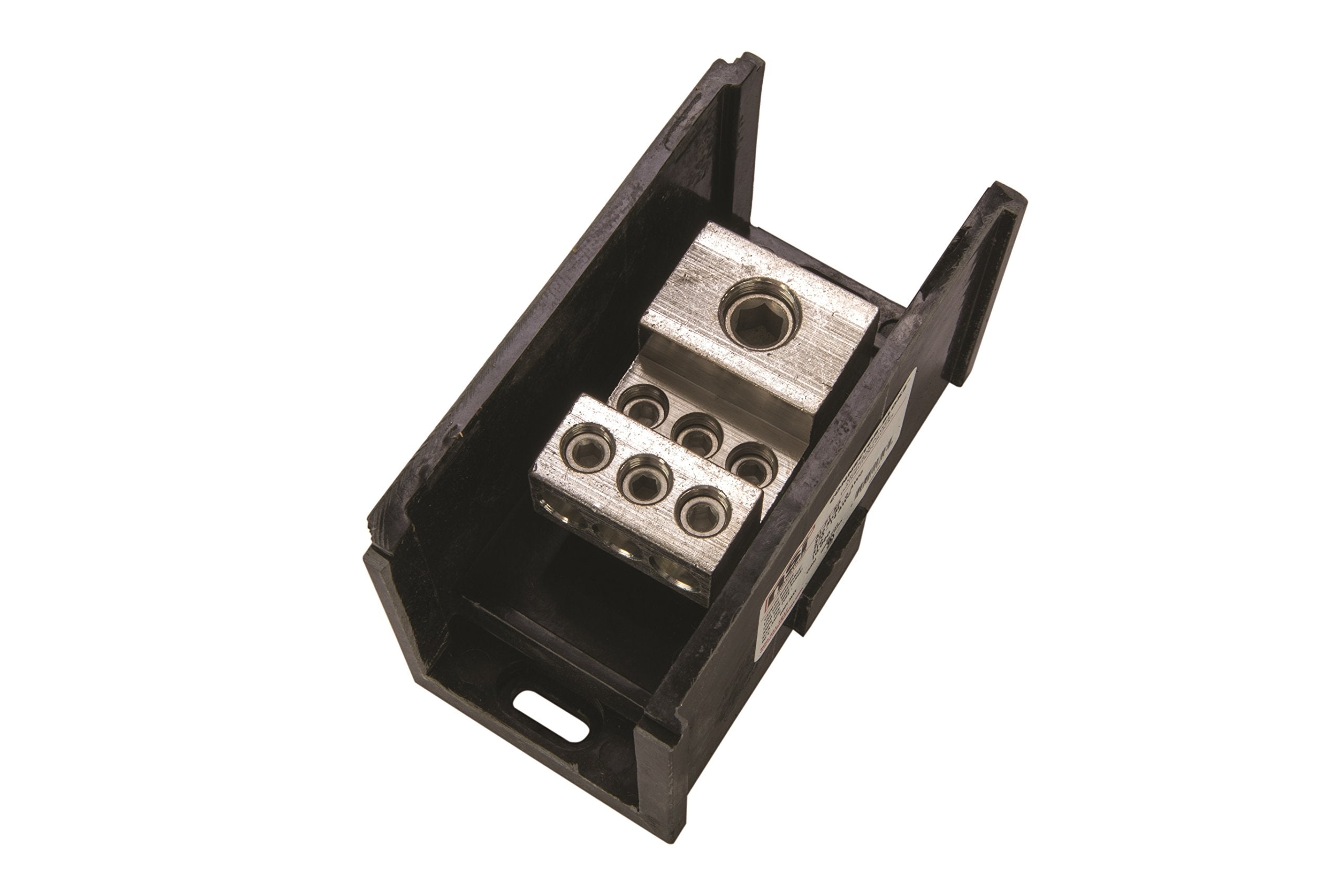

Nsi AL-P1-K6 Connector Bloks Power Distribution Block 600 VAC 310 A

Product Description

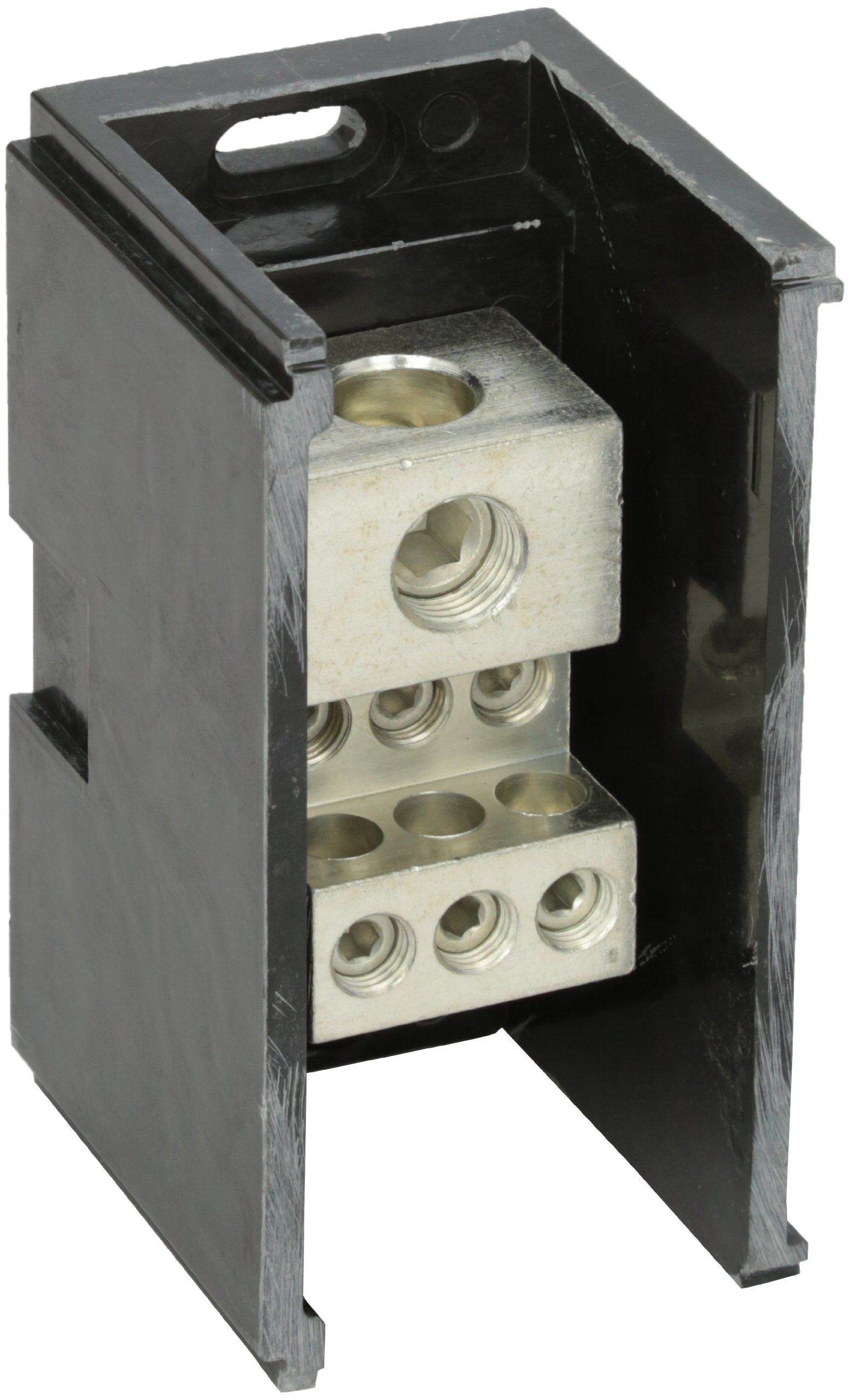

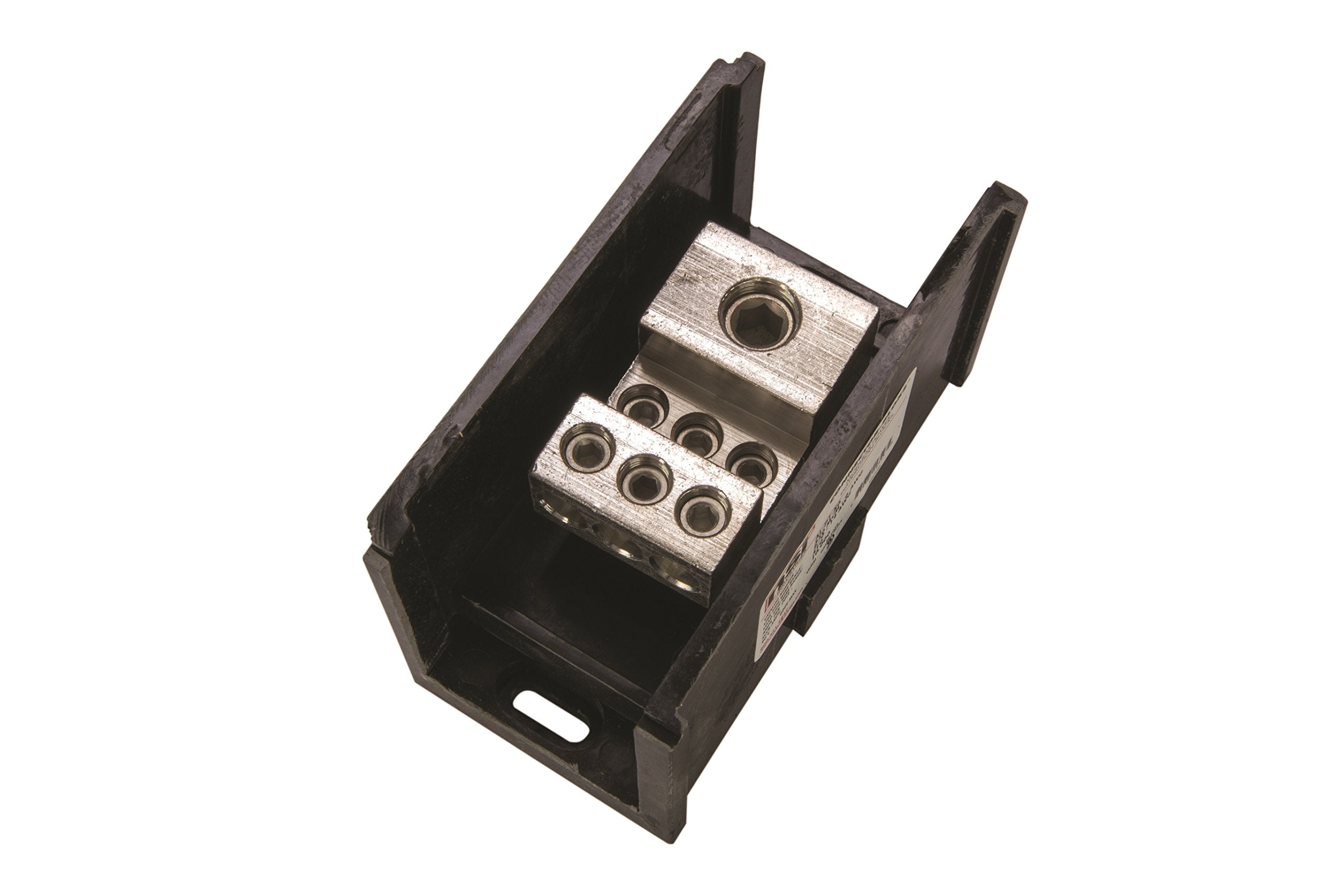

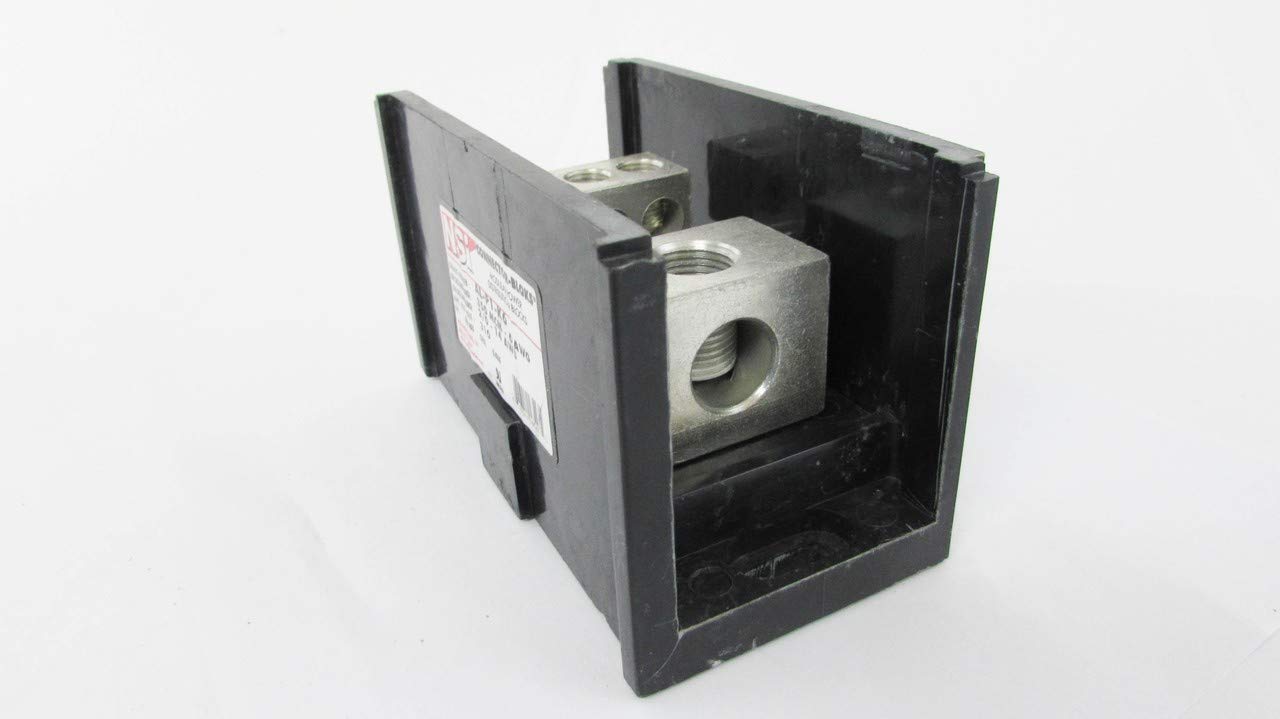

The NSI AL-P1-K6 Connector Bloks™ Power Distribution Block is a single primary block rated for 600 VAC and 310 A. Constructed from high-strength, high-conductivity aluminum, this 1-pole block features 1 primary connection and 6 secondary connections per pole. It accommodates wire sizes from 6 AWG to 350 kcmil.

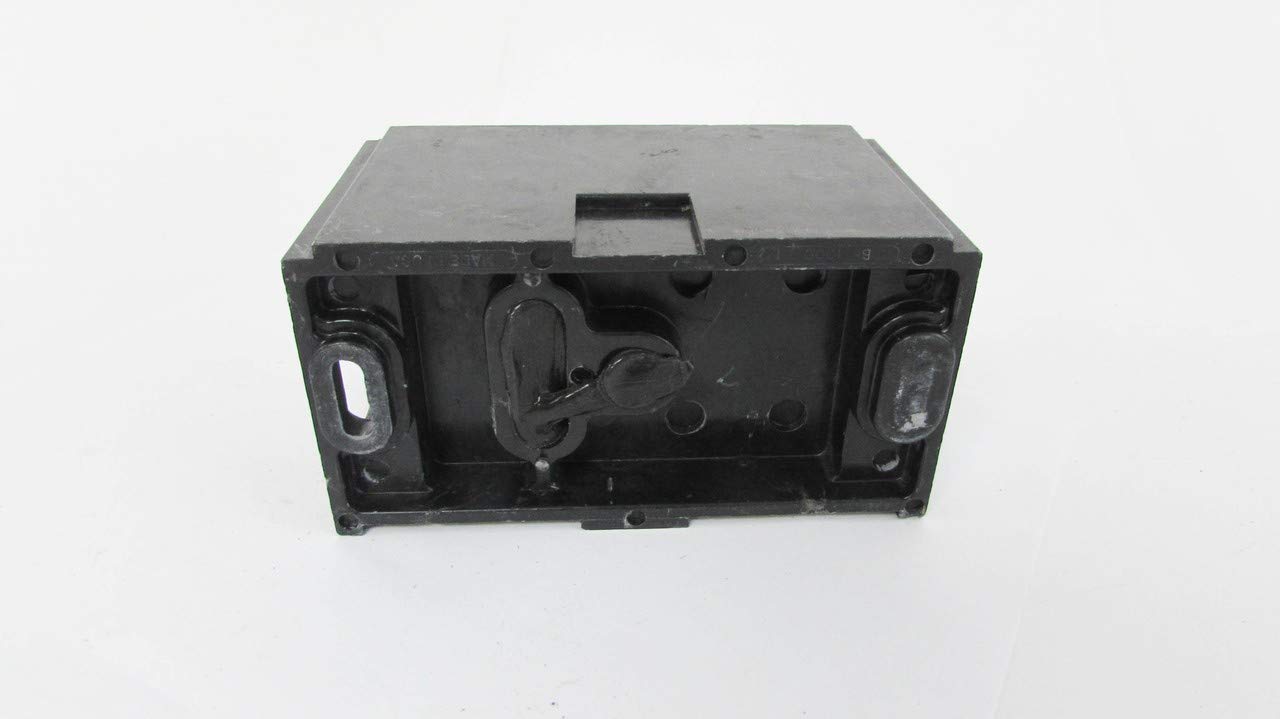

• Features 2 mounting holes for secure installation.
• Constructed from high-strength, high-conductivity material.
• Can stand alone or combine with other blocks to form a multi-block set.

Product Highlights

This NSI power distribution block is ideal for creating multi-pole configurations and offers reliable connectivity for various electrical applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: AL-P1-K6

Technical Specifications

• Color: Black
• Primary Connections/Pole: 1
• Secondary Connection/Pole: 6
• Type: Single Primary
• Voltage Rating: 600 VAC
• Amperage Rating: 310 A
• Number of Poles: 1
• Wire Size: 6 AWG to 350 kcmil
• Material: Aluminum
• Current Rating: 310 Ampere
• Primary Opening Wire Size: 6 AWG to 350 KCMIL
• Secondary Opening Wire Size: 14 to 2/0 AWG
• Conductor Material: Aluminum/Copper
• Cover Type: Clear Acrylic, CL
• Temperature Rating: 90 Deg C
• Connector Material: Aluminum Alloy

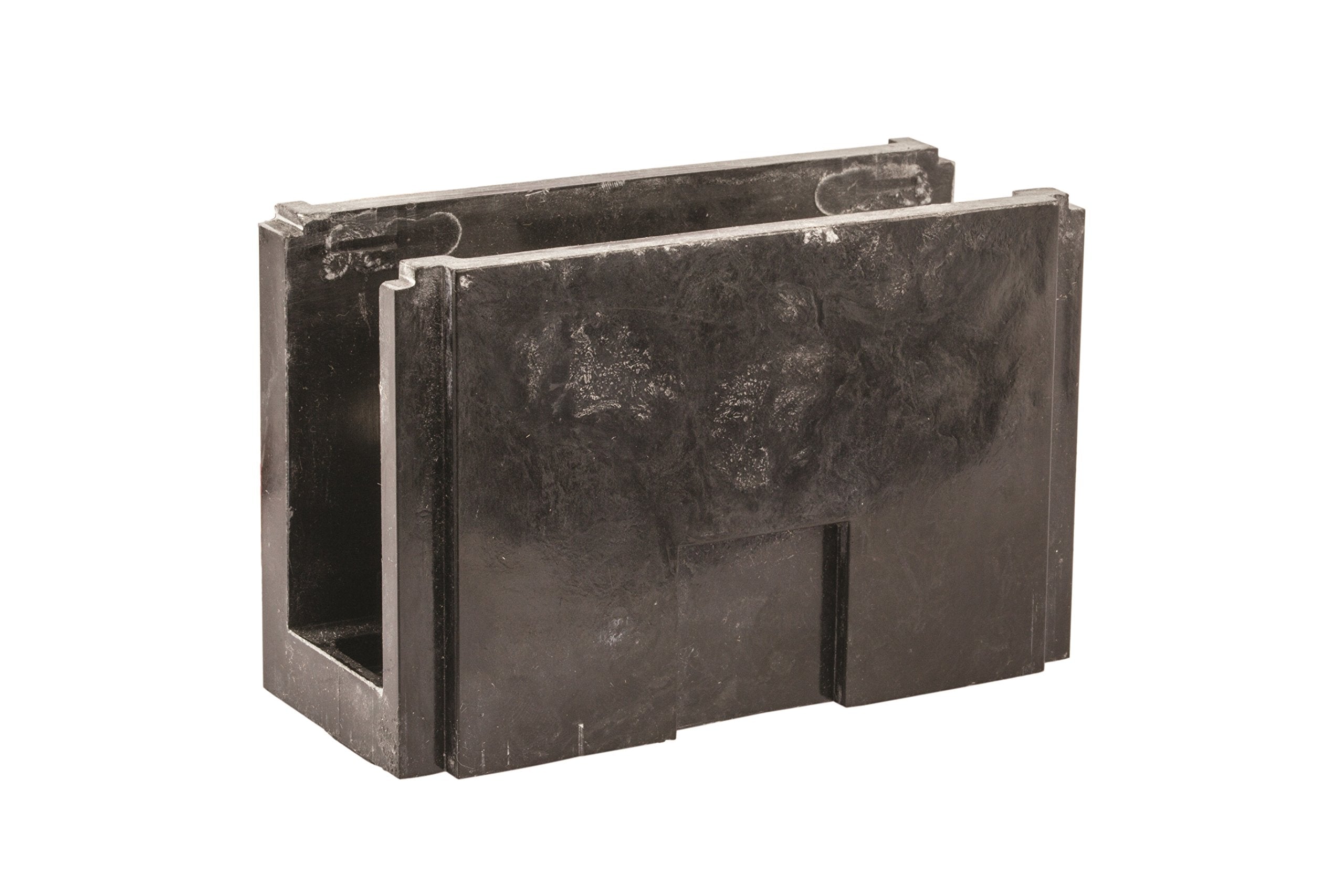

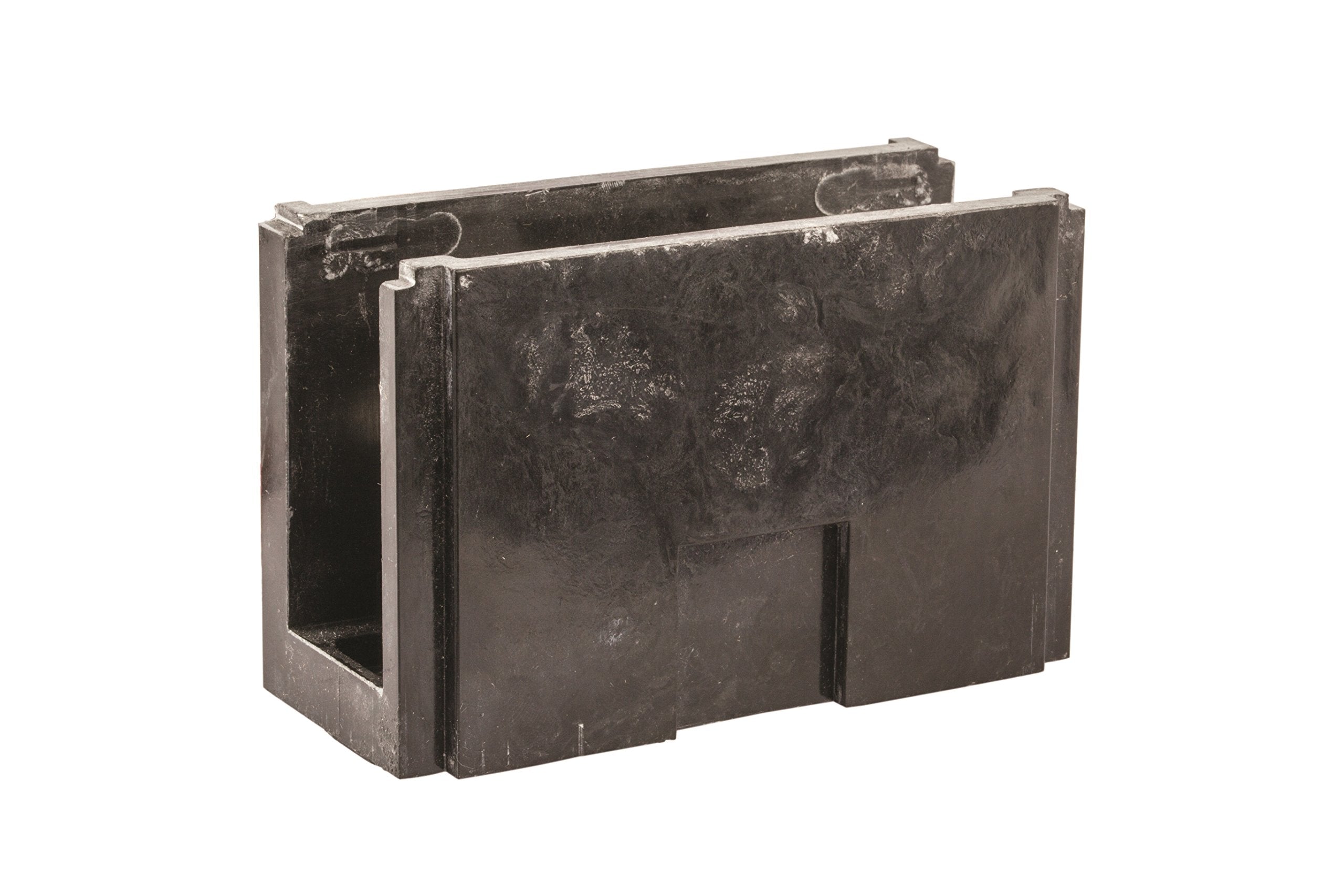

• Housing Material: Glass Filled Polyester
• Approval: UL, CSA
• Poles: 1
• Conductors: 1, 6
• Wire Range: 2/0 - 14 AWG
• Line Wire Size: 350MCM-6 AWG
• Load Wire Size: 2/0-14 AWG
• Ampere: 310 Ampere per pole
• Application: For splice, tap power connectors and terminate
