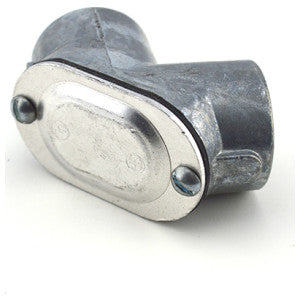

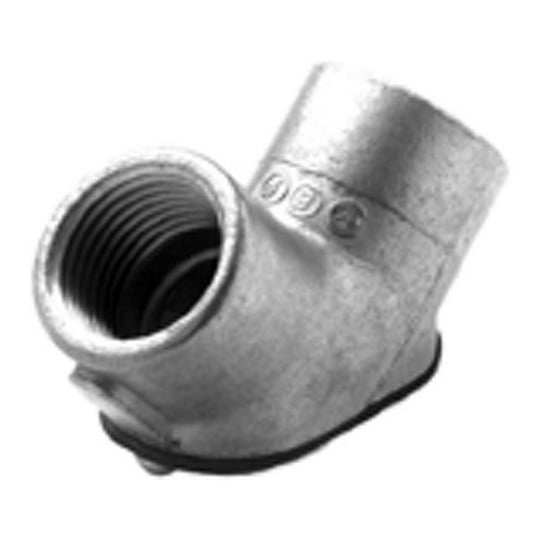

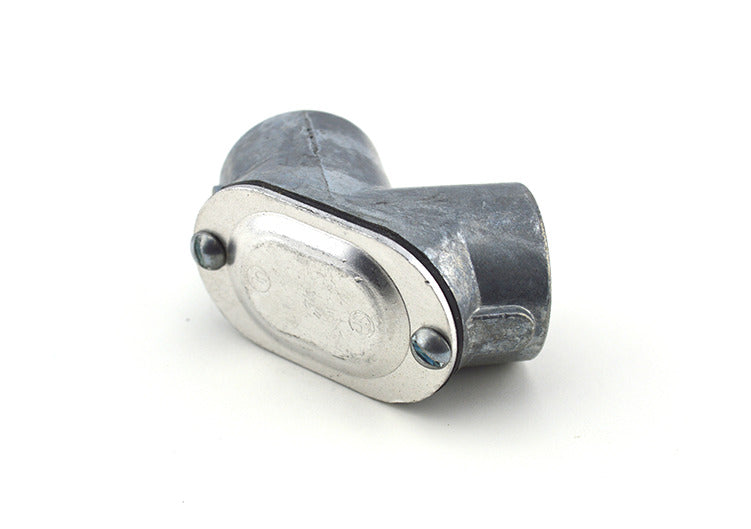

Nsi 82-DC Pull Elbow Rigid to Rigid Zinc Die Cast 3/4 Inch

Product Description

The NSI 82-DC pull elbow ensures high-quality connections between two sections of rigid conduit, forming a 90° bend. The pull elbow comes with a removable cover that facilitates wire pulling and ensures access for maintenance and system changes. It is used for connecting rigid or IMC to form 90 Degrees bend.

• Removable Aluminum Cover: Bridgeport pull elbows feature a removable aluminum cover to facilitate wire pulling and ensure easy access for maintenance or future system changes
• Zinc Die Cast Body: The zinc die cast body is naturally resistant to corrosion for long-term use in any environment
• Zinc-Plated Steel Set Screws: The set screws ensure that the EMT conduit can be securely fastened once in place

Product Highlights

The NSI 82-DC pull elbow is made of zinc die cast and has a trade size of 3/4 inch. It is cULus certified.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 82-DC
• Country of Origin: India

Technical Specifications

• Material: Zinc Alloy
• Finish: Ball Burnished Mirror Smooth
• Application: Used for connecting rigid or IMC to form 90 Degrees bend. Removable cover and neoprene gasket facilitate wire pulling.
• ECCN: EAR99
• UNSPSC: 39131717
• Type: Pull Elbows
• Use With: Rigid/IMC Conduit
• Trade Size: 3/4 in.
• Brand: Bridgeport
• Flexibility: Threaded Rigid or IMC
• Manufacturer: NSi Industries
• Material Quality: Zinc Die Cast
• Short Description: BRI82DC 82-DC 3/4" PULLING ELL
• Size: 3/4
• Special Features: Removable cover and neoprene gasket facilitate wire pulling
• Standard: cULus
• Country of Origin: India
• Made in USA: No
• Catalog Number: 82-DC
• UPC: 781747090829
• GTIN: 00781747090829
