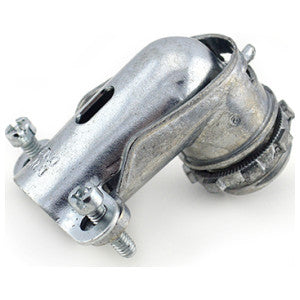

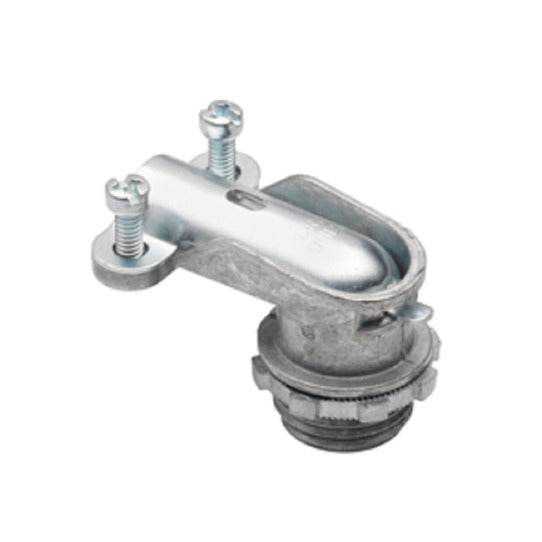

Nsi 804-DC2 Conduit Connector, Flex, 90, 1/2 in.

Product Description

The NSI 804-DC2 is a 90 connector for 1/2 inch flexible metallic conduit, made from zinc die cast. It is designed to connect flexible metal conduit to a box or enclosure. The connector features a squeeze connection type and a non-insulated throat.

• 90 Degrees connector recommended cable types used to connect flexible metal conduit to box or enclosure
• Made from zinc die cast
• Furnished with 2-way Phillips/Slotted Head Screw

Product Highlights

This conduit connector is suitable for connecting flexible metallic conduits to electrical boxes or enclosures at a 90-degree angle.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 804-DC2
• Country of Origin: US - United States

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39121419
• Finish: Ball burnish
• Application: 90 Degrees connector recommended cable types used to connect flexible metal conduit to box or enclosure. Diameter for (.75" 0 min) to (.875" 0 max)
• Connection Type: Squeeze
• Material: Zinc Die Cast
• Type: Armored Cable and Flexible Connector
• Use With: Flexible Metallic Conduit
• Bend: 90
• Throat Type: Non-Insulated
• Catalog Number: 804-DC2
• Manufacturer: NSi Industries
• Brand: Bridgeport
• Country of Origin: United States
• Made in USA: Yes
• Conductor Range: .75 - .875
• Connector Type: FMC
• Number of Conductors: 1 Cable
• Special Features: Furnished with 2-way Phillips/Slotted Head Screw
• Standard: UL, CSA
• UPC: 781747158048
• GTIN: 00781747158048
• Item Type: Connector
• Size: 1/2
• Trade Size: 1/2 IN
