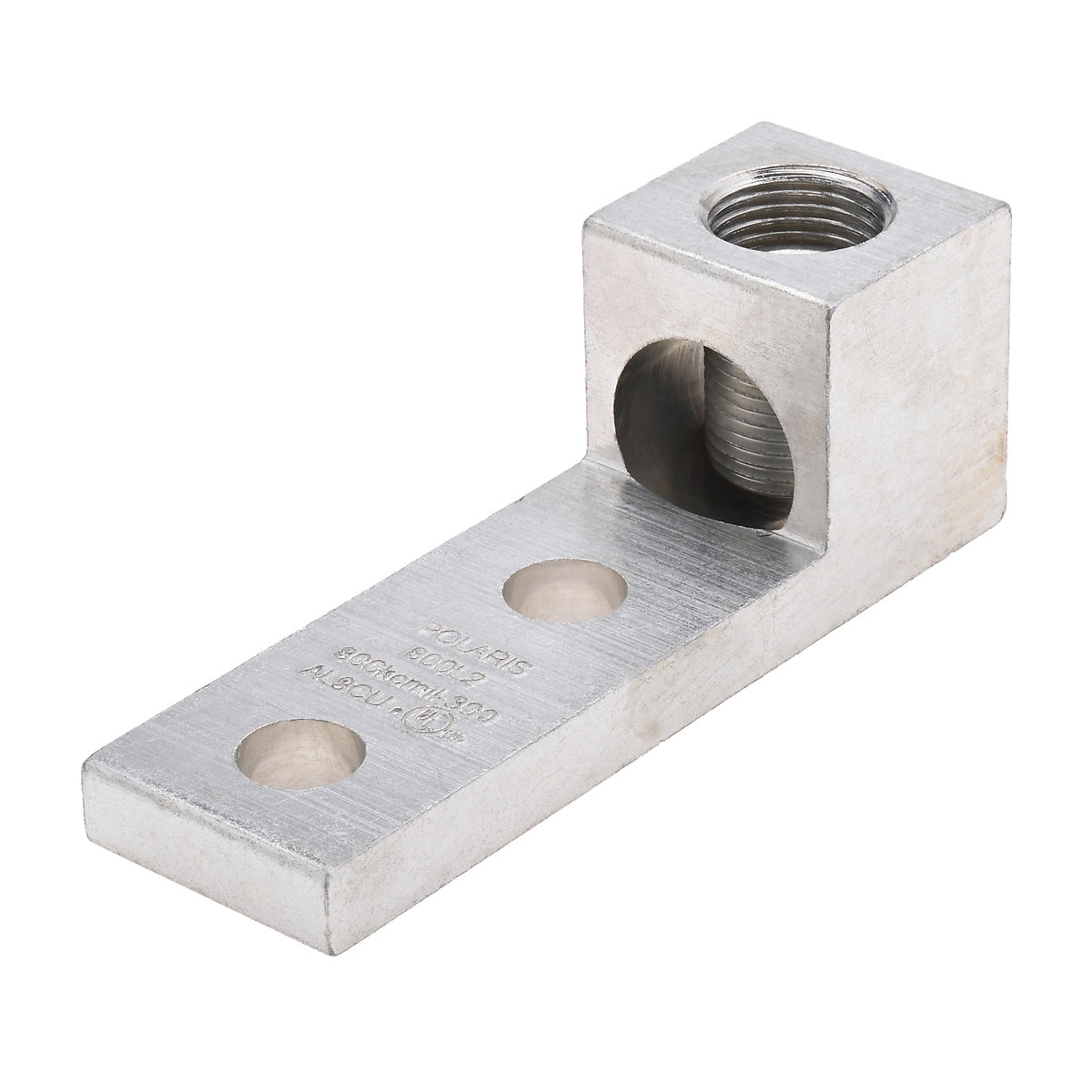

Nsi 800l2 nema panel lug 800-300

Product Description

The NSI 800L2 is a Nema Panel Lug 800-300. It features a panelboard style for multi-conductor use with NEMA mounting hole spacing for secureness. Constructed from 6061T-6 aluminum alloy and electro-tin plated for low contact resistance. Suitable for use with copper or aluminum conductors.

• Panelboard style for multi-conductor with NEMA mounting hole spacing for turn-prevent and secureness
• Made of 6061T-6 aluminum alloy
• Electro-tin plated for low contact resistance

Product Highlights

NSI 800L2 Nema Panel Lug is designed for use with copper or aluminum conductors and has NEMA standard hole spacing of 1.750 inch.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 800L2
• Country of Origin: USA

Technical Specifications

• Voltage Rating: 600 V
• Material: 6061T-6 Aluminum Alloy
• Finish: Tin Plated
• Conductor Type: Aluminum, Copper
• Ul Standard: UL 486A-486B
• Tang Length: 3.38
• Hole Spacing: 1.75
• Wire Range: 800 MCM – 350 MCM
• Conductors: 1
• Electrical Ratings: 600 VAC
• Height: 1.69 in
• Hex Size: 1/2 in
• Length: 4-3/4 in
• Number of Ports: 1
• Series: L Series
• Type: Dual Rated
• Width: 1.44 in
• Conductor Range: 300 to 800 kcmil
• Bolt/Stud Size: 1/2 in
• Suitable For Use With: Copper and Aluminum Conductors
