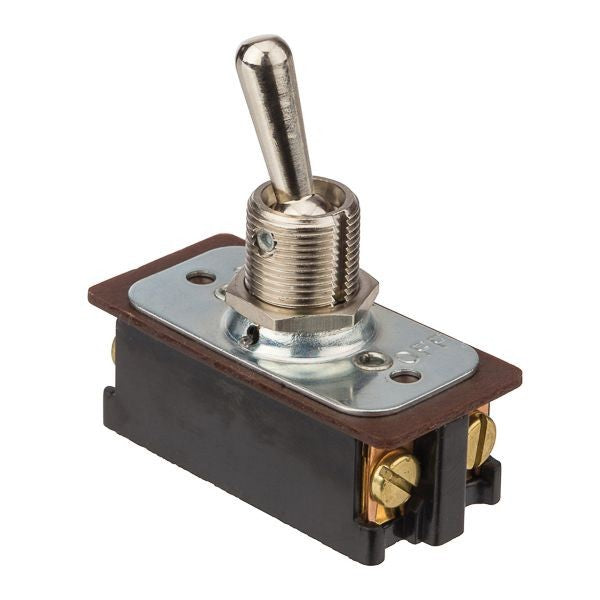

Nsi 78290TS Toggle Switch 125/250 VAC 8/16 A DPST ON-OFF

Product Description

The NSI 78290TS toggle switch operates at 125/250 VAC and 8/16 A with a DPST ON-OFF contact configuration. Features a bat actuator, snap mounting, and screw terminals. It measures 1.75 in L x 0.836 in W x 0.765 in H and is suitable for motor equipment control applications.

• Operates at 125/250 VAC and 8/16 A
• Features a DPST ON-OFF contact configuration
• Suitable for motor equipment control applications

Product Highlights

The NSI 78290TS is a toggle switch with bat actuator, snap mounting, and screw terminals.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 78290TS
• Country of Origin: US

Technical Specifications

• Actuator: Bat
• Contact Rating: 16 A at 125 VAC, 8 A at 250 VAC
• Mounting: Snap
• Number of Poles: 2
• Terminal Type: Screw
• Voltage Rating: 125/250 VAC
• Amperage Rating: 8/16 A
• Contact Configuration: DPST ON-OFF
• Standard & Approvals: UL Recognized|CSA Certified
• Application: Motor Equipment Control Applications
• Manufacturer: NSi Industries
• Brand: NSI INDUSTRIES
