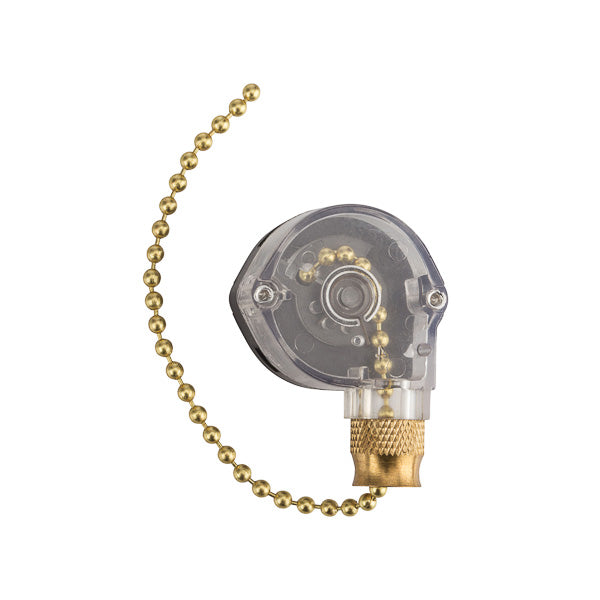

NSI 75111CQ Pull Chain Switch With Cord, 125/250 VAC, 6/3 A, 3SPT

Product Description

The NSI Pull Chain Switch, MPN 75111CQ, operates at voltages of one hundred twenty-five volts alternating current (VAC) and two hundred fifty VAC. This switch is capable of handling currents up to six amps at one hundred twenty-five VAC and three amps at two hundred fifty VAC. It features a three-way switch contact configuration for versatile applications. It is designed for simple installation with push-in connections, provides a threaded mounting feature, and is suitable for controlling motor equipment.

• Voltage: 125/250 VAC
• Amperage: 6/3 A
• Material: Thermoplastic with brass components

Product Highlights

This model is ideal for various motor control applications, ensuring reliable operation and easy installation.

Product Information

Standard Information

• Manufacturer: NSi Industries
• Brand: NSI

Technical Specifications

• Color: Brass
• Connection Type: Push-In
• Contact Rating: 6 A at 125 VAC / 3 A at 250 VAC
• Dimensions: 1.125 inches L x 0.742 inches W x 1.25 inches H
• Material: Thermoplastic
• Mounting Type: Threaded
• Number of Poles: 1
• Phase: 1
• Voltage Rating: 125/250 VAC
• Amperage Rating: 6/3 A
• Contact Configuration: 3SPT
