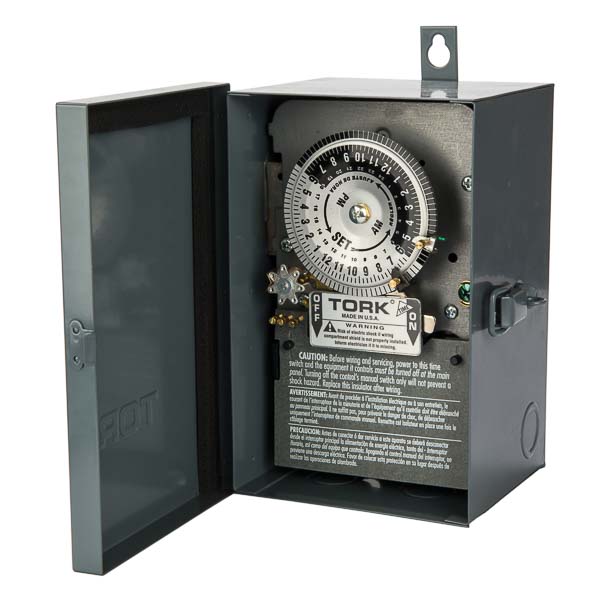

NSI 7302 Mechanical Time Switch 24 hr Time Setting 208 to 277 VAC

Product Description

The NSI Tork 7302 is a mechanical time switch designed for lighting, heating, pumps, and air conditioning control. Operating at a voltage range of two hundred eight to two hundred seventy-seven volts AC, it is ideal for various applications requiring a reliable ON/OFF timer. This unit features a skip-a-day option and a time setting of twenty-four hours.

• Supports up to 40 amperes
• Offers a durable NEMA 3 enclosure
• Temperature rating from negative forty to one hundred sixty-five degrees Fahrenheit

Product Highlights

This time switch is suitable for both indoor and outdoor use, featuring a threaded mounting for easy installation and a lockable hasp enclosure for security.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Amperage Rating: 40 A
• Dimensions: 5-1/4 in L x 4-5/8 in W x 8-1/4 in H
• Enclosure Type: NEMA 3
• Mounting Type: Threaded
• Operation Mode: 24 hr
• Series: 7000
• Temperature Rating: -40 to 165 deg F
• Type: Skip-A-Day ON/OFF
• Time Setting: 24 hr
• Voltage Rating: 208 to 277 VAC
• Horsepower: 5 hp
• Contact Form: 3PST
• Number of Poles: 3
