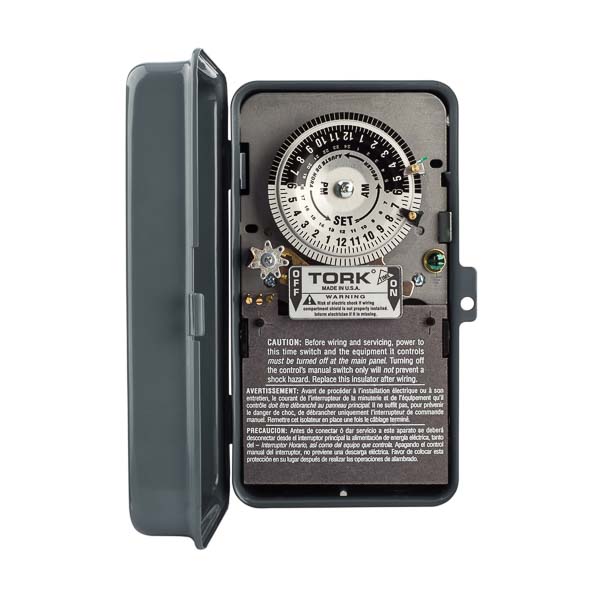

NSI 7200L NSI 7200L 7000 Skip-A-Day Mechanical Time Switch 120 VAC REPLACEMENT MPN

Product Description

The NSI 7200L is a Mechanical Time Switch designed for skip-a-day operations. This device supports a 24-hour setting mode and operates on 120 VAC. It can handle 40 A, making it suitable for applications requiring significant electrical loads.

• Skip-a-day operation with a seven spoke wheel for easy scheduling
• Automatic resume of operations after power outages for up to 16 hours
• Compact design with threaded mounting for simple installation

Product Highlights

This timer is effective for managing day-to-day electrical loads in both residential and commercial settings.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Amperage Rating: 40 A
• Coil Voltage: 120 VAC
• Dimensions: 4.687 in L x 2.937 in W x 7.937 in H
• Enclosure Type: NEMA 1
• Mounting Type: Threaded
• Operation Mode: 24 hr
• Series: 7000
• Temperature Rating: -40 to 165 deg F
• Type: Skip-A-Day
• Time Setting: 24 hr
• Voltage Rating: 120 VAC
• Horsepower: 2 hp, 5 hp
• Contact Form: DPST
• Number of Poles: 2
