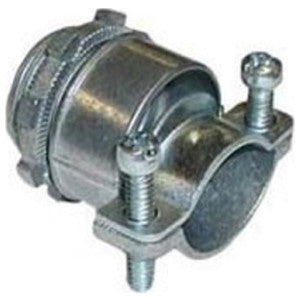

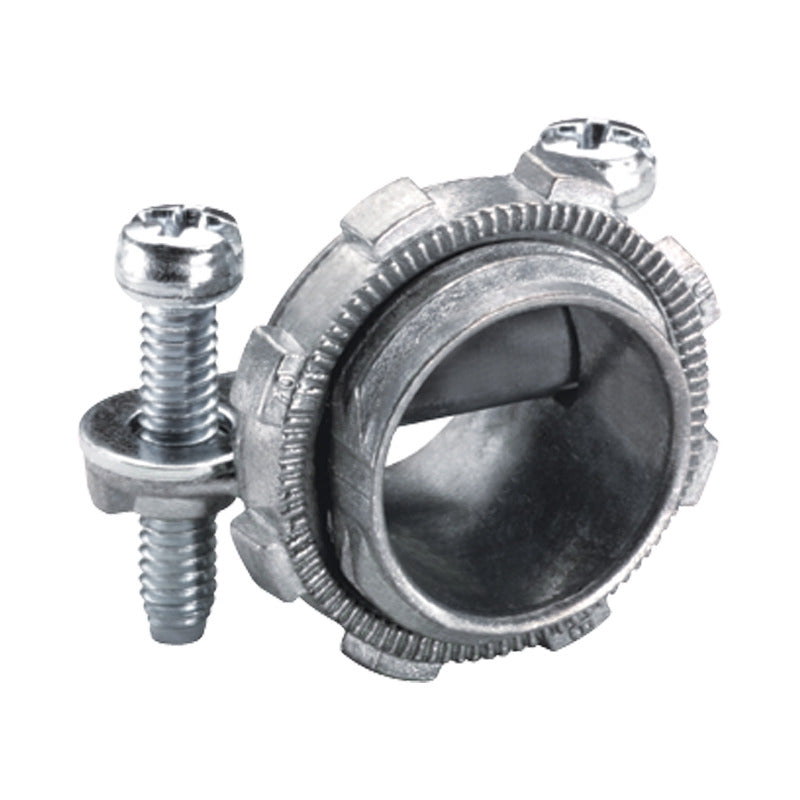

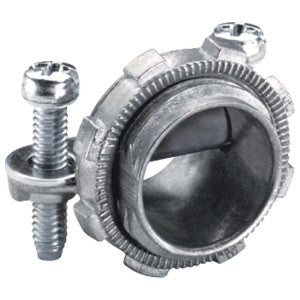

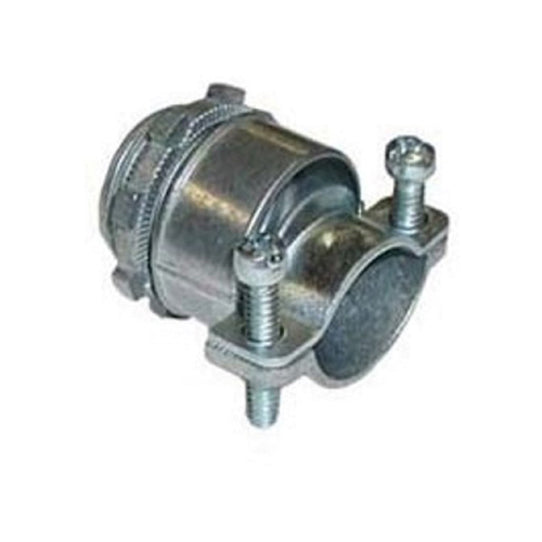

Nsi 655-DC2 Two Screw Strap Connector 3/4 inches

Product Description

The NSI 655-DC2 two screw strap type connector joins flexible metal conduit or HCF cable to an electrical box or enclosure. It is designed for use with 3/4" flexible metal conduit or HCF cable when installing into a 3/4" knockout. The die cast zinc connectors have a precise fit and finish.

• Connects flexible metal conduit or HCF cable to an electrical box or enclosure
• For use with 3/4" flexible metal conduit or HCF cable when installing into a 3/4" knockout
• Die cast zinc connectors have a precise fit and finish for excellent corrosion resistance

Product Highlights

This Bridgeport strap connector is UL listed and RoHS compliant. It uses 2-way Phillips/slotted head screws to tighten down strap and secure conduit or cable in place.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 655-DC2
• Country of Origin: China

Technical Specifications

• Material: Die Cast Zinc
• Finish: Ball Burnished Mirror Smooth
• Ul Standard: UL-514B
• Application: Two screw strap type connector used to connect AC/MC and FMC to box or enclosure. Recommended cable types 6/3 - 4/3 (.85" 0 min-1.10" 0 max)
• Connection Type: Set-Screw With Insulated Throat
• Catalog Number: 655-DC2
• Manufacturer: NSi Industries
• Brand: Bridgeport
• Country of Origin: China
• Made in USA: No
• Conductor Range: 6/3 - 4/3
• Connector Type: Two-Screw, Strap Type
• NEMA Rating: FB-1
• Number of Conductors: 1 Cable
• Special Features: HCF
• Standard: UL
• UPC: 781747156556
• GTIN: 00781747156556
• Item Type: Connector
• Size: 3/4
• Trade Size: 3/4 IN
• Angle: 180 Deg
• Type: Connector
