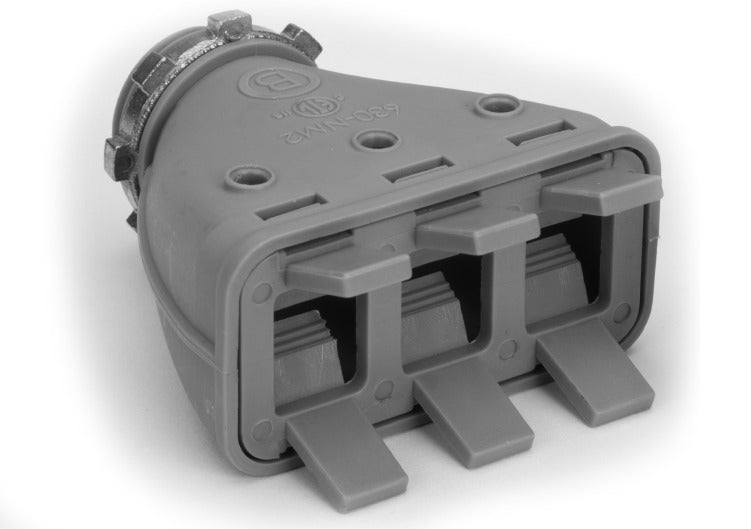

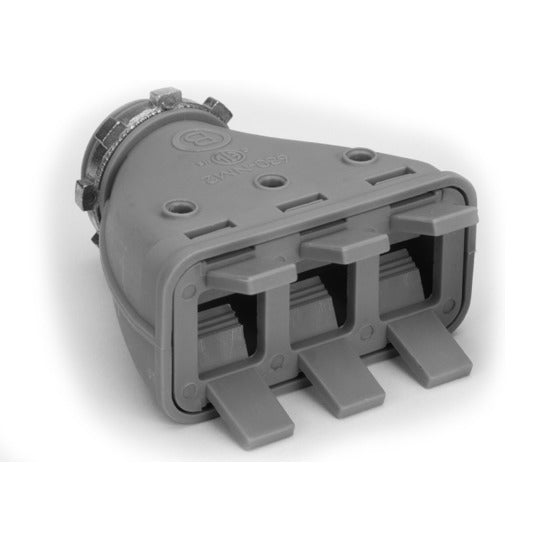

Nsi 630-NM2 Plastic Multi Nonmetallic TraNsition Connector 3/4 inches

Product Description

The NSI 630-NM2 3/4-Inch Plastic Mighty-Merge Multi-NM Transition Connector installs multiple Nonmetallic Cables into a single 3/4-inch KO. It is perfect for prefabrication, the Might-Merge design provides fast installation to save time, materials and cost while promoting excellent workmanship, managing strapping and supporting cables.

• PA-66 Plastic Construction: Plastic PA-66 provides outstanding wear resistance and very good temperature and impact properties
• Might-Merge® Patented Design: Perfect for prefabrication, the Might-Merge design provides fast installation to save time, materials and cost while promoting excellent workmanship, managing strapping and supporting cables
• Professional Performance: All Bridgeport fittings meet OSHA-recognized NRTL-listed electrical standards and the stringent bonding and grounding requirements of 514B or 467 cULus

Product Highlights

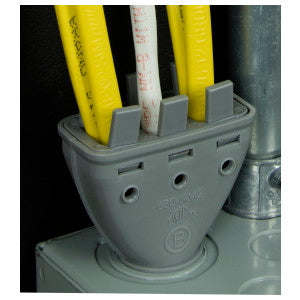

The NSI 630-NM2 connector allows for multiple nonmetallic cables to be installed into a single 3/4" KO. These fittings provide a huge labor savings, compared to the traditional junction box or fitting assembly installation.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 630-NM2
• Country of Origin: CN - China

Technical Specifications

• Material: Plastic
• Pack Qty: 40
• GTIN: 00781747406309
• UPC: 781747406309
• EAN: 0781747406309
• UNSPSC: 39121419
• Ul Standard: UL-514B
• ECCN: EAR99
• Standard: UL-514B
• Application: The 630-NM2 allows for multiple nonmetallic cables to be installed into a single 3/4" KO. Simply squeeze the tabsto install or remove the cables. Each port can hold One 10/3 through 14/2 cable; or One Oval 10/2, 12/2 or 14/2; or Two Oval 14/3 or 12/3; or
• Catalog Number: 630-NM2
• Manufacturer: NSi Industries
• Brand: Bridgeport
• Sub Brand: Mighty-Merge
• Country of Origin: China
• Made in USA: No
• Conductor Range: Each port can hold One 10/3 through 14/2 cable; or One Oval 10/2, 12/2 or 14/2; or Two Oval 14/3 or 12/3; or Two Oval 10/2 thru 14/2 NM Cables
• Number of Conductors: up to 6 max
• Special Features: They’re perfect for prefabrication of bundles of nonmetallic cable. These fittings provide a huge labor savings, compared to the traditional junction box or fitting assembly installation.
• Item Type: Connector
• Size: 3/4
