NSI 600T-4 Step Panel Lug, 600 VAC, (4) 2 AWG to 600 MCM

Product Description

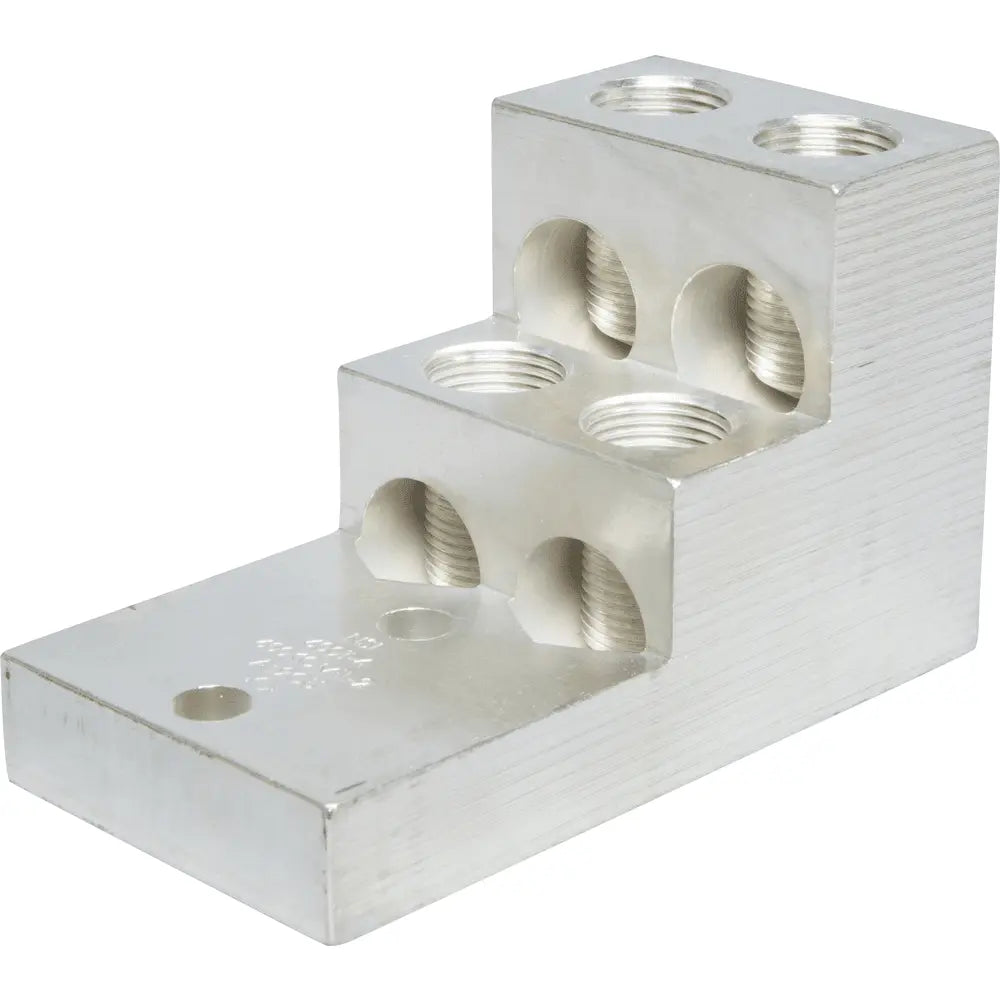

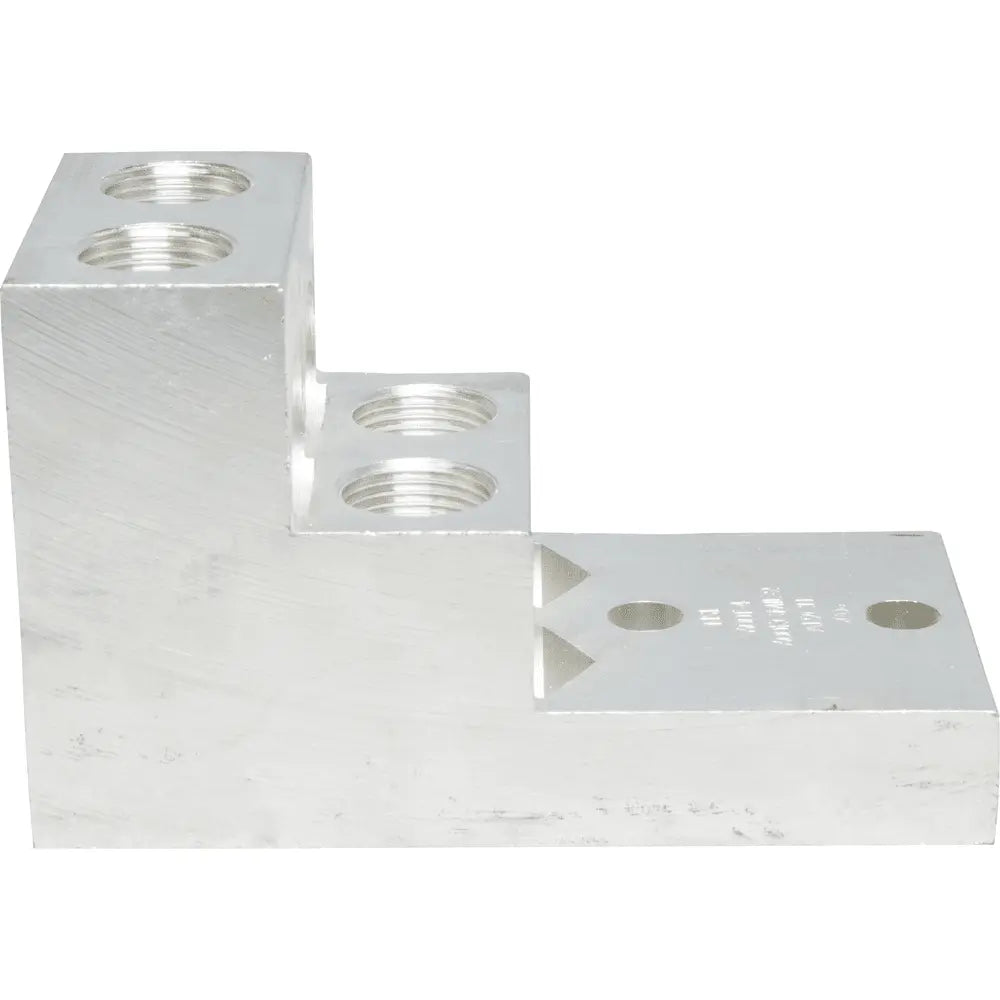

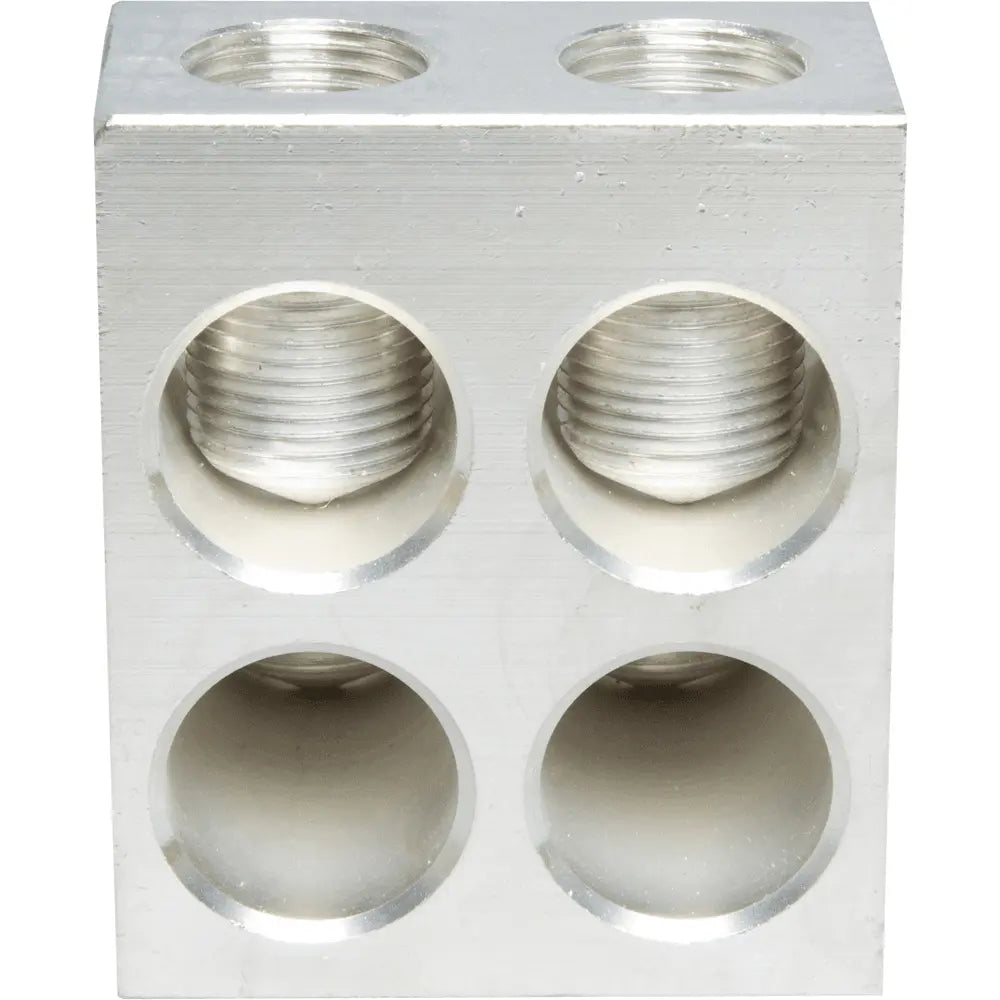

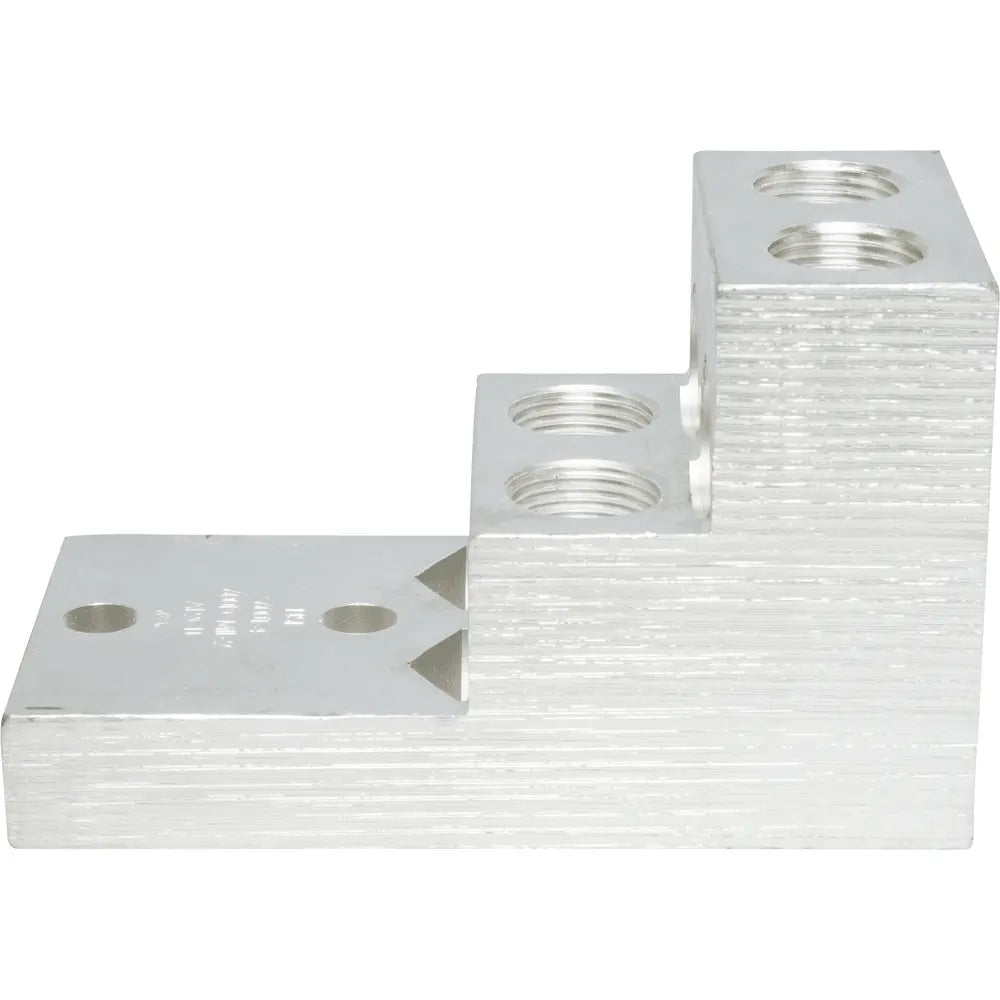

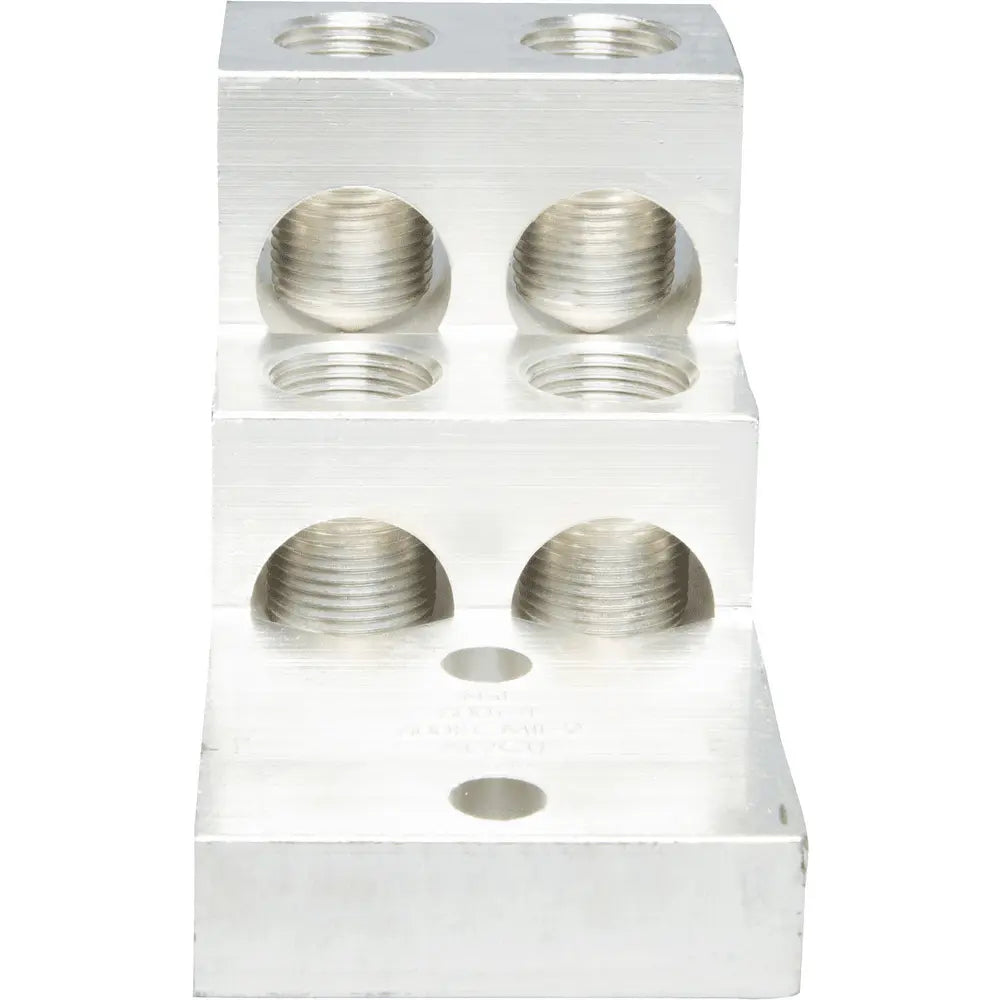

The NSI 600T-4 is a step panel lug designed for aluminum and copper conductors. This model can connect conductors ranging from two AWG to six hundred MCM. Its design includes four ports for efficient wire management. This part is made from 6061T-6 aluminum and is electro-tin plated to reduce contact resistance, increasing its reliability.

• Rated for 600 volts, with a maximum voltage rating of 2000V per UL486B.
• Temperature rating of ninety degrees Celsius for safe operation.
• Meets NEMA standards with a bolt size of three eighths inches.

Product Highlights

This lug provides strong and efficient connections for electrical systems, ensuring solid performance in various applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSI

Technical Specifications

• Type: Mechanical Lugs
• Material: Aluminum
• Height: 3.00 inches
• Width: 2.50 inches
• Length: 4.91 inches
• Weight: 1.41 pounds
• Connection: Screw
• Insulation: Non-Insulated
• Environmental Conditions: Dry Location
• Voltage Rating: 600 VAC
• Number Of Mounting Holes: 2
• Number Of Conductors/Ports (Main): 4
