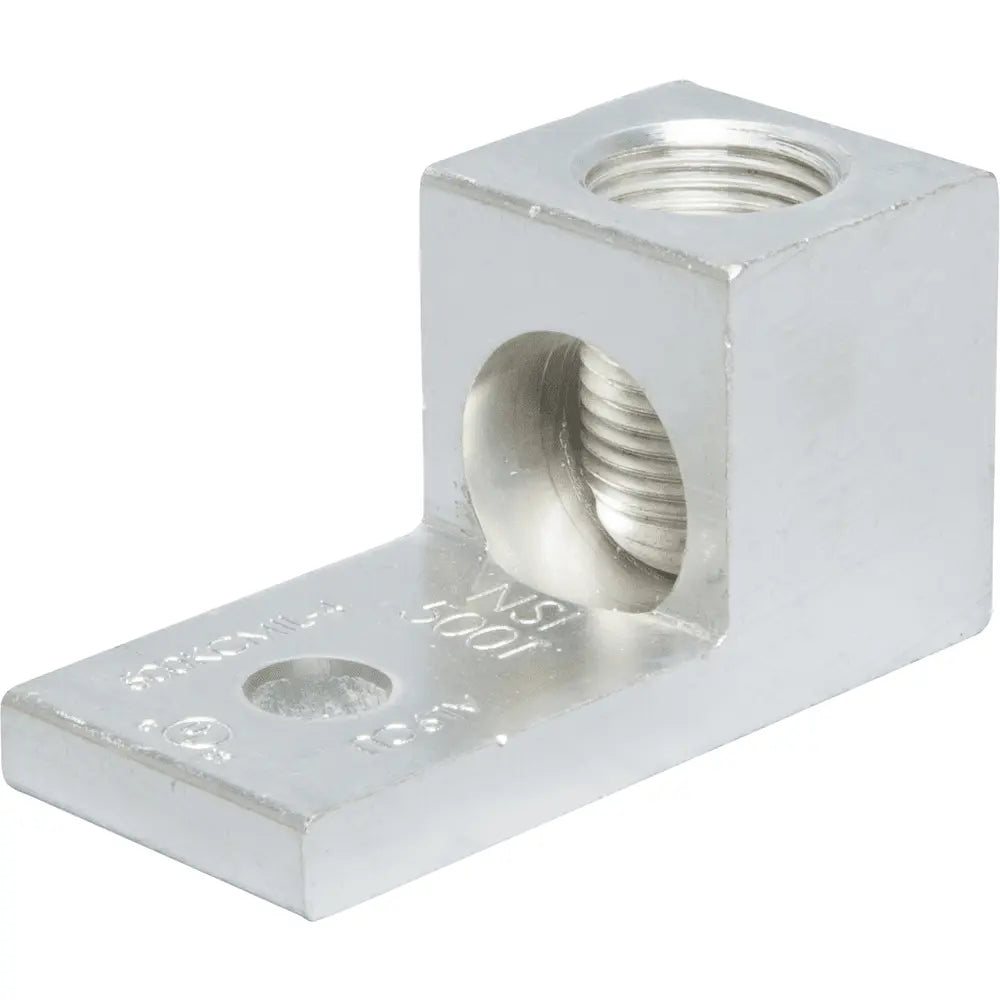

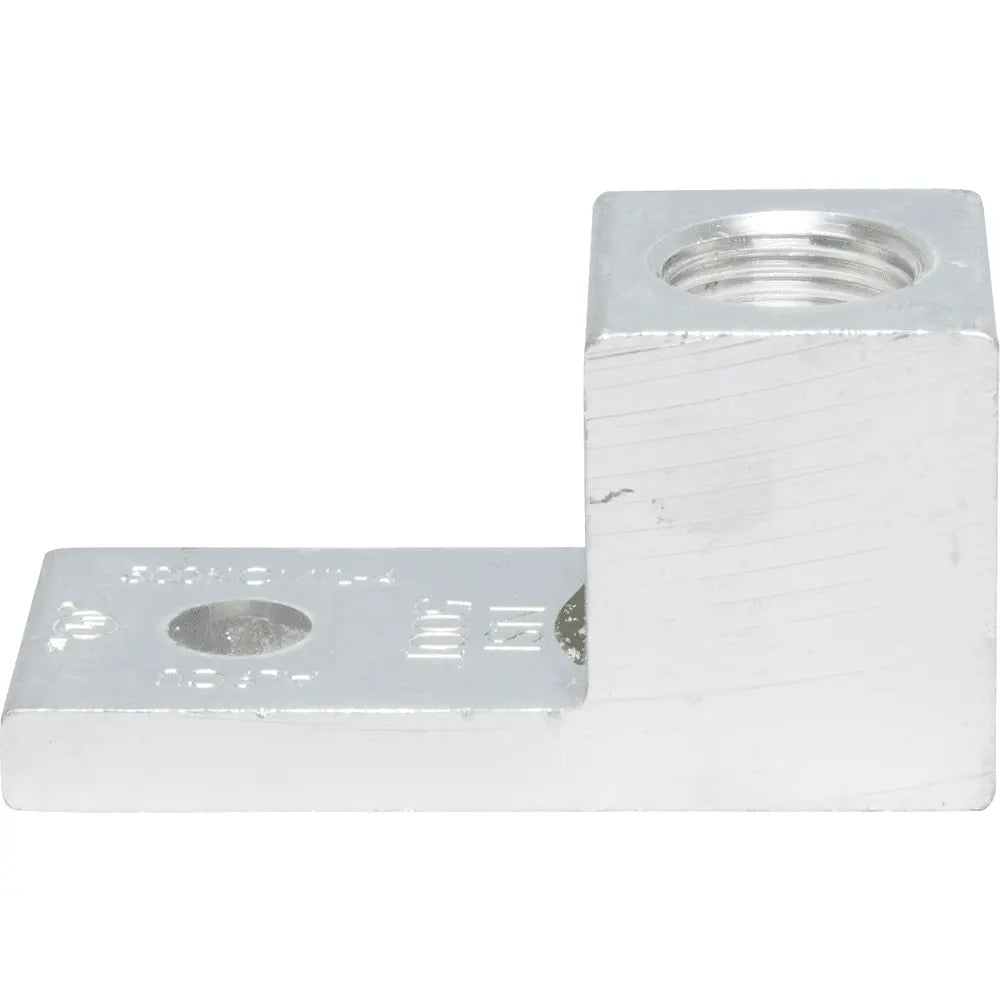

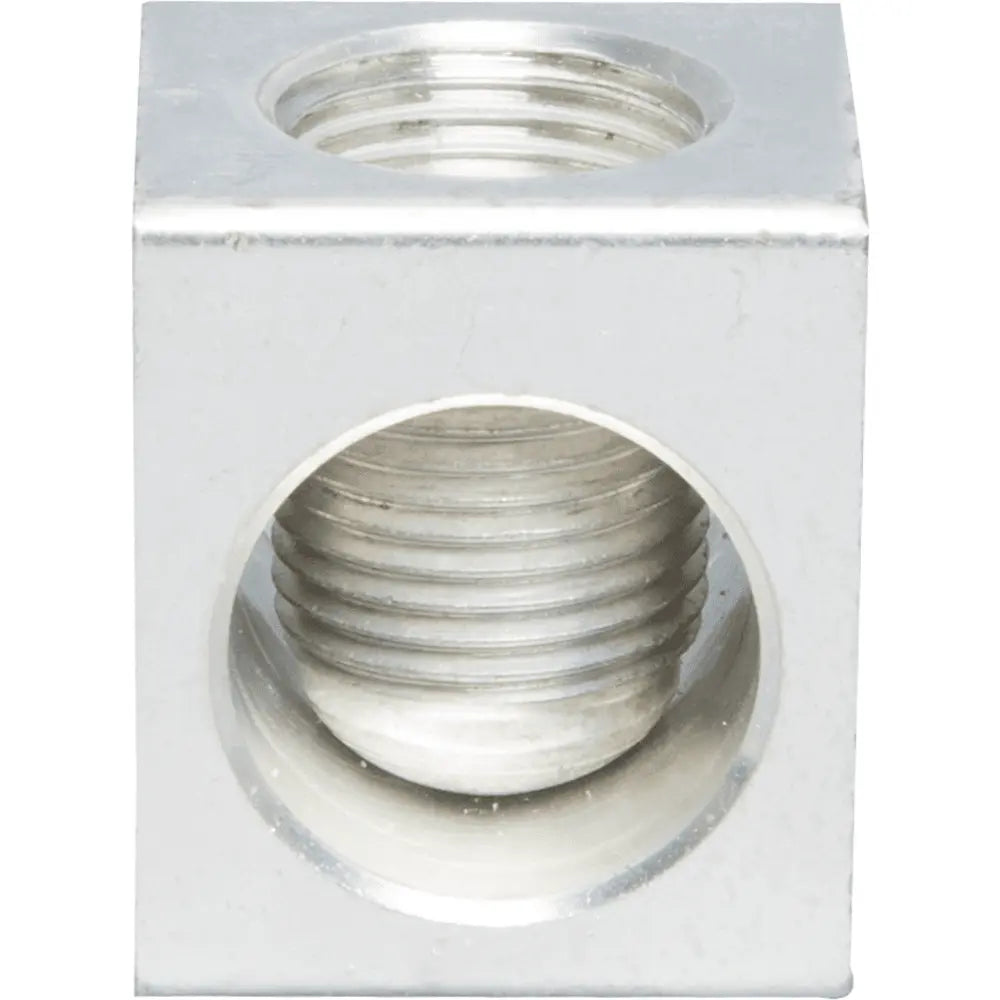

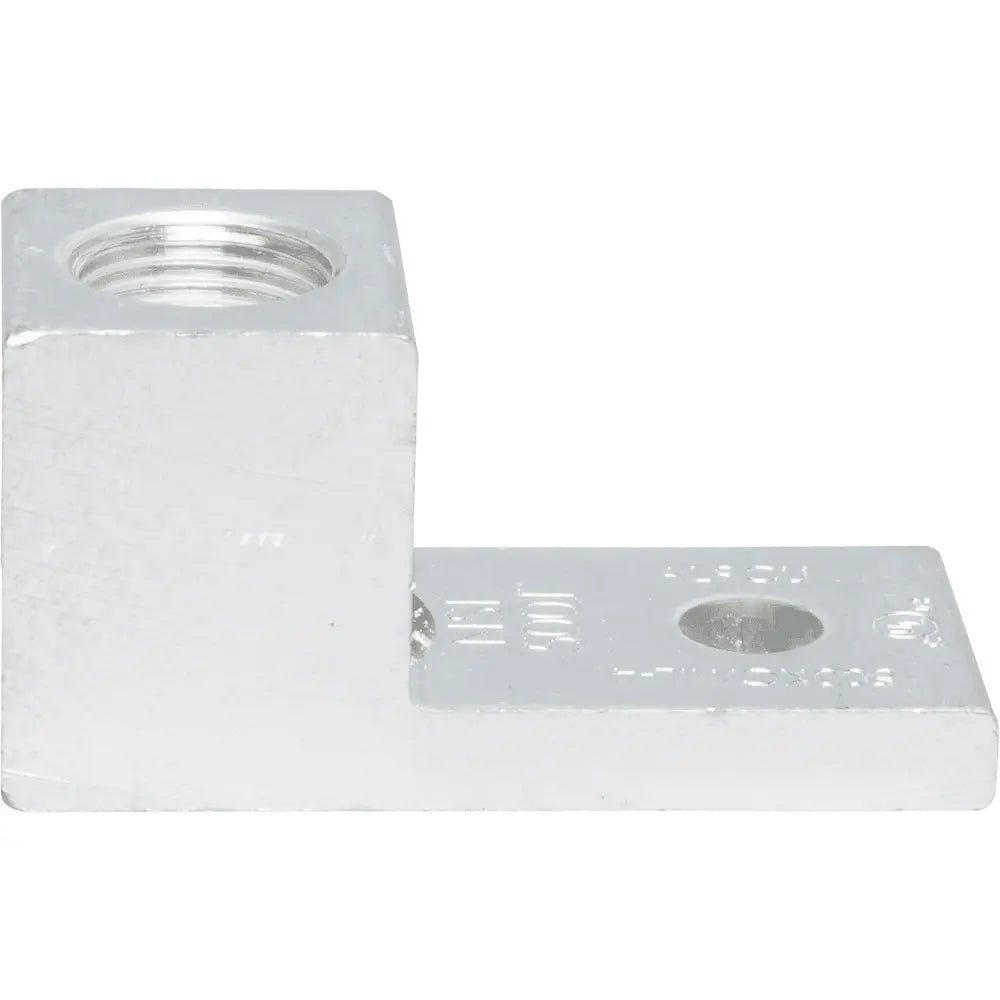

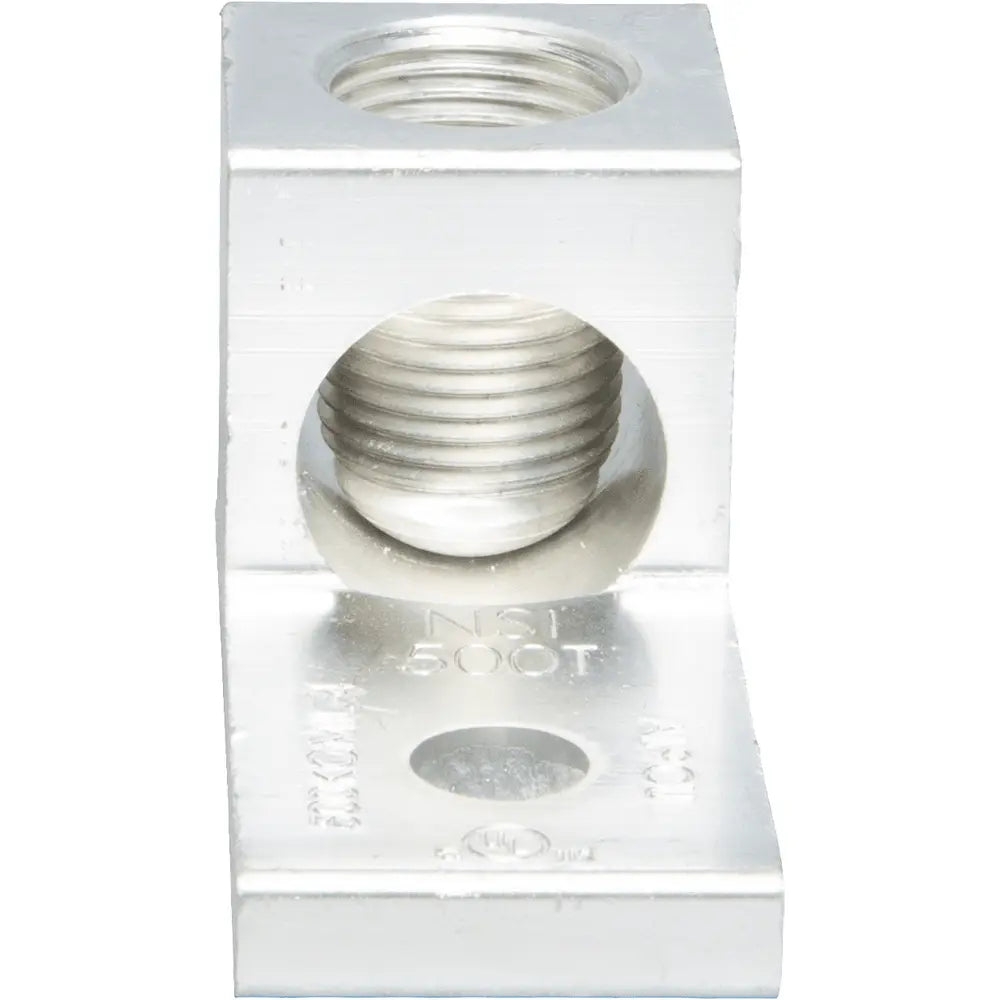

NSI 500T Dual Rated Lug, 4 AWG to 500 MCM

Product Description

The NSI Aluminum Lug, with MPN 500T, is designed for effective conduction in wire termination applications. It supports conductor sizes ranging from four AWG to five hundred MCM, making it versatile for different electrical projects.

• Usage with copper and aluminum conductors.
• Constructed from high-quality aluminum to ensure good conductivity.
• Featuring electro-tin plating for low contact resistance.

Product Highlights

This mechanical lug is ideal for applications in dry locations, providing reliable connections in various electrical systems.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSI

Technical Specifications

• Material: Aluminum
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Conductor Range: 4 AWG to 500 MCM
• Stud Size: 3/8 in
• Dimensions: 2.75 in L x 1.20 in W x 1.41 in H
• Weight: 0.26 lbs
• Number of Bolt Holes: 1
• Connection Type: Screw
• Insulation Type: Non-Insulated
