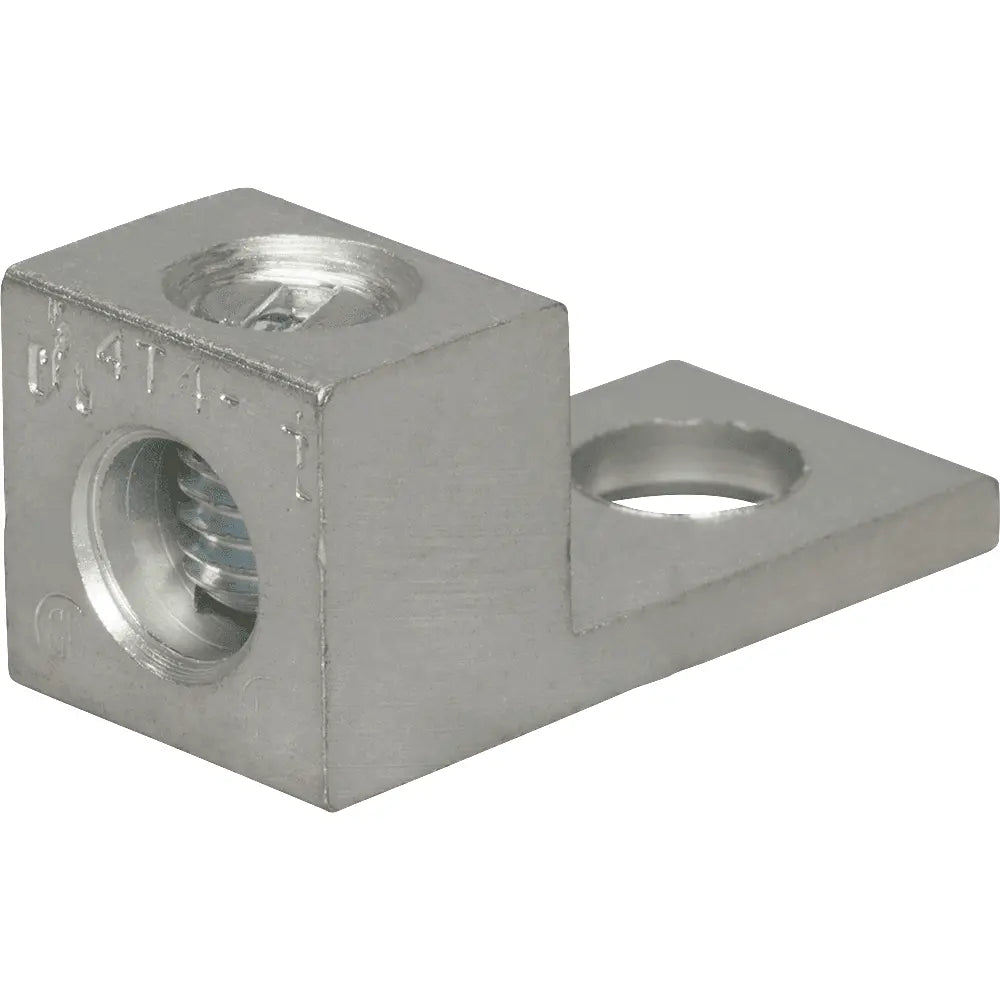

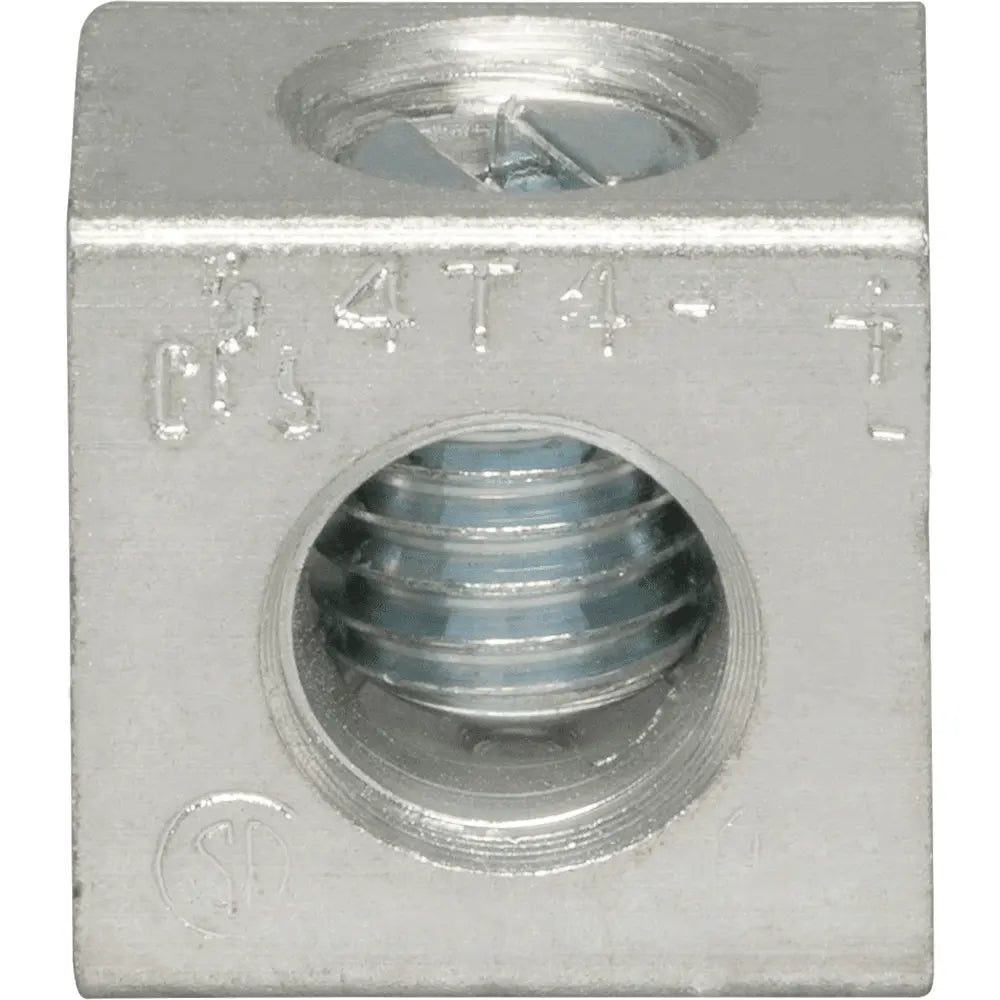

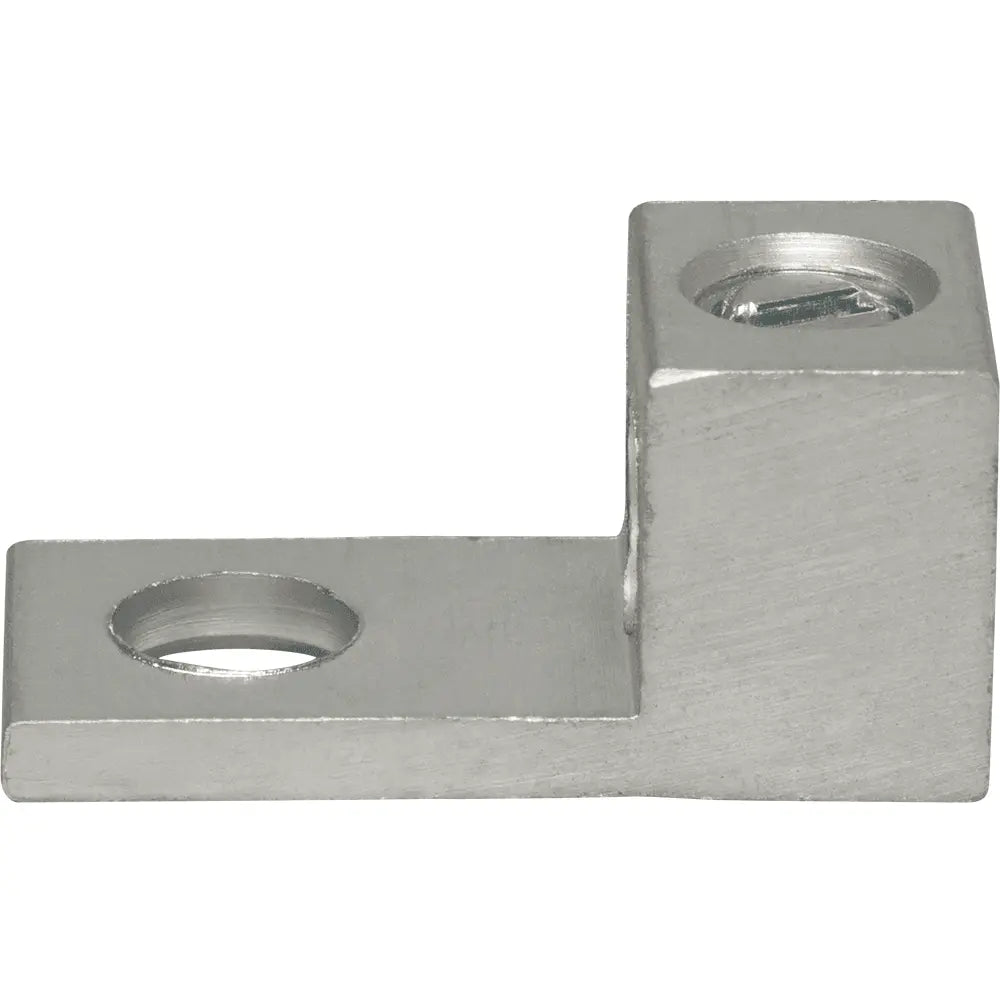

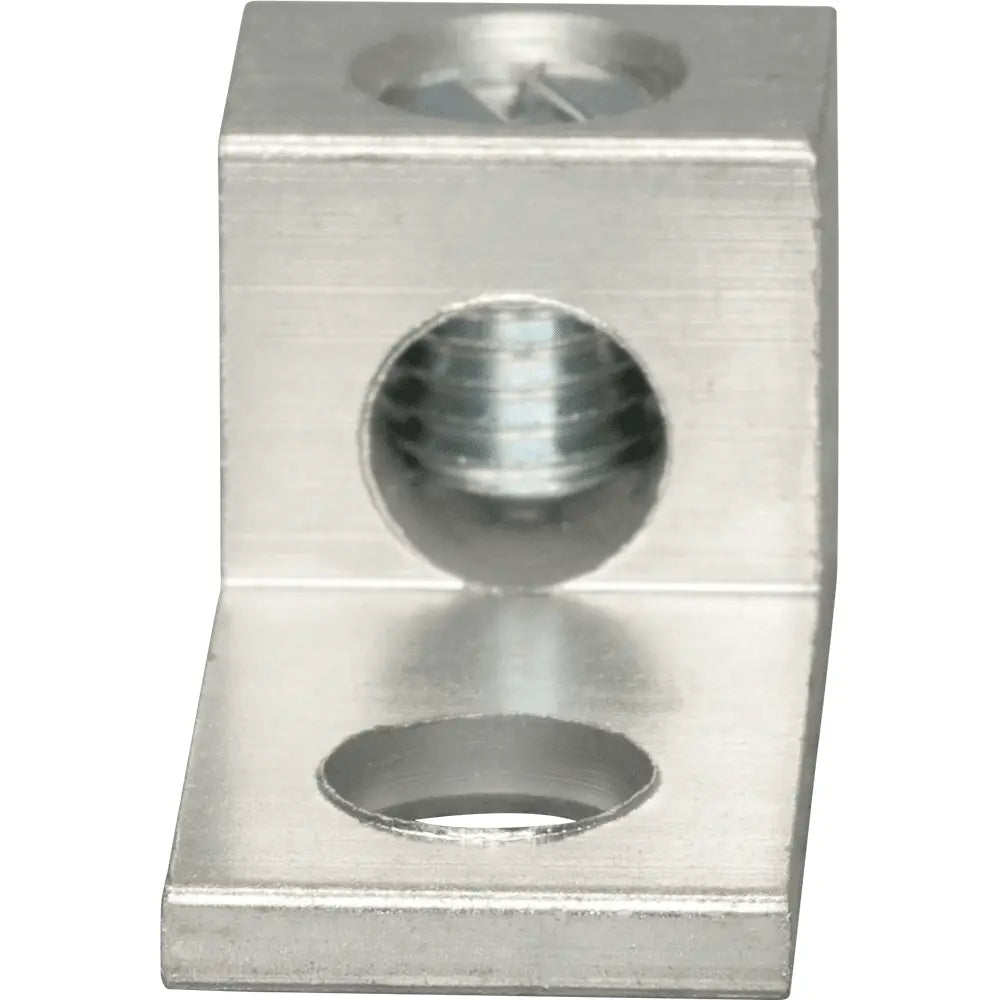

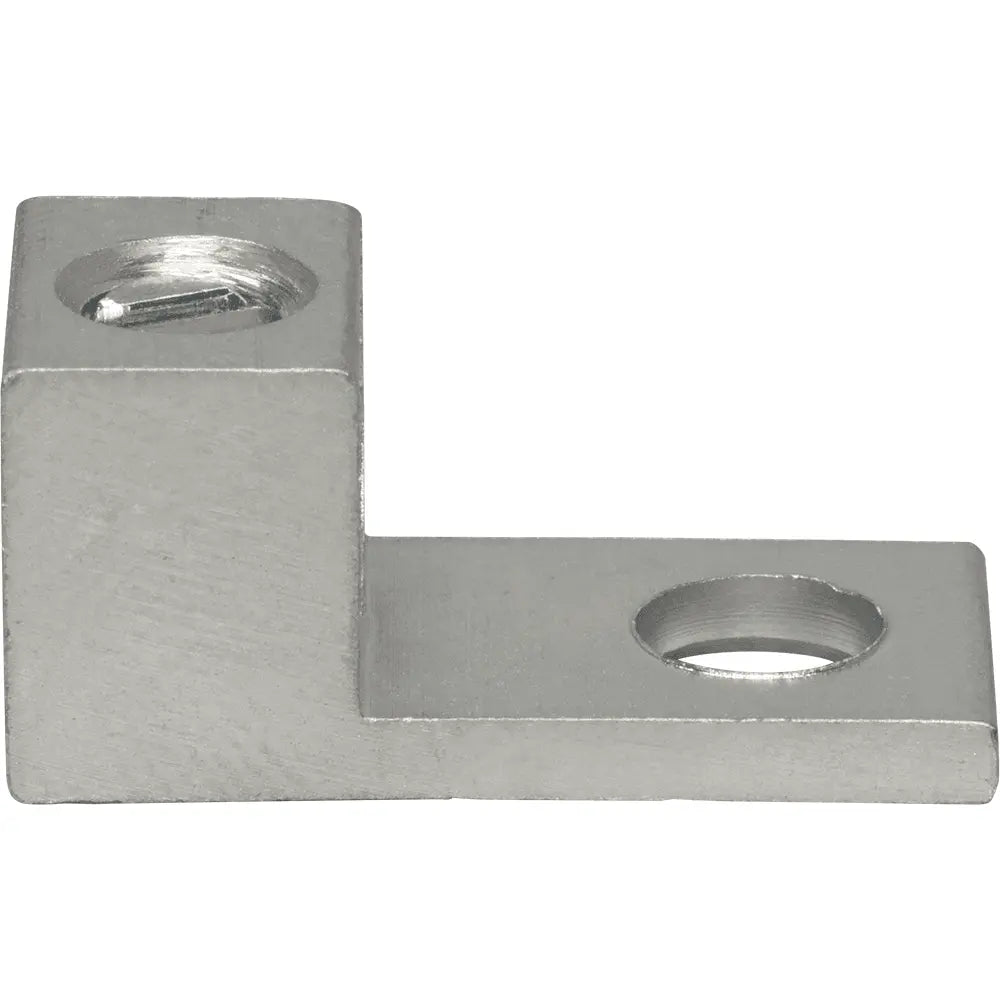

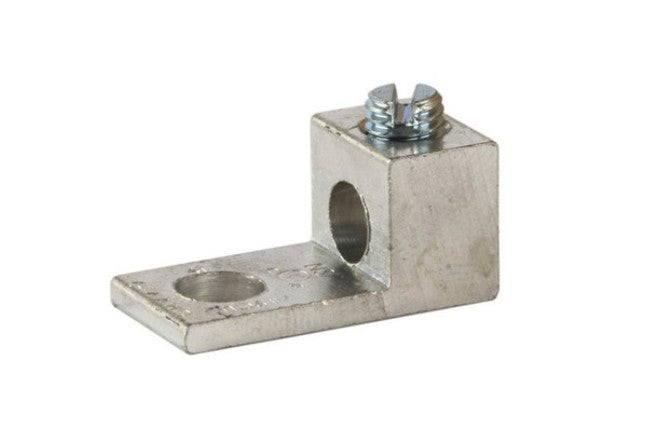

NSI 4T AL Single Mech Lug, 14 to 4 AWG

Product Description

The NSI Supplies 4T AL Single Mech Lug is designed for use with both aluminum and copper conductors. This connector is made from 6061T-6 aluminum alloy and features an electro-tin plated surface for reduced contact resistance. The lug supports a wire range from fourteen to four AWG and is suitable for mechanical connection applications.

• Manufactured from durable aluminum material.
• Compatible with both copper and aluminum conductors.
• Electro-tin plated for minimal resistance.

Product Highlights

This lug is ideal for wire termination in both residential and industrial settings. It is reusable and is built for reliability under various conditions.

Product Information

Standard Information

• Material: Aluminum
• Insulation: Non-Insulated

Technical Specifications

• MPN: 4T
• Weight: 0.02 pounds
• Length: 1.06 inches
• Width: 0.5 inches
• Height: 0.5 inches
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Conductor Range: 14 to 4 AWG
• Color: Gray
• Standard: cULus Certified
