Nsi 4156-DC Mighty-Merge EMT To Duplex AC Or FMC Coupling 1/2 inches To 3/8 inches

Product Description

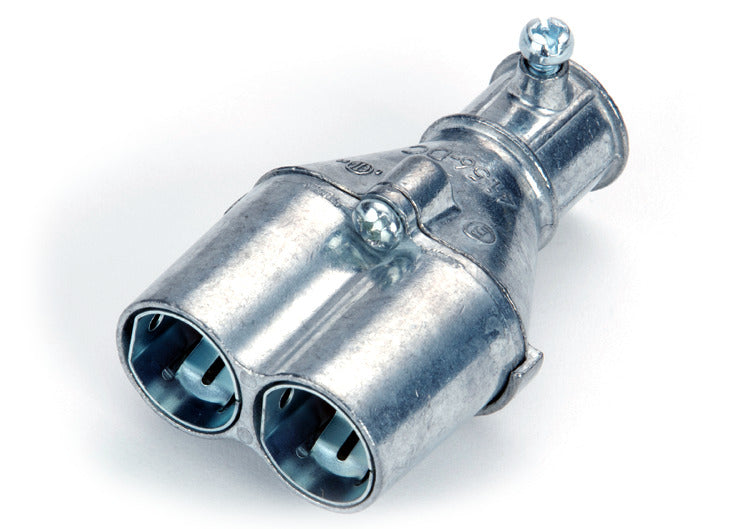

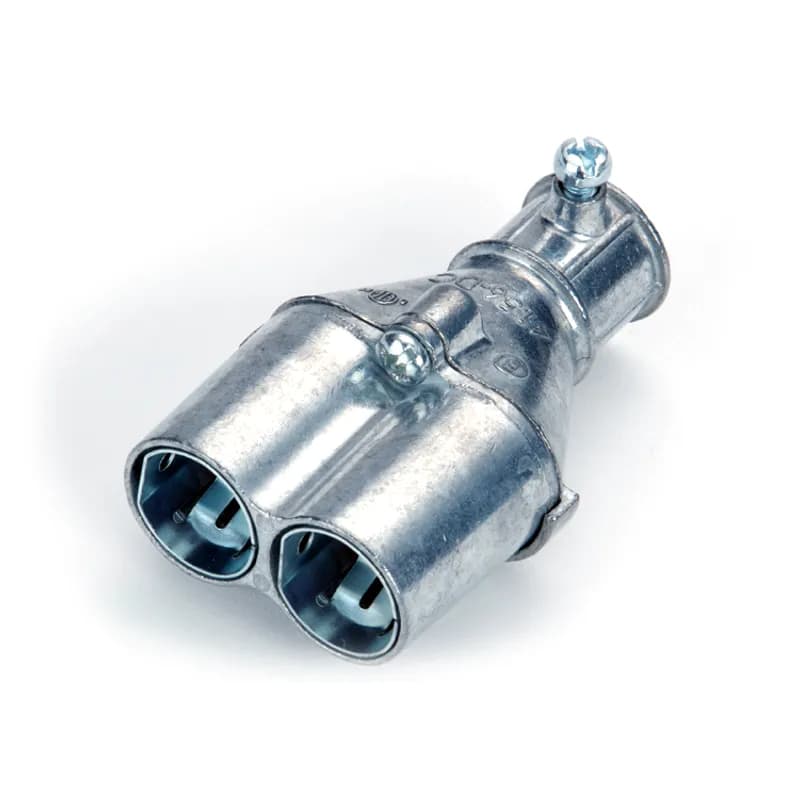

The NSI 4156-DC Mighty-Merge® Transition Fitting is a coupling designed to connect 1/2" EMT to Duplex AC/MC conduits. It securely joins 1/2" EMT to two 14/2 to 10/3 AC/MC cable or 3/8" flexible metal conduit. The set screw end secures EMT. The zinc die cast body is naturally resistant to corrosion for long-term use.

• Secure Electrical Connection: Users can maintain a proper electrical connection between EMT and flexible metal conduit or duplex AC/MC cable
• Zinc Die Cast Body: The zinc die cast body is naturally resistant to corrosion for long-term use in any environment
• Easier And Faster Installation: This coupling is easier and faster to install and offers labor savings as compared to traditional junction box installation

Product Highlights

The coupling features a set screw type end to secure the EMT. It is ideal for commercial and institutional facilities.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 4156-DC
• Country of Origin: CN - China

Technical Specifications

• Material: Zinc Alloy
• Finish: Ball Burnished Mirror Smooth
• Application: The 4156-DC is used to securely join 1/2" EMT to two 14/2 to 10/3 (.43" to .61" Diameter) AC/MC/MCI-A/HCF/HCFMCI-A or 3/8" flexible metal conduit. These fittings provide a huge labor savings, compared to the traditional junction box or fitting assembly installation. When using AC/MC/FMC cable simply remove the armor and expose the conductors to the desired length needed to reach the device box or enclosure. The inspection holes will provide a visual end stop for the cable or flex conduit. The use of anti short bushings is recommended. Tighten the steel screws for the 1/2" EMT conduit. Patented.
• Use With: EMT Conduit, Flexible Metallic Conduit
• Trade Size: 1/2 in.
• Catalog Number: 4156-DC
• Manufacturer: NSi Industries
• Brand: Bridgeport
• Sub Brand: Mighty-Merge
• Country of Origin: China
• Made in USA: No
• Special Features: Set Screw type transition fitting ideal for commercial and institutional facilities.
• Item Type: Coupling
• Connection Type: Coupling
• Material Quality: Zinc Die Cast
• Series: Mighty-Merge
• Size: 1/2" EMT to Duplex AC/MC
• Type: Coupling
• MPN: 4156-DC
