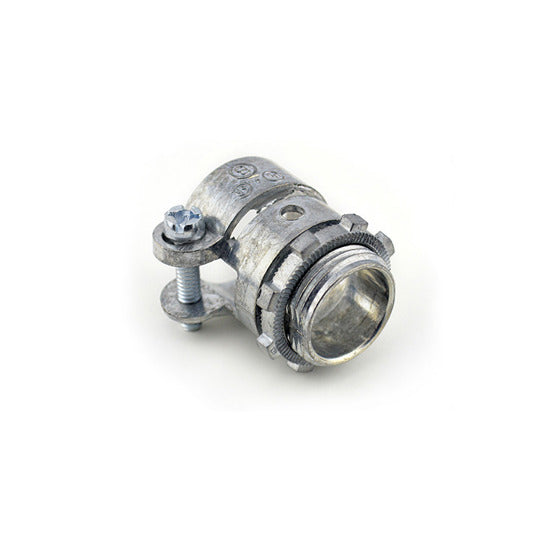

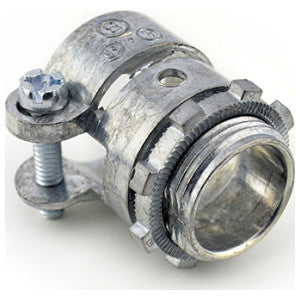

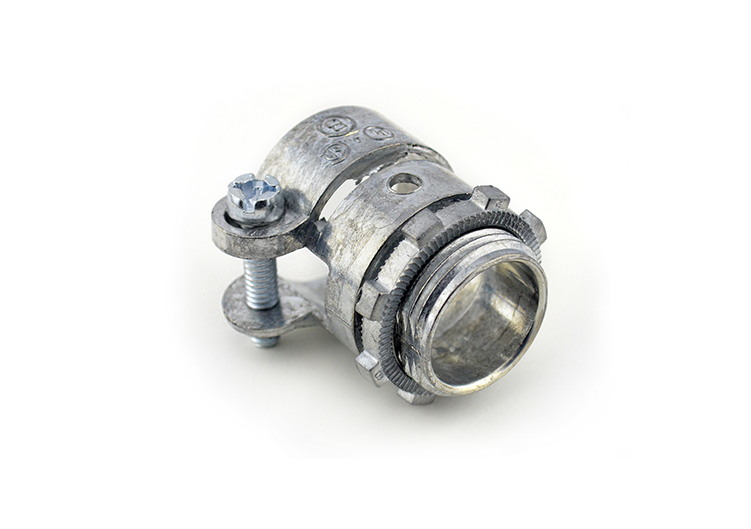

Nsi 408-DC2 squeeze connector 3/4 inch

Product Description

The NSI 408-DC2 squeeze connector joins flexible metal conduit (FMC) or armored cable to an electrical box or enclosure. It is designed for securing 3/4" flexible metal conduit to an electrical box or enclosure through a 3/4" knockout. The connector is made from die cast zinc with excellent corrosion resistance.

• To secure flexible metal conduit, simply insert conduit into the squeeze connector and tighten down a single flex screw
• For securing 3/4" flexible metal conduit to an electrical box or enclosure through a 3/4" knockout
• Die cast zinc squeeze connectors have a precise fit and finish with excellent corrosion resistance when used in harsh environments

Product Highlights

Straight squeeze connector for connecting flexible metallic conduit to electrical boxes. Zinc die cast construction ensures durability and corrosion resistance.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 408-DC2
• Country of Origin: US - United States

Technical Specifications

• Material: Zinc Die Cast
• Finish: Ball Burnished Mirror Smooth
• Pack Qty: 100
• UNSPSC: 39121419
• Ul Standard: UL-514B
• Angle: 180 Deg
• Application: Used to connect steel flexible metal conduit or XRW FMC to box or enclosure.
• Brand: Bridgeport
• Connector Type: Squeeze
• Manufacturer: NSi Industries
• Size: 3/4
• Special Features: Furnished with Tri-Drive screw
• Standard: UL, CSA
• Trade Size: 3/4 IN
• Type: Connector
• Connection Type: Squeeze
• Use With: Flexible Metallic Conduit
• Bend: 0
• Throat Type: Non-Insulated
• Catalog Number: 408-DC2
• Country of Origin: United States
• Made in USA: Yes
• UPC: 781747154088
• GTIN: 00781747154088
• Item Type: Connector
