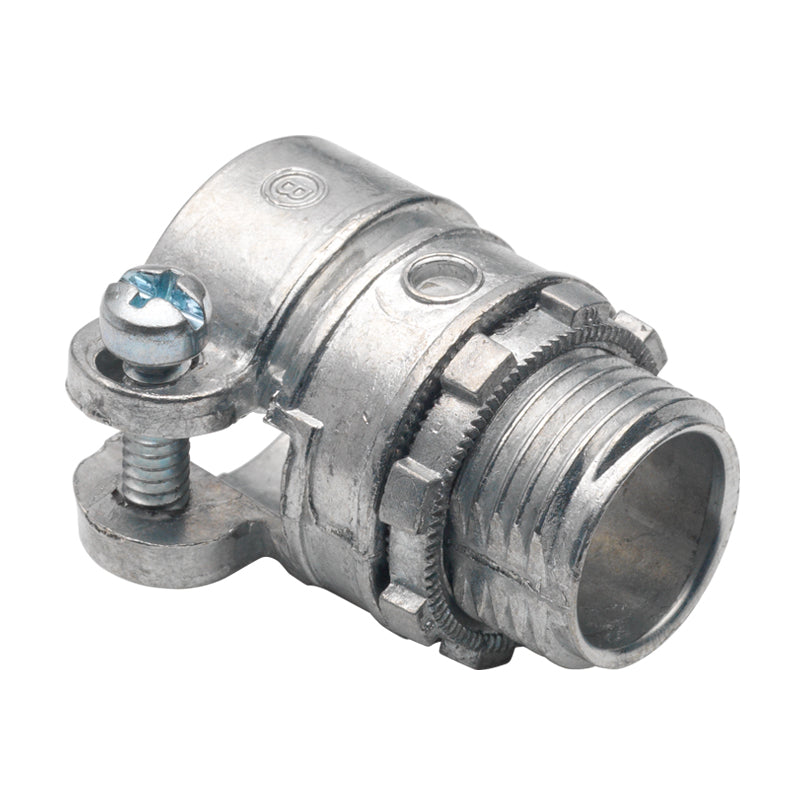

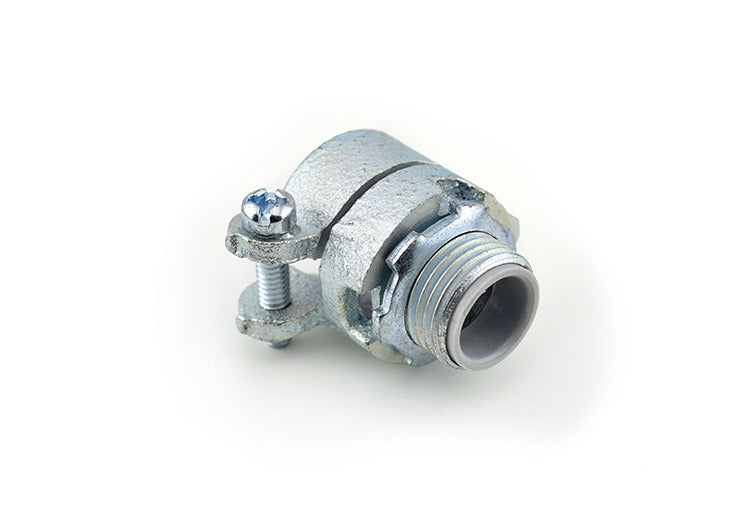

Nsi 407 Insulated Squeeze Connector 1/2 Inch

Product Description

The NSI 407 insulated squeeze connector is used to connect flexible metal conduit to a box or enclosure. It features an insulated throat that protects inner wiring up to 105°C. To secure flexible metal conduit, simply insert the conduit into the squeeze connector and tighten down a single flex screw. All Bridgeport squeeze connectors are cULus listed and RoHS compliant.

• Insulated throat protects inner wiring up to 105°C
• Secures flexible metal conduit by inserting conduit into the squeeze connector and tightening down a single flex screw
• All Bridgeport squeeze connectors are cULus listed and RoHS compliant

Product Highlights

The NSI insulated squeeze connector connects flexible metal conduit to a box or enclosure with an insulated throat.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 407

Technical Specifications

• Material: Malleable Iron
• Finish: Zinc Plated
• Pack Qty: 200
• GTIN: 00781747104076
• UPC: 781747104076
• EAN: 0781747104076
• UNSPSC: 39121419
• Ul Standard: UL-514B
• Application: Used to connect flexible metal conduit to box or enclosure. Insulator rated 105 degree C.
• Angle: 180 Deg
• Brand: Bridgeport
• Conductor Range: .86 - .92 O.D
• Connector Type: Squeeze
• Manufacturer: NSi Industries
• Number of Conductors: 1 Cable
• Size: 1/2
• Special Features: HCF
• Standard: UL
• Trade Size: 1/2
• Type: Connector
