Nsi 4-600ll4 double screw lug aluminum 4 600-2

Brand: NSI
SKU: 4-600LL4
Availability: In Stock

Ships same day if ordered by 12 pm
$199.25
$199.25
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

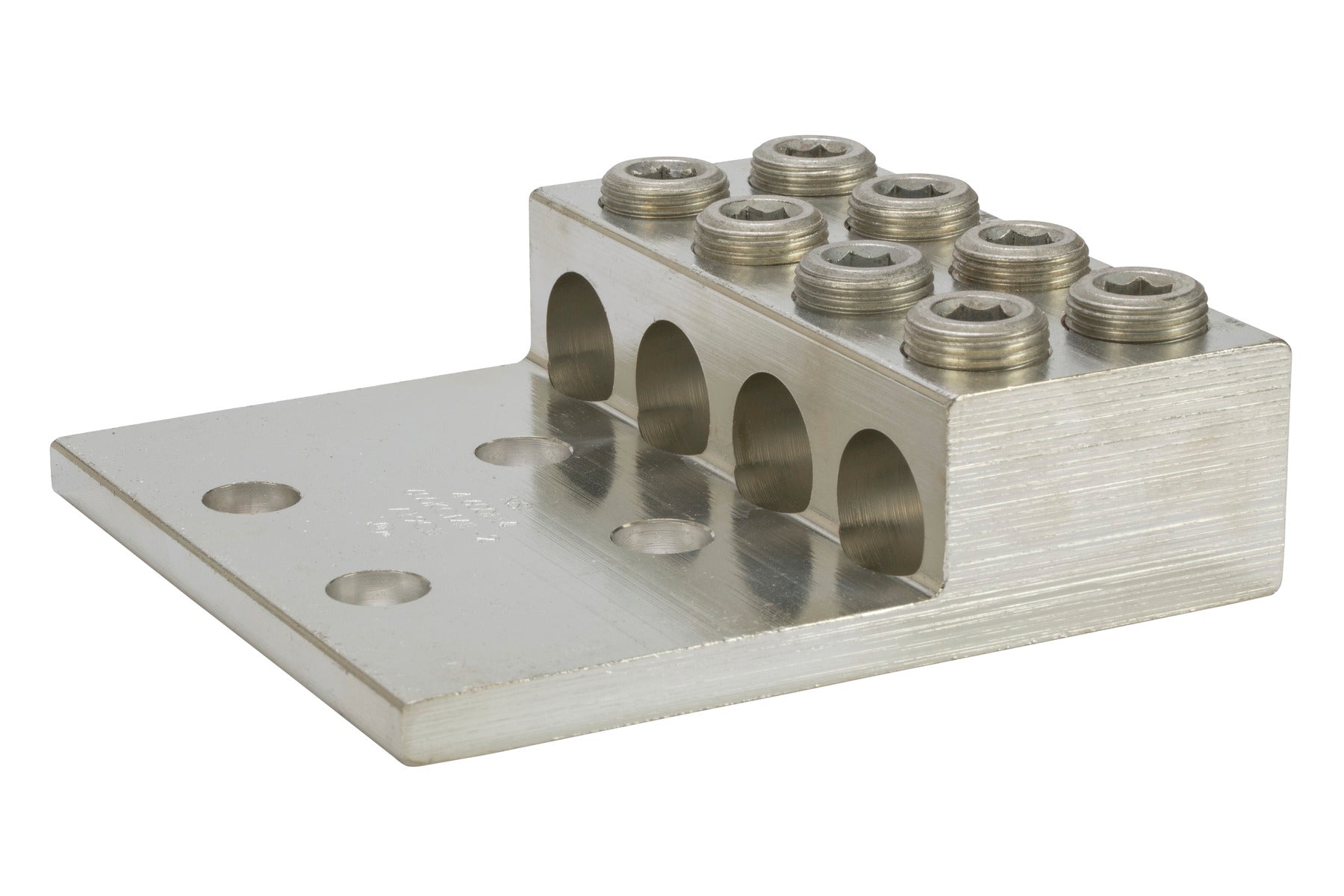

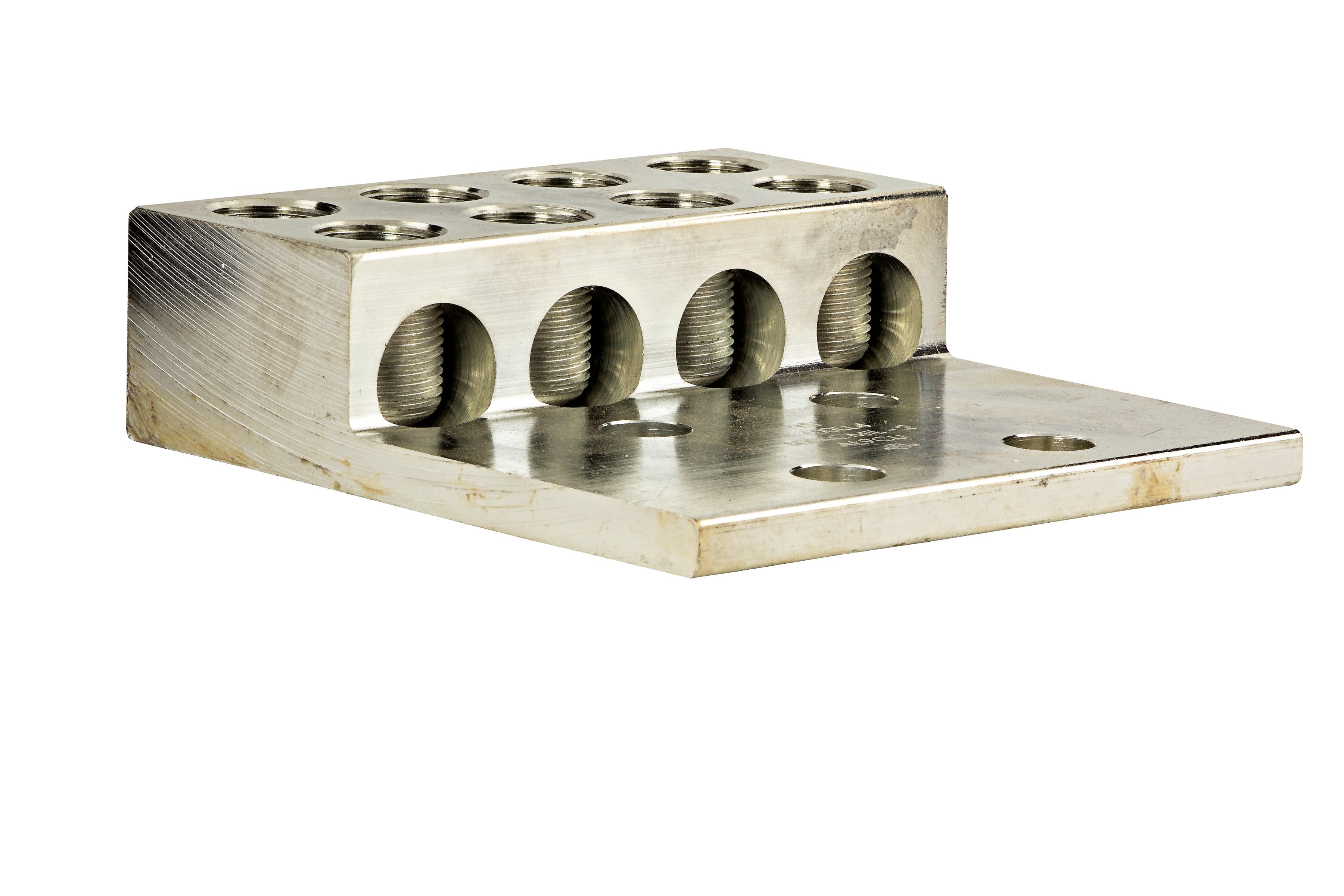

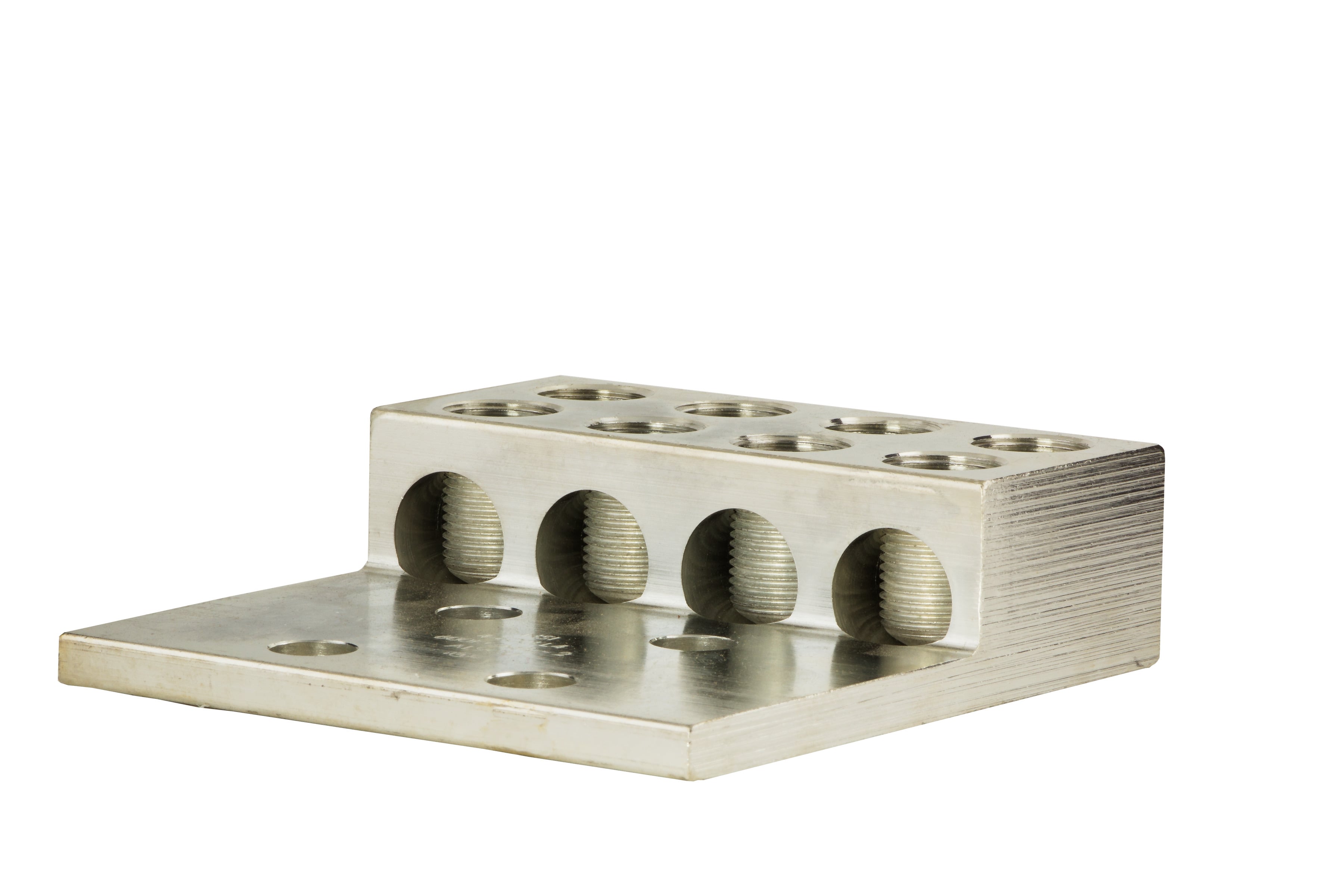

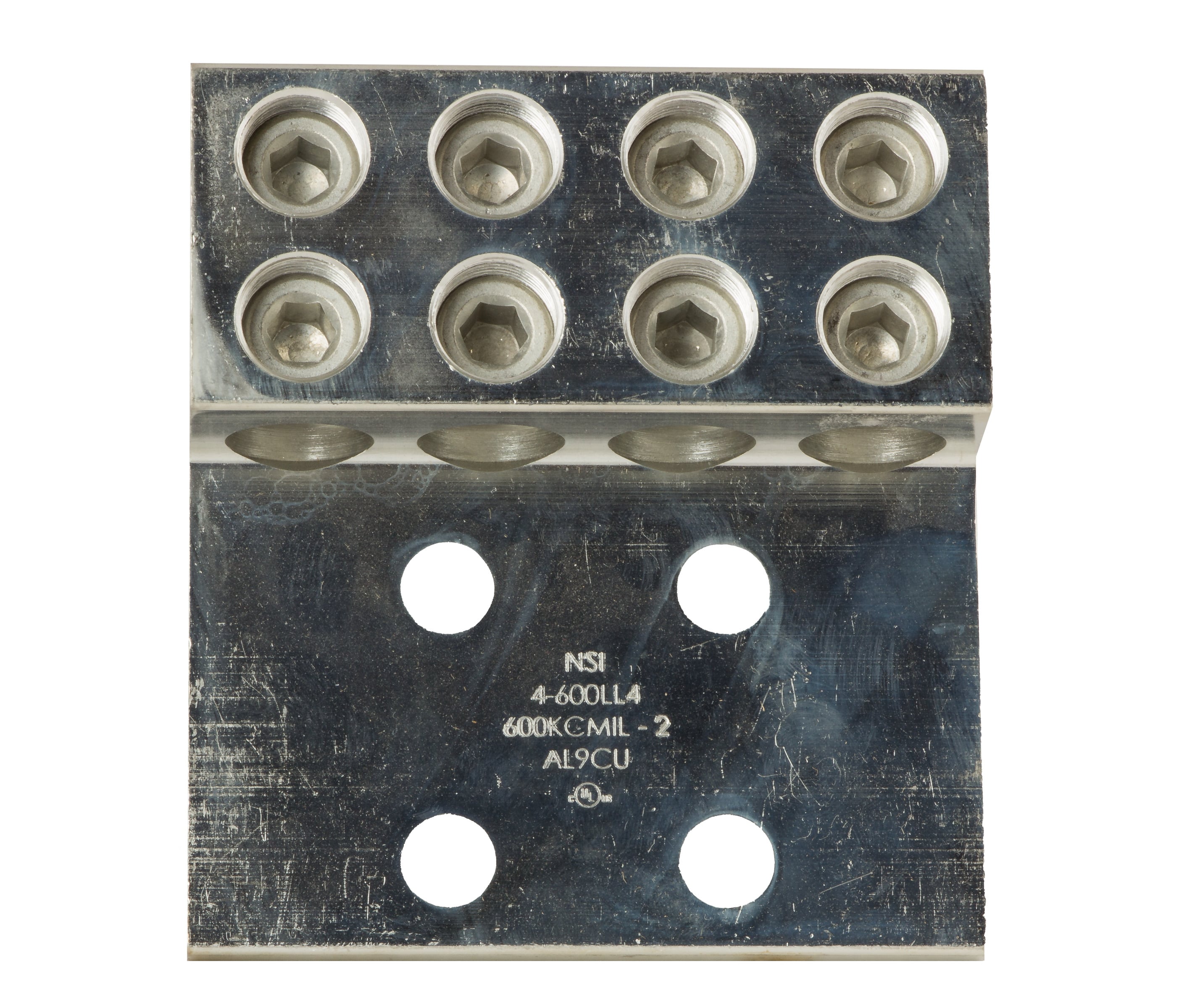

The NSI 4-600LL4 is a large size set-screw connector with multiple mounting, NEMA spaced holes for a secure connection. It is made of 6061T-6 aluminum alloy and tin plated for low contact resistance. This lug is suitable for use with copper or aluminum conductors.

  • Large size set-screw connectors
  • Multiple mounting, NEMA spaced holes
  • Made of 6061T-6 aluminum alloy

Product Highlights

The NSI 4-600LL4 double screw lug is designed for use with copper or aluminum conductors and provides a secure, turn-prevent connection.

Product Information

Standard Information

  • Brand: NSI
  • Manufacturer Part Number: 4-600LL4
  • Country of Origin: US
Technical Specifications
Voltage Rating
600 V
Material
6061T-6 Aluminum Alloy
Finish
Tin Plated
Pack Qty
2
GTIN
662381001764
UPC
662381001764
EAN
0662381001764
UNSPSC
39121466
Ul Standard
UL 486A-486B
Conductor Type
Aluminum, Copper
Tang Length
3.25
Hole Spacing
1.758
Wire Range
600 MCM - 2 AWG
Assortment
Aluminum Mechanical Terminations
Type
Dual Rated Double Screw
Bolt/Stud Size
9/16 in
Conductor Range
2 AWG to 600 kcmil
Number of Ports
4
Electrical Ratings
600 VAC
Hex Size
3/8 in
Height
1.51 in
Width
5 in
Length
5-1/2 in
Series
LL4
PRODUCT GROUP
Power Connectors and Grounding
Product Group (L2)
Power Connectors and Grounding
Pin Count (Number of Poles)
4
Primary Parent Category
Mechanical Terminals
Product Assortment
Aluminum Mechanical Terminations
PRODUCT CATEGORY
Mechanical Connectors
Product Category (L3)
Mechanical Connectors
Product Family (L1)
Connectivity
PRODUCT HEIGHT (IN)
1.51
PRODUCT LENGTH (IN)
5.500
PRODUCT LINE
Mechanical Terminals
Tang Thickness (IN)
0.38
Tang Width (IN)
5
TITLE
Dble Screw Lug (4) 600-2
Transformer KVA Size (3 )
600 V
UL File #
E155027
UPC w/ check digit
662381001764
VOLTAGE RATING
600 V
Product Line (L4)
Mechanical Terminals
PRODUCT NUMBER
4-600LL4
Product Series
LL4
PRODUCT WIDTH (IN)
5.000
Screw Material
No
Short Description (invoice)
Double Scrw Lug Aluminum 4 600-2
SKU
4-600LL4
Strip Length (in)
0.38
Additional Title
Double Scrw Lug Aluminum 4 600-2
DATE LAST UPDATED
10/5/2023
EAN w/ check digit
0662381001764
Fits Bolt Size (in)
3/8
COUNTRY OF ORIGIN
US
Application
Terminate
BRAND
NSI
CERTIFICATIONS & STANDARDS
cULus, UL Listed
MANUFACTURER
NSI Industries
MATERIAL
6061T-6 Aluminum Alloy
Max Temperature (C)
90
Min Installation Temperature (C)
90
Pricing Group
CONN-DUALMECH
Number of Conductors/Circuits/Terminals
4
Modes
No
KEYWORDS
NSI 4-600LL4 Dble Screw Lug (4) 600
Suitable For Use With
Copper and Aluminum Conductors
