NSI 4/0SR Splicer Reducer, 6 to 4/0 AWG Aluminum/Copper Conductor

Product Description

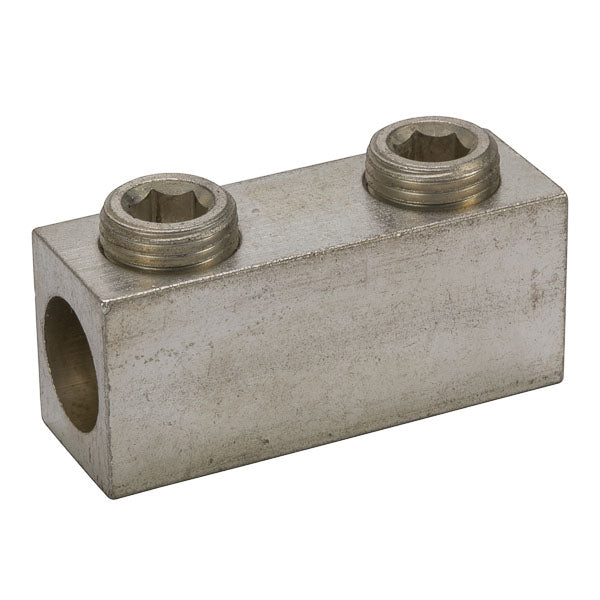

The NSI 4/0SR Splicer Reducer is designed for splicing two copper or aluminum wires of different sizes. It is made from 6061T-6 aluminum alloy and features electro-tin plating to minimize contact resistance. This reducer connects wires from six AWG to four AWG standards and is suitable for both copper and aluminum conductors, ensuring versatility across various applications.

• Splices two copper or aluminum wires of different sizes.
• Constructed from durable 6061T-6 aluminum alloy.
• Rated for up to 600 volts with a maximum temperature rating of ninety degrees Celsius.

Product Highlights

This splicer reducer is designed for electrical wiring applications. It ensures reliable connections between different wire gauges and meets standards for safe and efficient electrical installations.

Product Information

Standard Information

• Dimensions: 2.31 inches long x 0.81 inches wide x 1 inch high
• Material: Aluminum

Technical Specifications

• Conductor Size: 6 AWG to 4/0 AWG
• Voltage Rating: 600 VAC
• Temperature Rating: 90 degrees C
• Connection Type: Mechanical
• Insulation: Non-Insulated
• Number of Conductors: 2
• Finish: Electro-Tin Plated
