Nsi 350T-2 T2 stacked step panel lug

Product Description

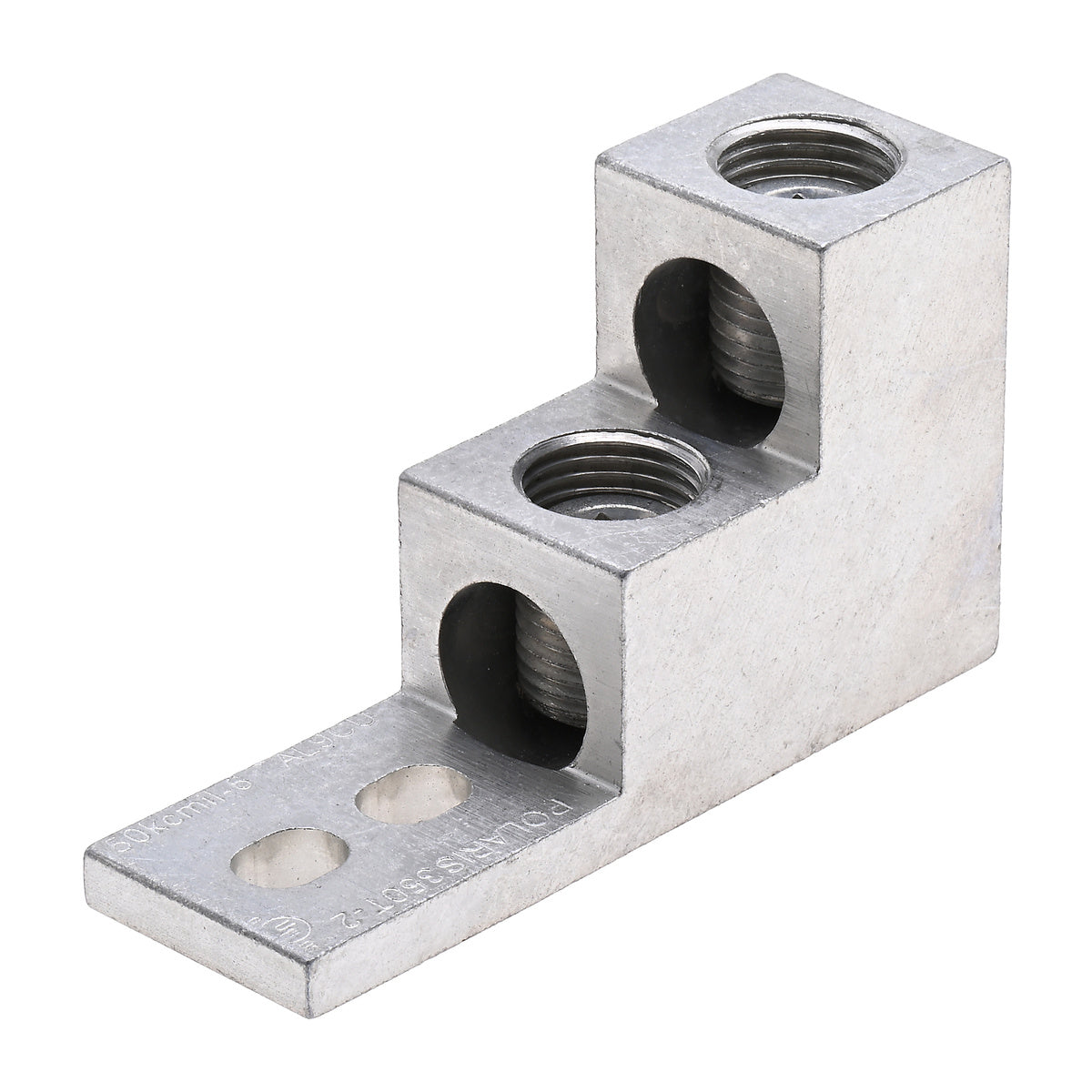

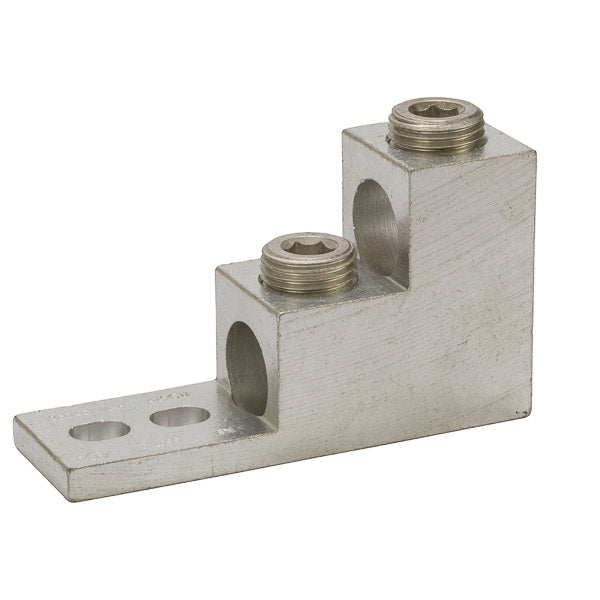

The NSI 350T-2 T2 Stacked Step Panel Lug accommodates aluminum or copper conductors ranging from 6 AWG to 350 kcmil. This stacked lug features a 5/16 in stud and is constructed from 6061T-6 aluminum alloy with electro-tin plating for low contact resistance. It is suitable for use with both copper and aluminum conductors.

• Large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector
• Made of 6061T-6 aluminum alloy
• Tin plated for low contact resistance

Product Highlights

This step panel lug is designed to minimize width while providing secure connections for a range of conductor sizes.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 350T-2

Technical Specifications

• Series: T2
• Type: Stacked
• Conductor Size: 6 AWG to 350 kcmil
• Conductor Type: Aluminum/Copper
• Stud Size: 5/16 in
• Number of Bolt Holes: 2
• Material: Aluminum
• Finish: Electro-Tin Plated
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Tongue Size: 1.56 in W x 0.25 in THK
• Mounting Hole Spacing: NEMA standard of 1.75"
• Listing: UL486A/B
• Wire Range: 350 MCM – 6 AWG
• Tang Thickness: 0.25
• Tang Length: 1.56
• Hole Spacing: 0.6
