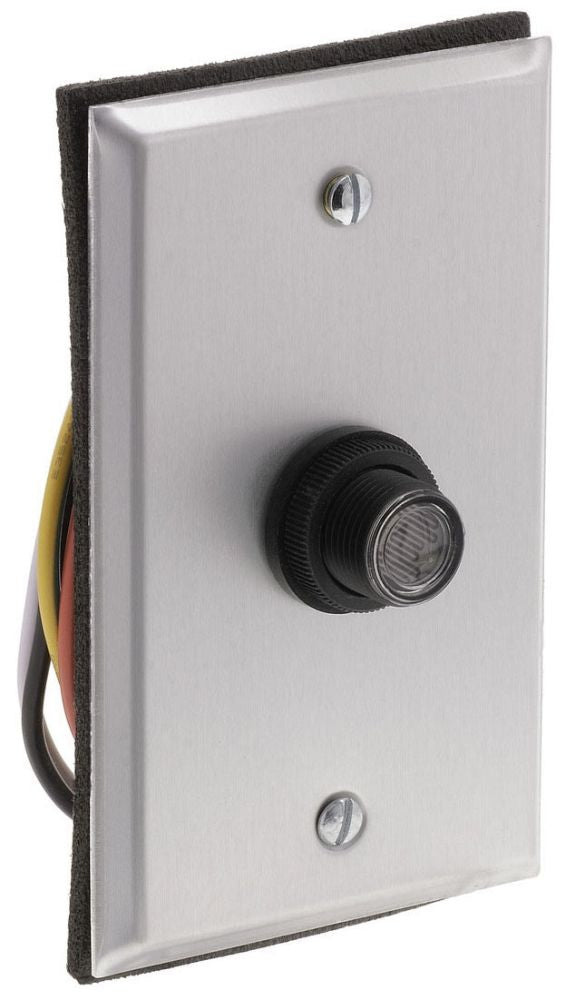

NSI 3010 Thermal Flush Mounting Photocontrol 120 Volt AC SPST Black Tork

Product Description

The NSI Tork 3010 is a thermal flush mounting photocontrol designed for 120 Volt AC systems. This photocontrol offers reliable operation for outdoor lighting systems. Its construction includes a durable Lexan housing that withstands various environmental factors. The device measures one inch wide, one and a half inches deep, and two inches high. It comes with nine inches of 16 AWG wire leads for easy installation.

• Time delay setting of up to two minutes to avoid false activation.
• Compatible with screw base CFLs and suitable for lawn lighting and walkways.
• Temperature rated for use between -40°F and 140°F.

Product Highlights

The NSI Tork 3010 photocontrol is designed for dusk to dawn operation. It features an SPST contact configuration and can be mounted flush or in a junction box. This unit is UL listed and CSA certified, complying with ANSI standards.

Product Information

Standard Information

• Country of Origin: China
• Brand: NSI

Technical Specifications

• Voltage Rating: 120 Volt AC
• Load Rating: 2000 Watt Tungsten, 1800 VA Ballast
• Temperature Rating: -40 to 140°F
• Connection Type: 16 AWG, 9 Inch Wire Lead
• Contact Configuration: SPST
• Power Consumption: Less than 1 Watt
• Sensing Range: ON: 1 - 5 FC, OFF: 3 - 15 FC
• Time Delay: Up to 2 minutes
