Product Description

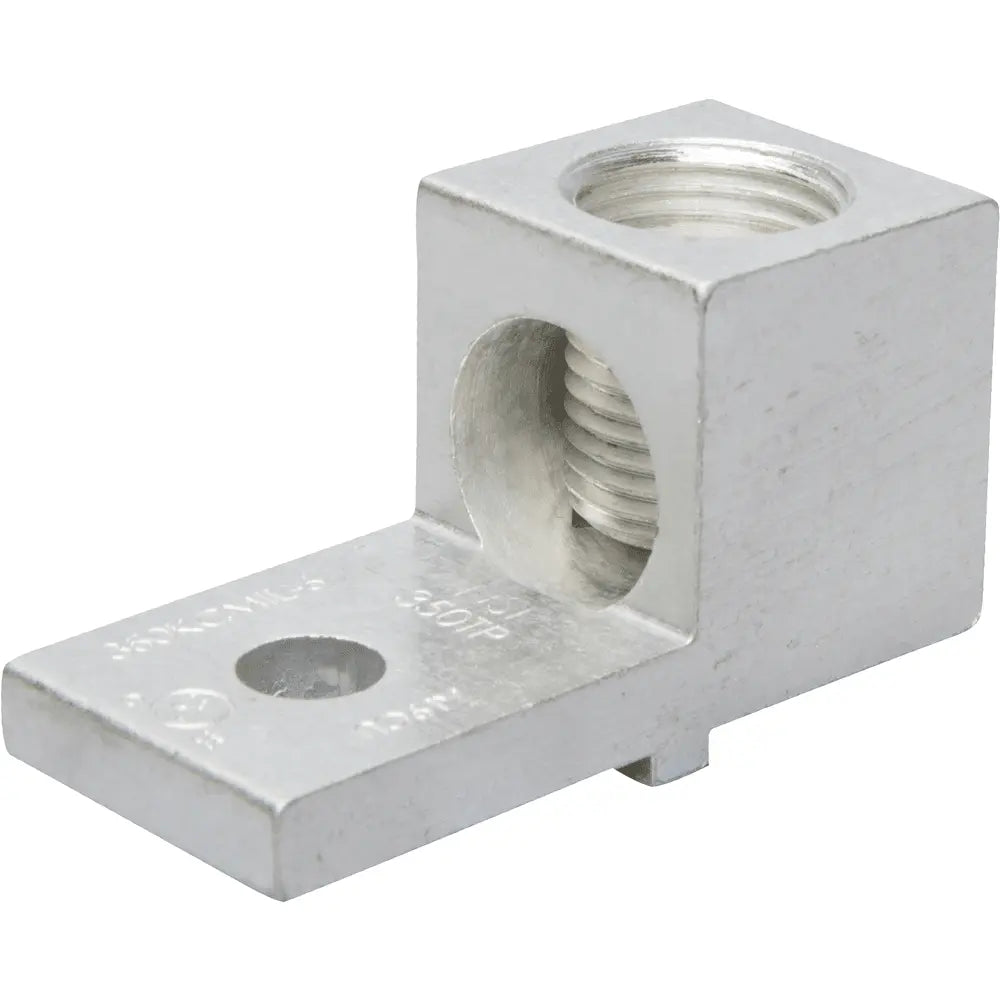

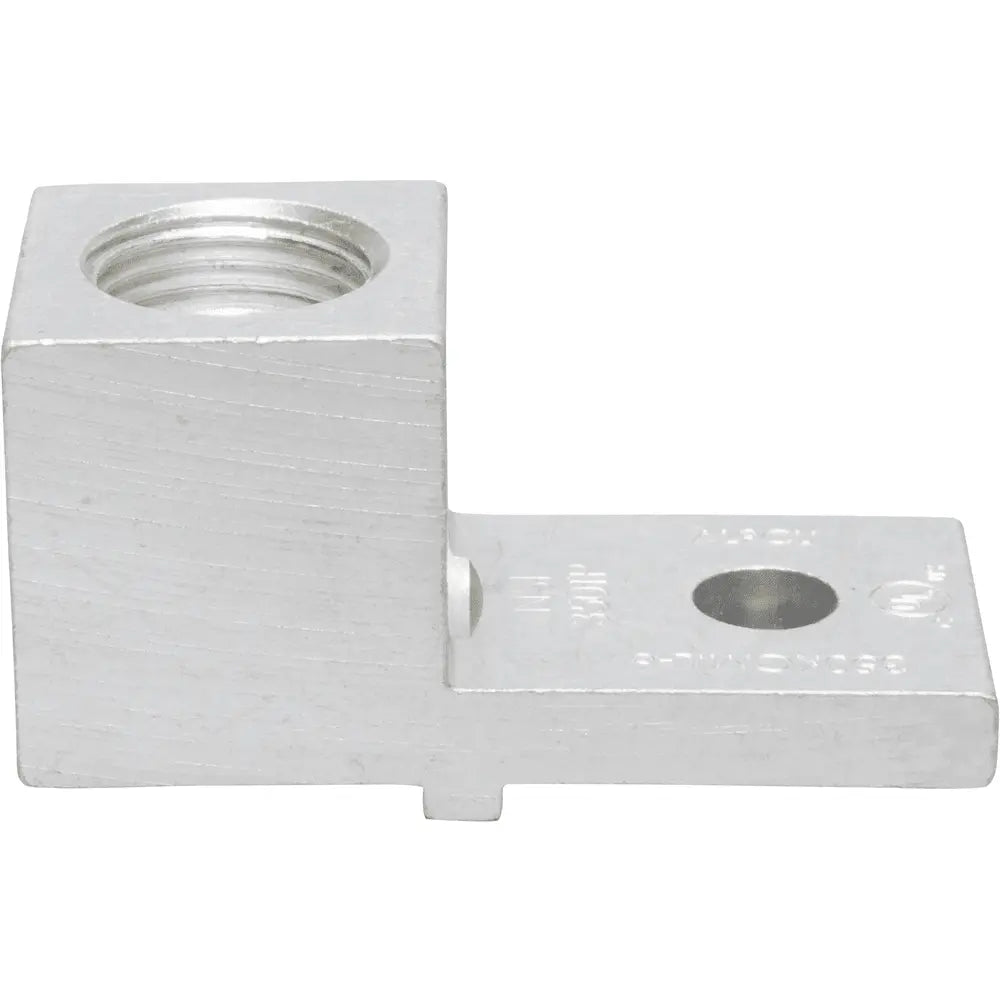

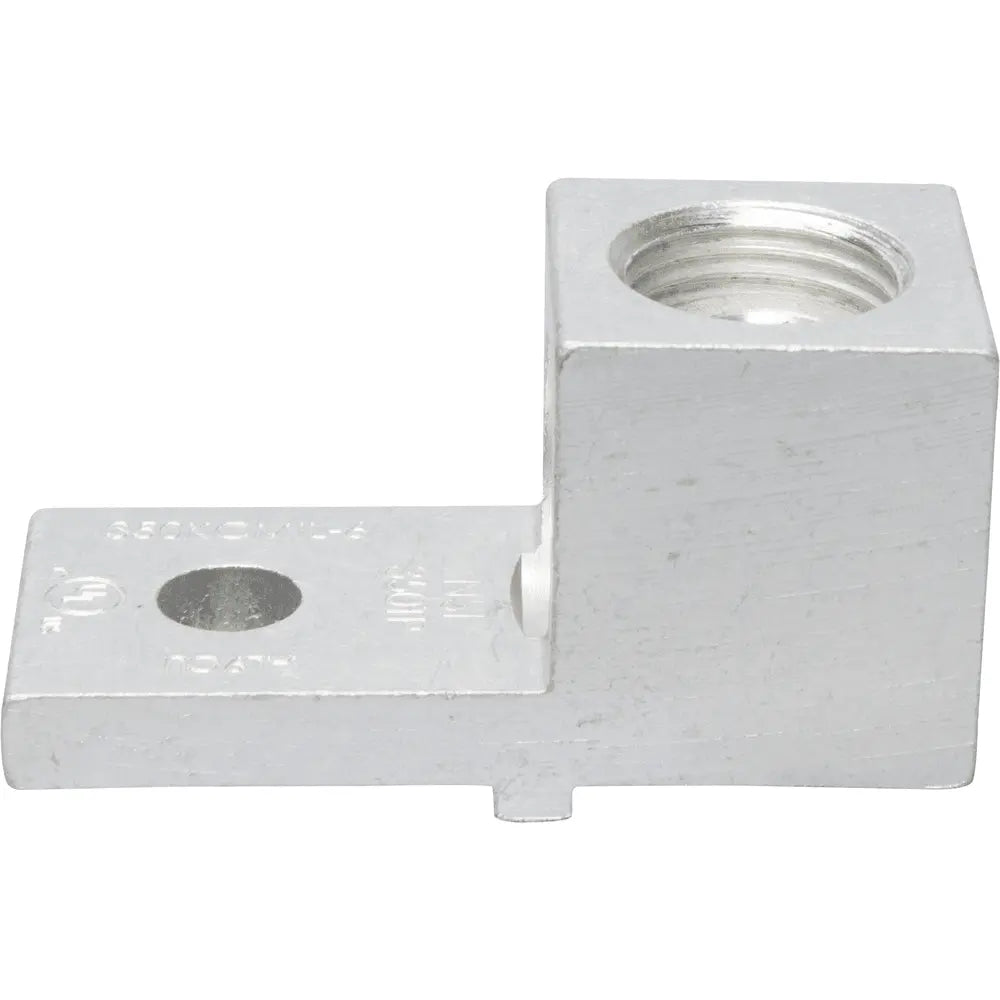

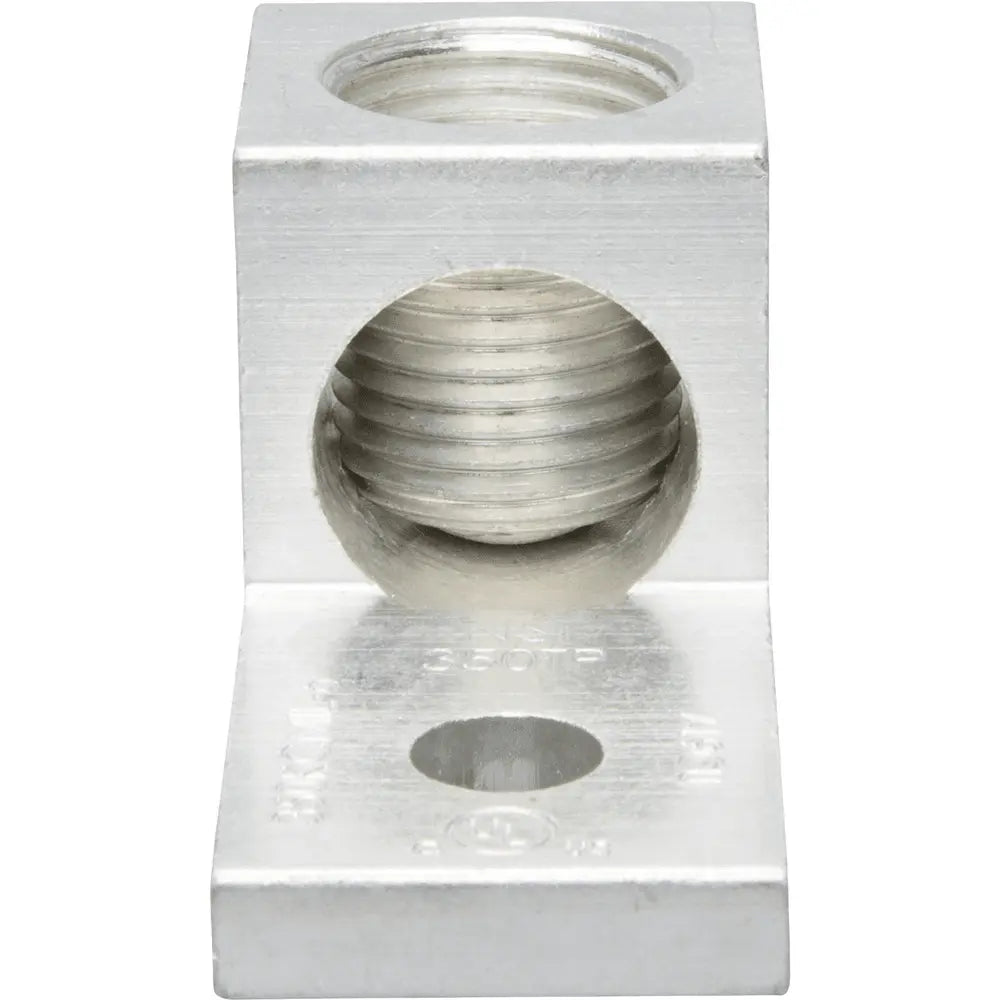

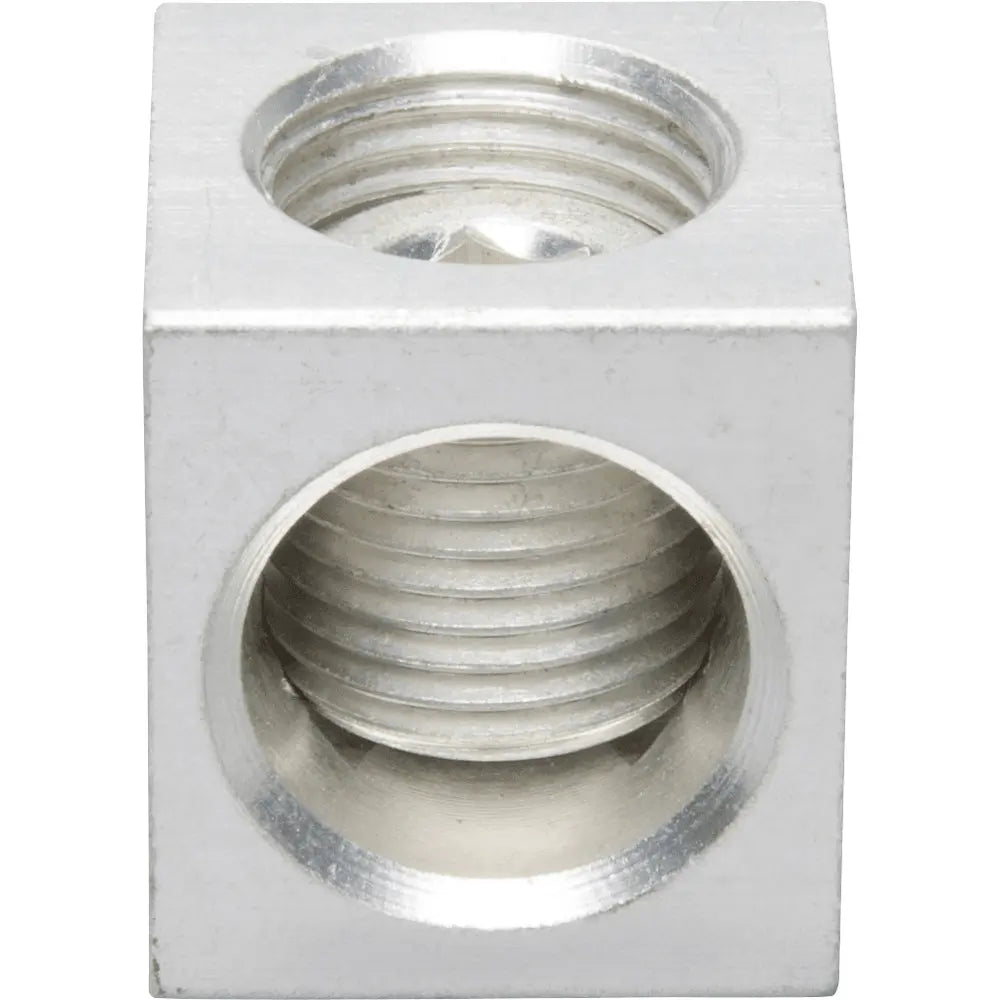

The NSI 300TP Turn Prevent Lug is designed for wiring applications. This lug accommodates conductor sizes ranging from six AWG to three hundred MCM. It is made of aluminum, specifically 6061T-6 alloy, and features electro-tin plating for low contact resistance. These lugs are suitable for use with both copper and aluminum conductors, making them versatile for various electrical projects.
- Rated for 600 volts with a maximum of 2000 volts per UL486B.
- Temperature rated up to 90 degrees Celsius.
- UL 486A/B listed for safety compliance.
Product Highlights
This product is ideal for trade professionals working with electrical installations.
Product Information
Standard Information
-
Brand: NSI
-
Manufacturer: NSI
Technical Specifications
-
MPN: 300TP
-
Material: Aluminum
-
Type: Mechanical Lugs
-
Voltage Rating: 600 VAC
-
Conductor Range: 6 AWG to 300 MCM
-
Stud Size: 7/16 inches
-
Number of Bolt Holes: 1
-
Dimensions: 2.00 inches L x 0.99 inches W x 1.13 inches H
-
Temperature Rating: 90 degrees Celsius
-
Finish: Electro-Tin Plated
