Product Description

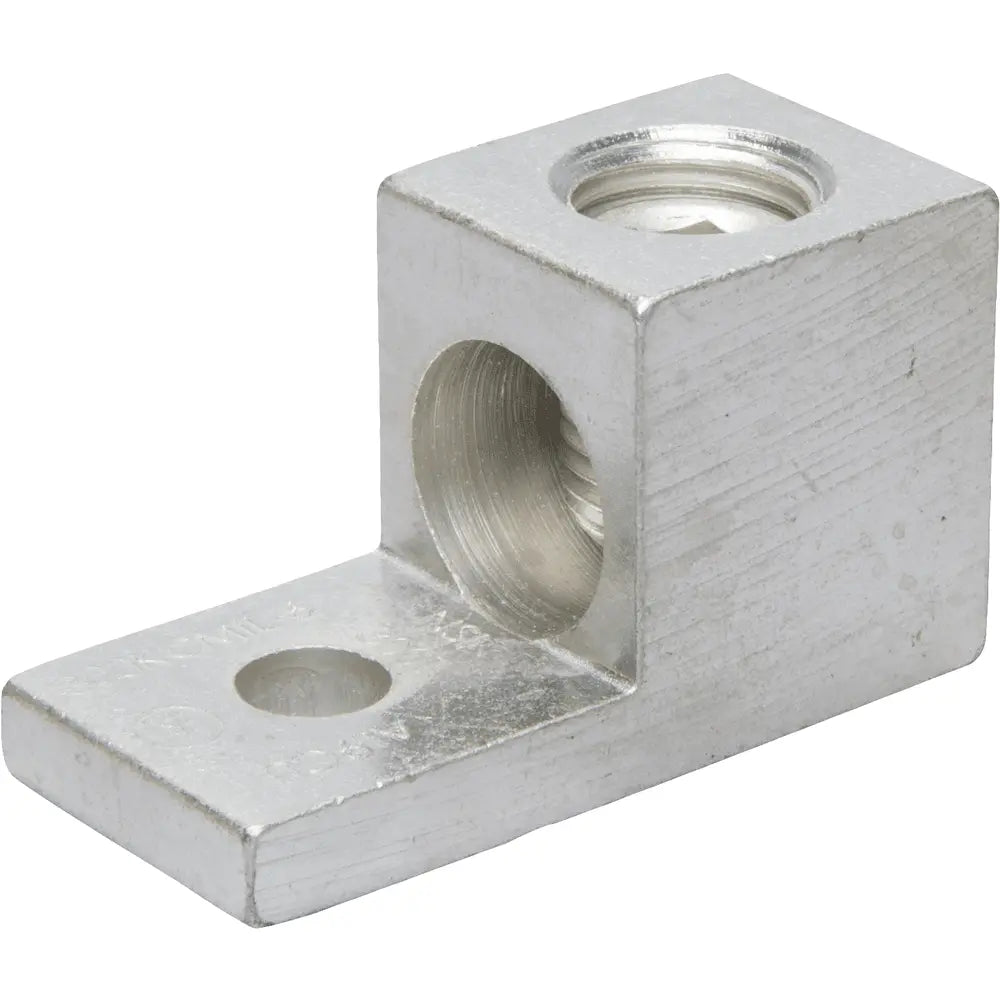

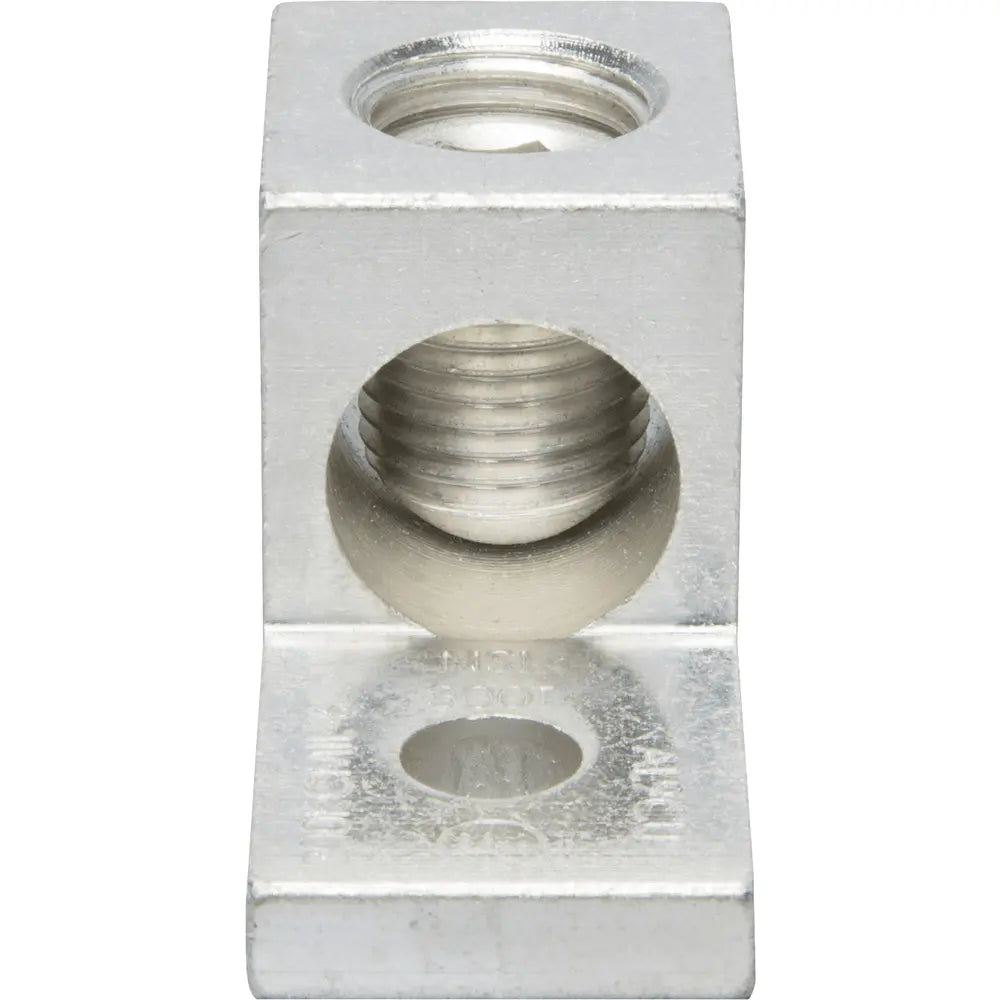

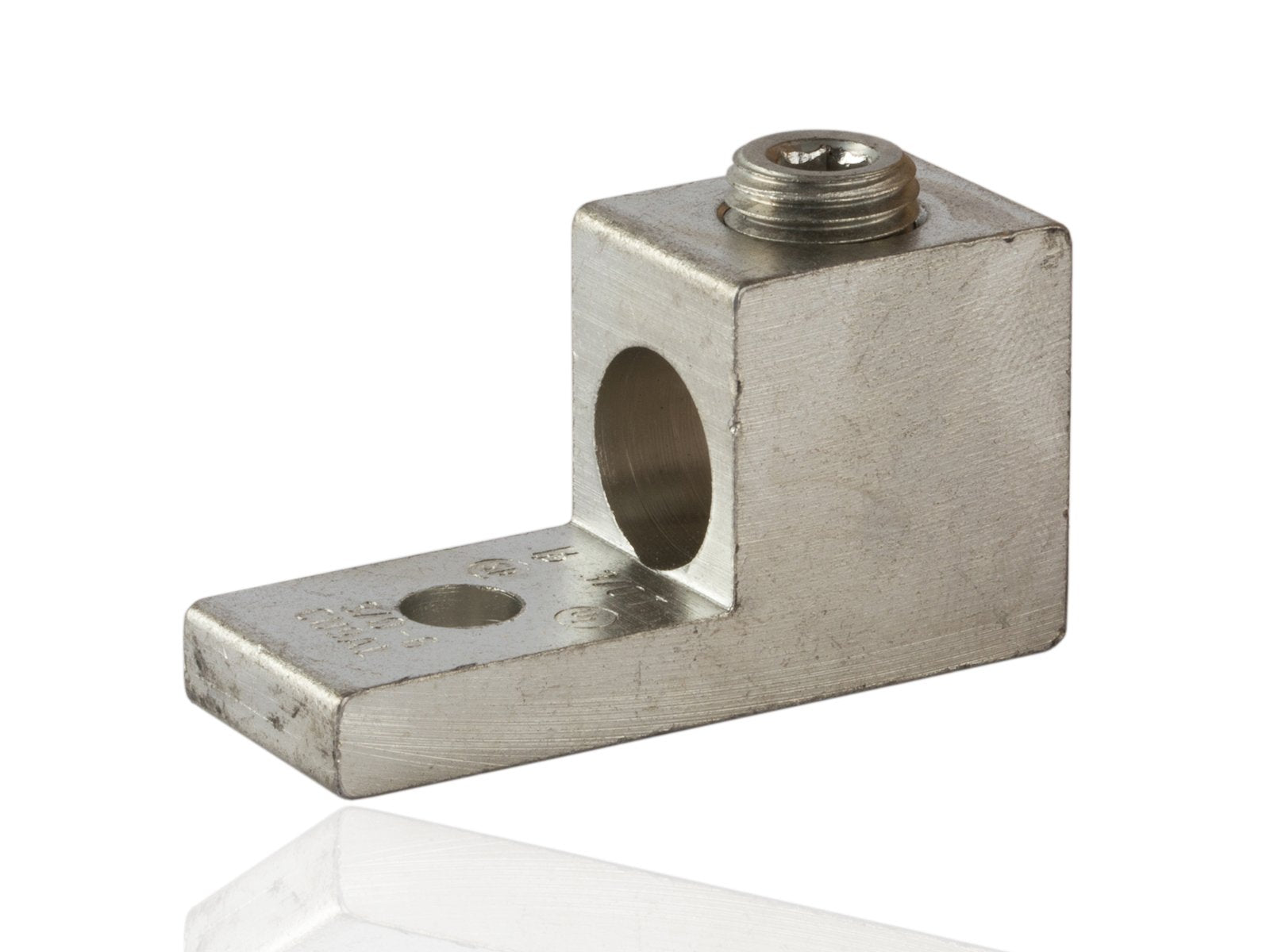

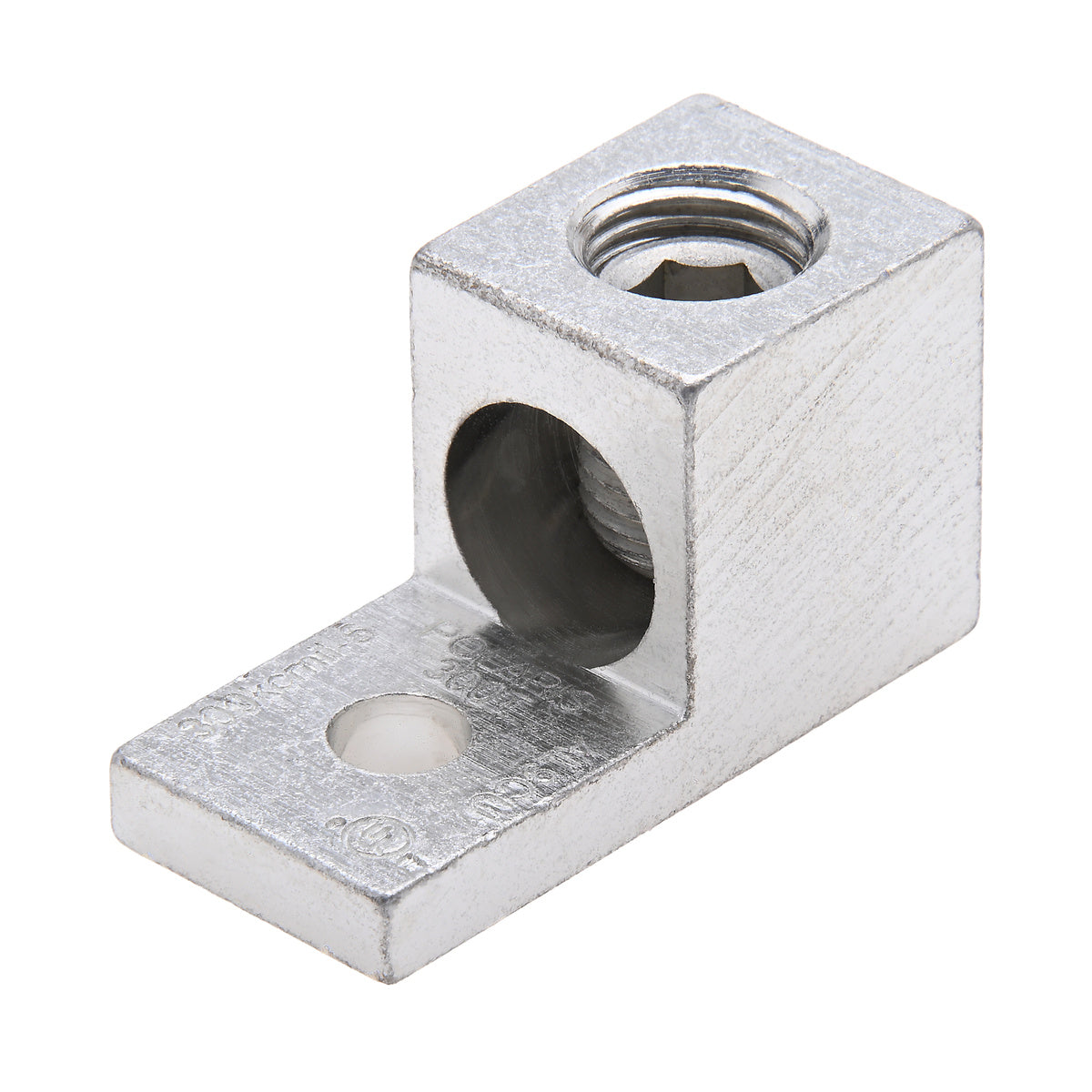

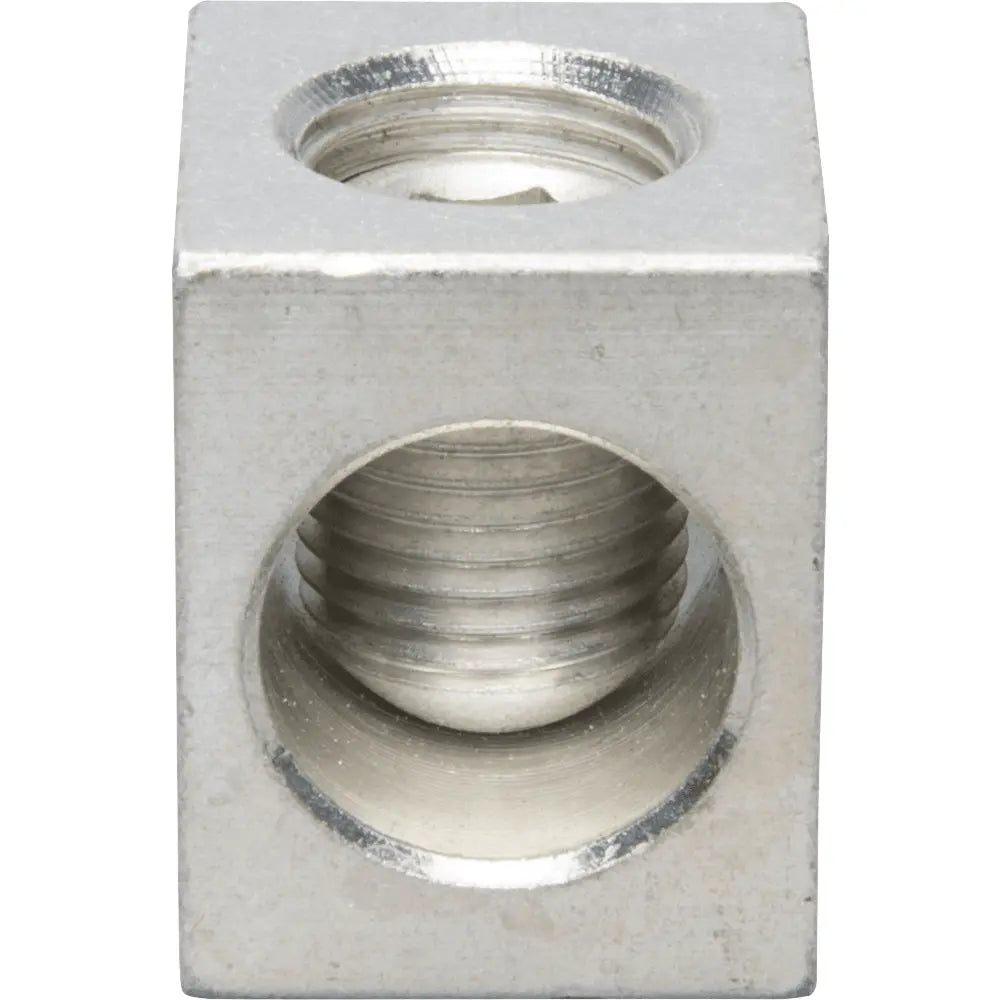

The NSI 300T aluminum dual rated lug accommodates conductors from 6 AWG to 300 MCM. It features a 5/16" bolt size and is suitable for use with both copper and aluminum conductors. This mechanical lug is non-insulated and designed for dry locations.
- Dual rated for copper and aluminum conductors
- Constructed from durable aluminum
- Suitable for use in dry locations
Product Highlights
This aluminum lug ensures a secure and reliable connection for a range of conductor sizes, ideal for various electrical applications.
Product Information
Standard Information
-
Brand: NSI
-
Manufacturer Part Number: 300T
-
Country of Origin: US
Technical Specifications
-
Type: Mechanical Lugs
-
Color: Gray
-
Width: 0.88 Inches
-
Height: 1.13 Inches
-
Length: 2.00 Inches
-
Material: Aluminum
-
Standard: cULus, UL486
-
Connection: Mechanical
-
Insulation: Non-Insulated
-
Voltage Rating: 600 VAC
-
Environmental Conditions: Dry Location
-
Number Of Mounting Holes: 1
-
Number Of Conductors/Ports (Main/Primary): 1
-
Series: T Series
-
Conductor Range: 6 AWG to 300 kcmil
-
Bolt/Stud Size: 5/16 in
-
Suitable For Use With: Copper and Aluminum Conductors
-
Number of Conductors: 1
-
Minimum Conductor Size: 6 AWG
-
Maximum Conductor Size: 300 KCMIL
-
Conductor Material: Aluminum/Copper
-
Pad Type: Straight
-
Screw Type: 5/16 Inch Hex Socket
-
Number of Pad Holes: 1
-
Pad Size: 1 Inch L x 0.88 Inch W x 0.25 Inch Thk
-
Stud Size: 0.328 Inch
-
Overall Length: 2 Inch
-
Approval: UL (Canada and US)
-
Temperature Rating: 90 Deg C
-
MPN: 300T
-
Brand: NSI
-
Reference ID: NSI300T
-
Conductor Size: 6 AWG to 300 MCM
-
Bolt Size: 5/16"
-
Mounting Hole: 0.33"
-
Wire Range: 300 MCM – 6 AWG
-
Finish: Aluminum
-
Electrical Ratings: 600 V
