Nsi 300T-2 Two-Port Step Panel Lug, 6 AWG to 300 MCM

Product Description

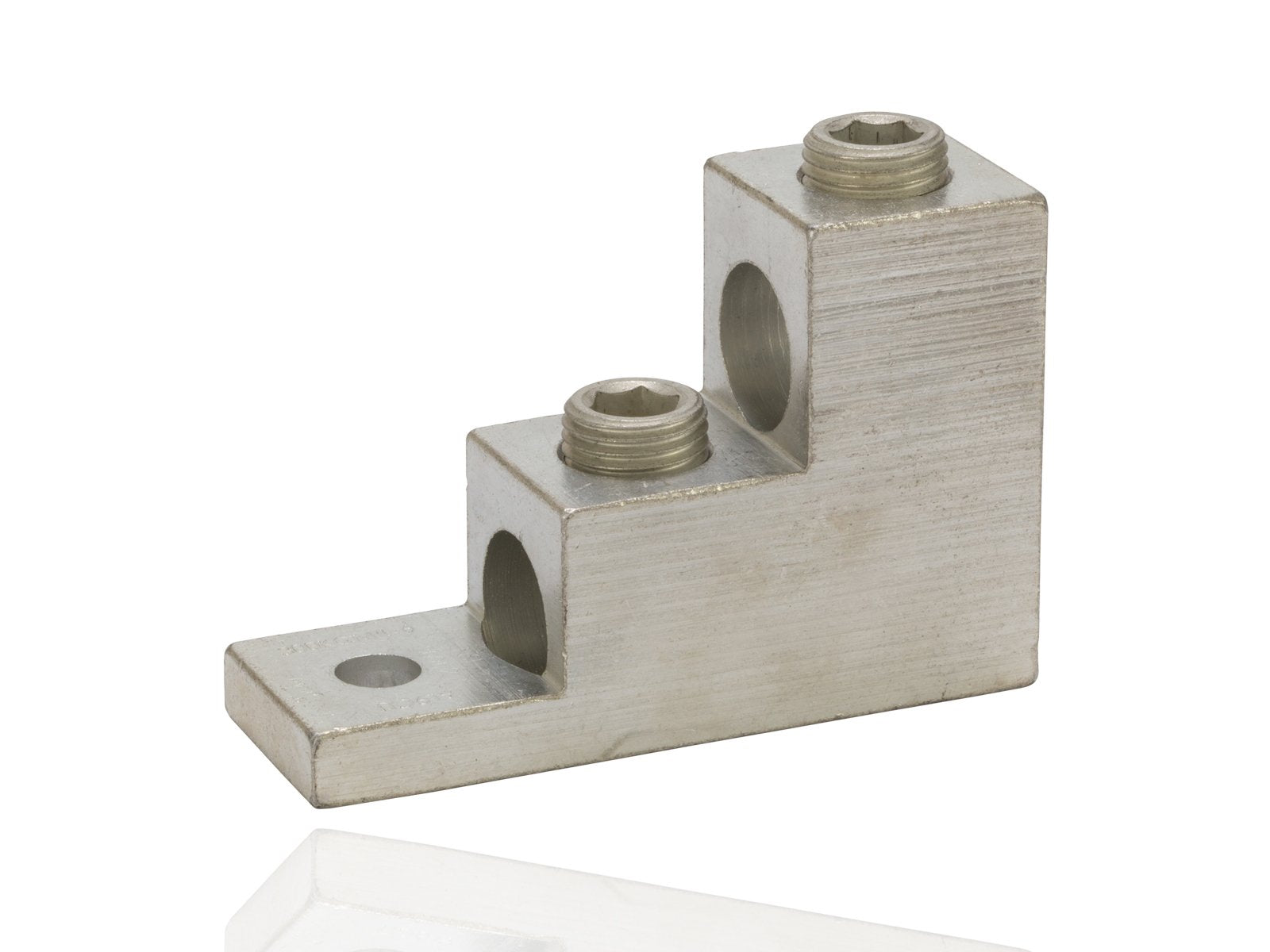

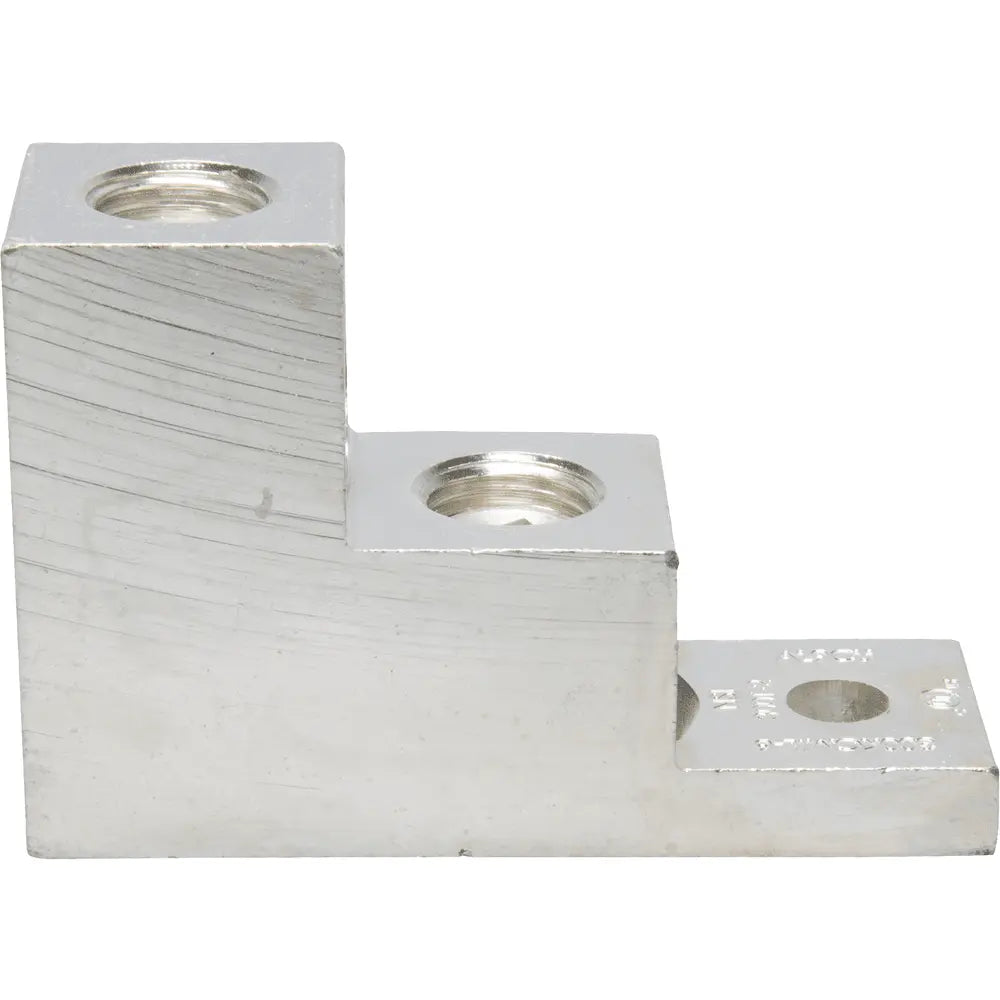

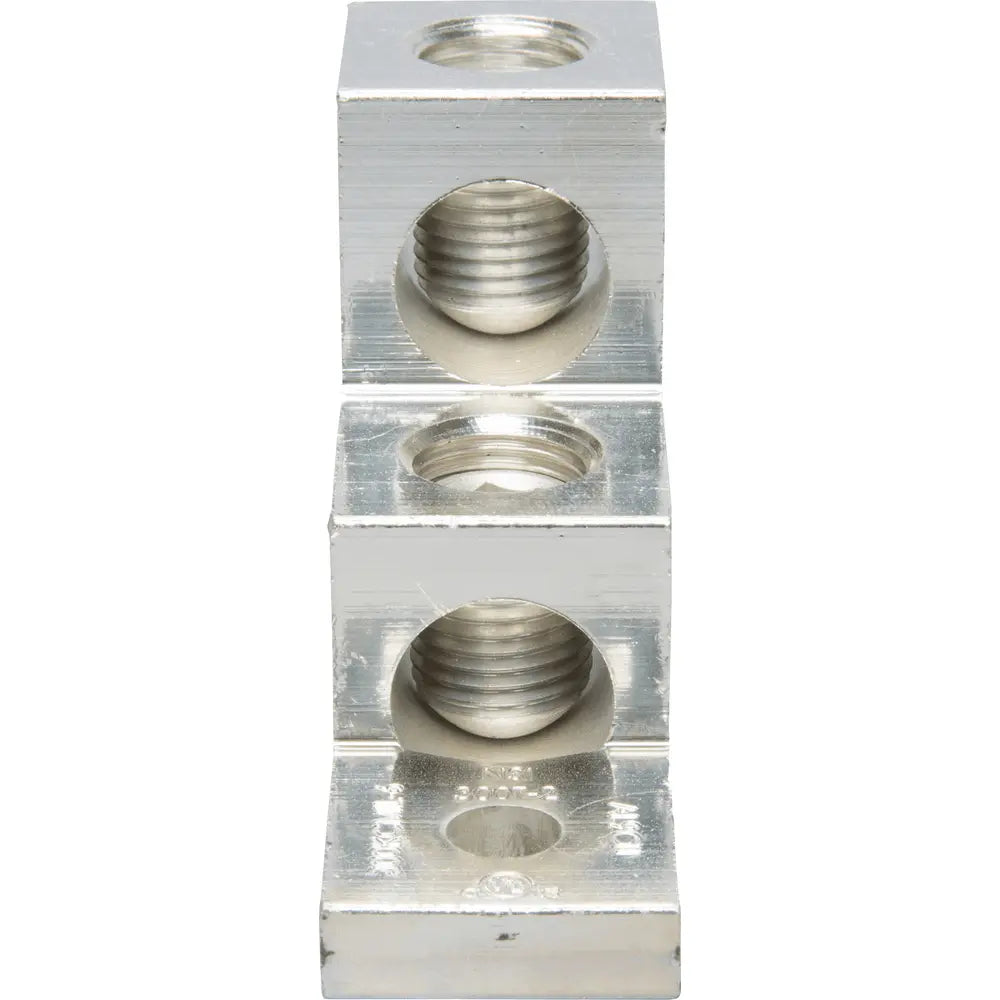

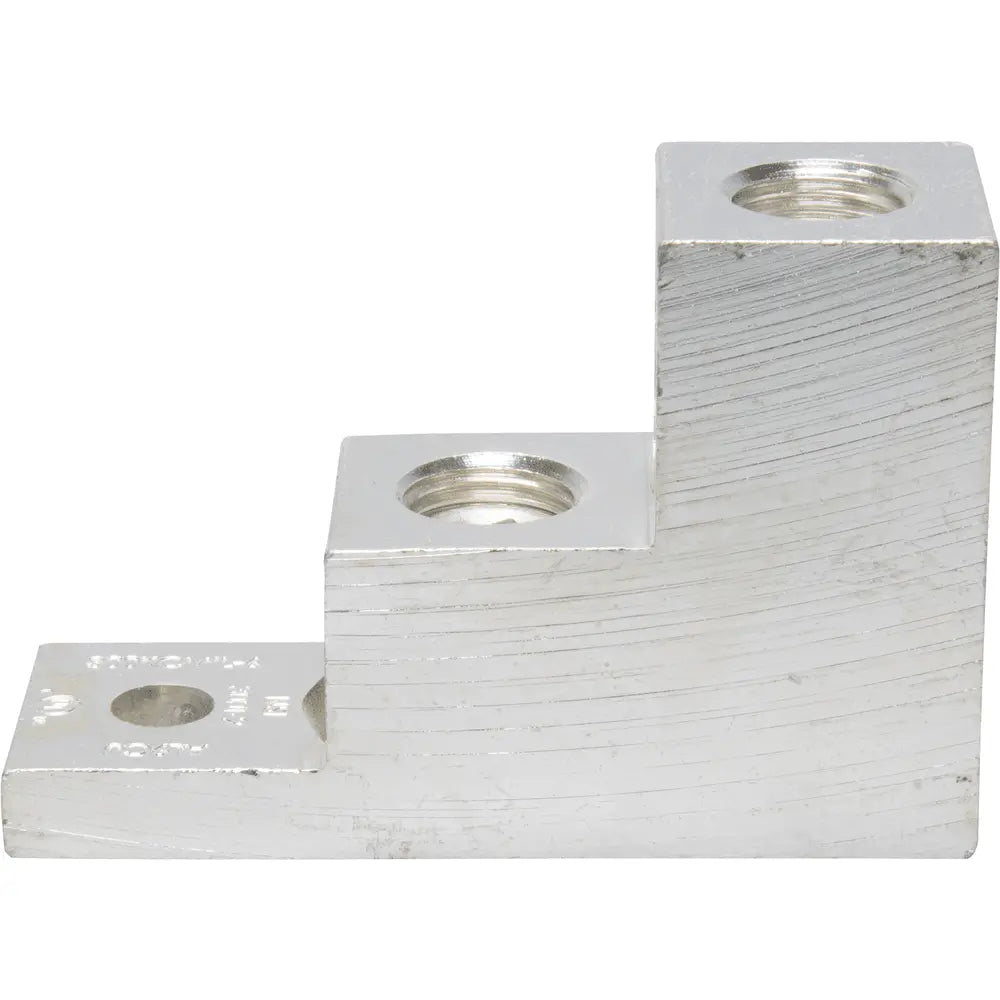

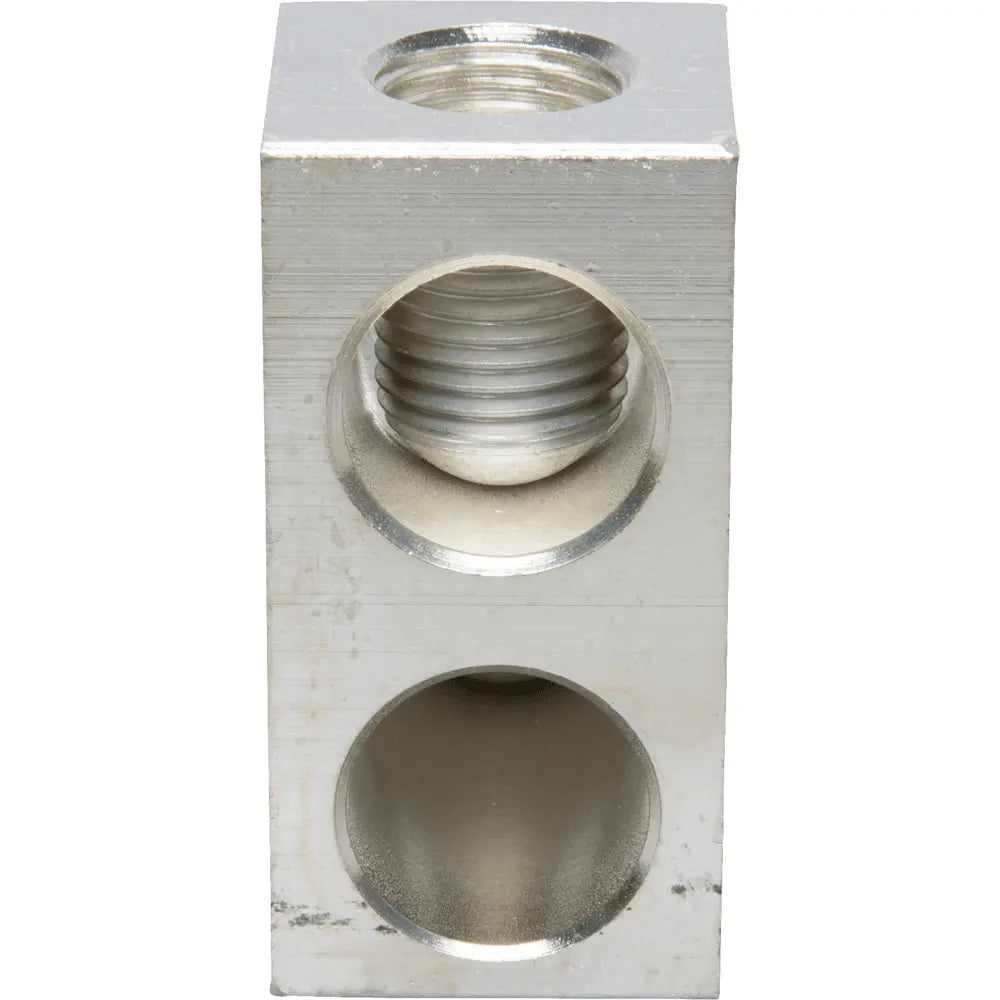

The NSI 300T-2 two-port stacked lug is a large-size set screw connector with wire holes stacked to minimize width. Constructed from 6061T-6 aluminum alloy and tin plated for low contact resistance. It is suitable for use with both copper and aluminum conductors. Rated to 600 volts, it has a temperature rating of 90 degrees C.

• Made of 6061T-6 aluminum alloy
• Electro-tin plated for low contact resistance
• For use with copper or aluminum conductors

Product Highlights

This two-port step panel lug is designed for minimizing connector width and is suitable for use with copper or aluminum conductors.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 300T-2
• Country of Origin: US

Technical Specifications

• Type: Mechanical Lugs
• Width: 1.00 Inches
• Height: 2.00 Inches
• Length: 3.00 Inches
• Material: Aluminum
• Standard: cULus
• Connection: Mechanical
• Insulation: Non-Insulated
• Voltage Rating: 600 VAC
• Country of Origin: US
• Environmental Conditions: Dry Location
• Number Of Mounting Holes: 1
• Conductor Range (Main/Primary): 6 AWG to 300 MCM
• Number Of Conductors/Ports (Main/Primary): 2
• Series: T2
• Temperature Rating: 90 deg C
• Conductor Size: 6 AWG to 300 kcmil
• Conductor Type: Aluminum/Copper
• Stud Size: 5/16 in
• Finish: Electro-Tin Plated
• Pad Type: Straight
• Screw Type: 5/16 Inch Hex Socket
• Number of Pad Holes: 1
• Approval: UL, CSA
• Mounting Hole Spacing: NEMA standard of 1.75"
• plating: Electro-tin plated
• Tang Thickness: 0.31
• Tang Length: 1
• Wire Range: 300 MCM – 6 AWG
