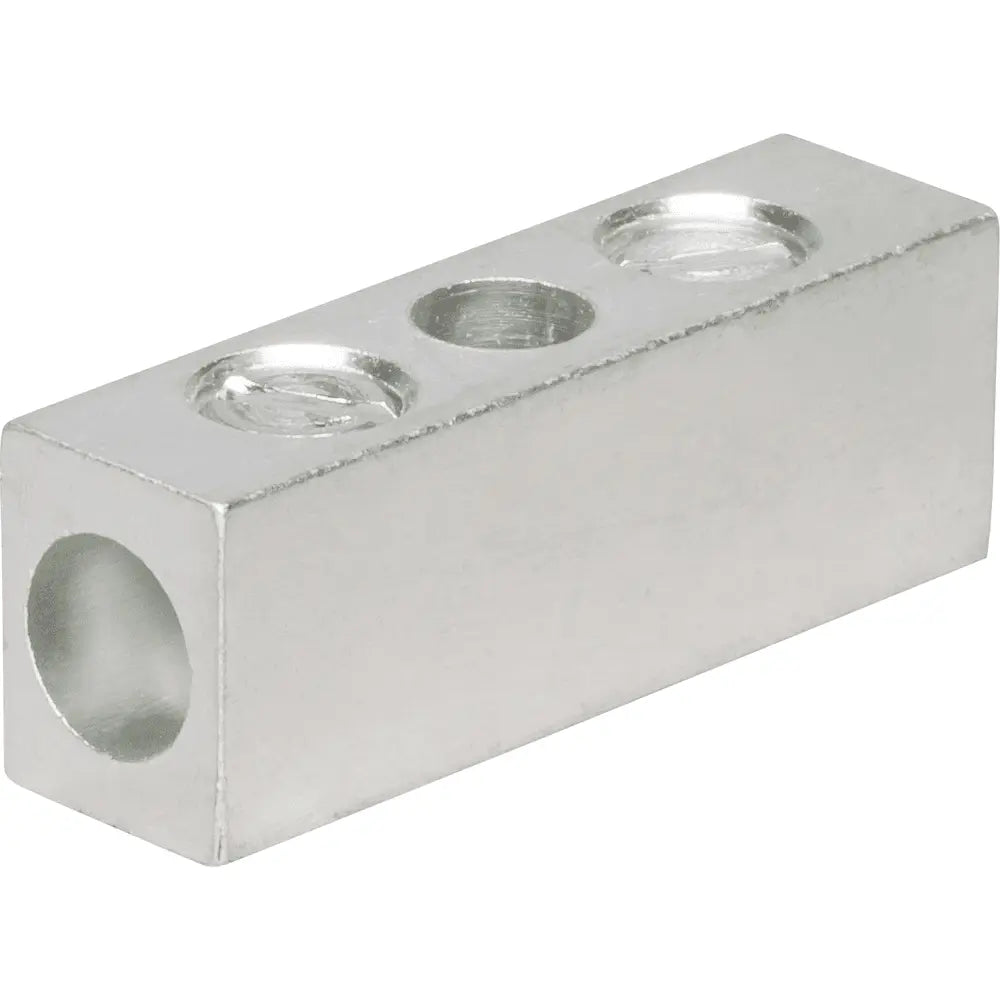

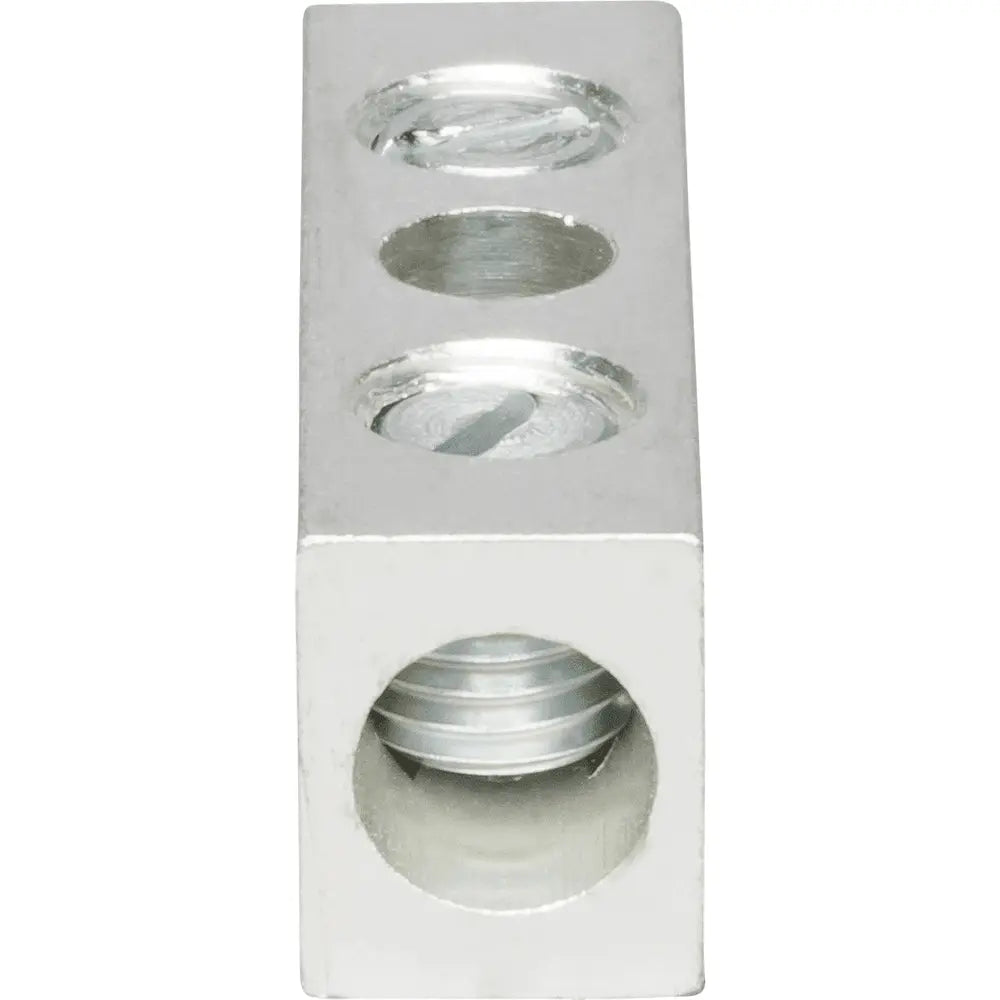

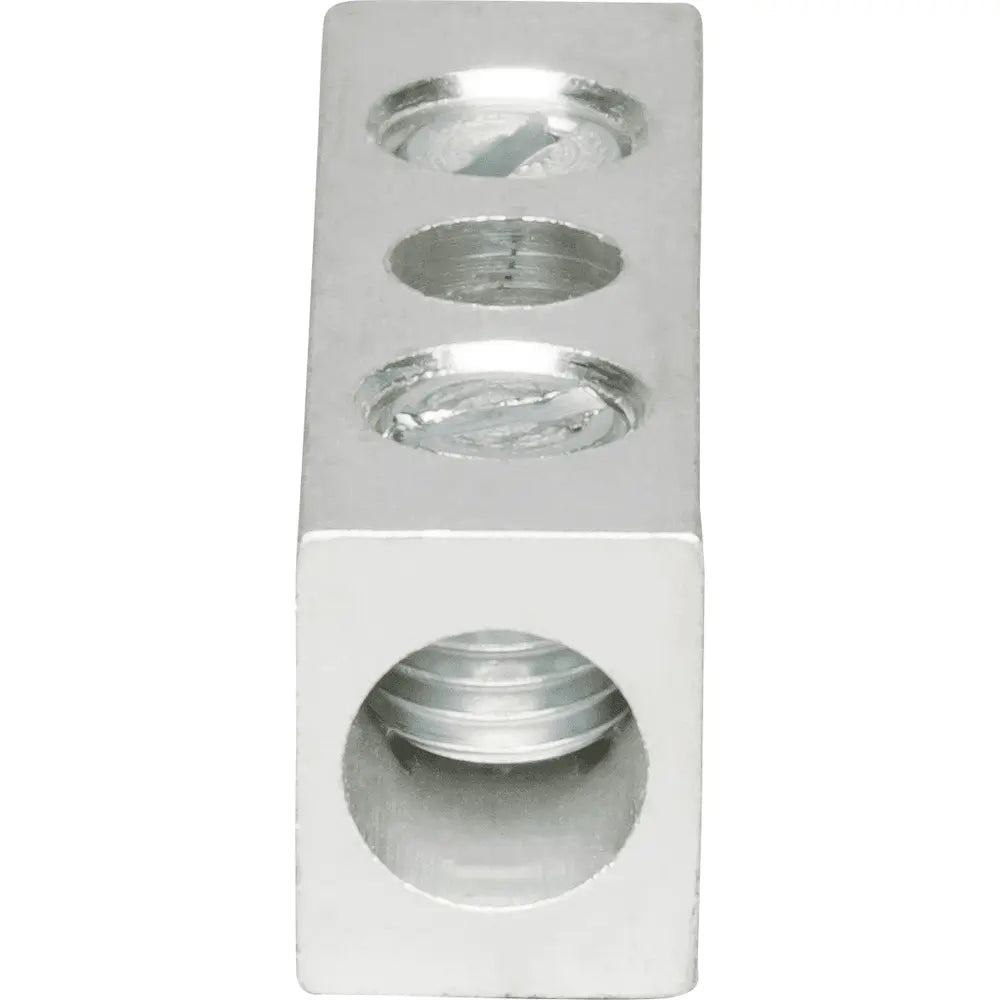

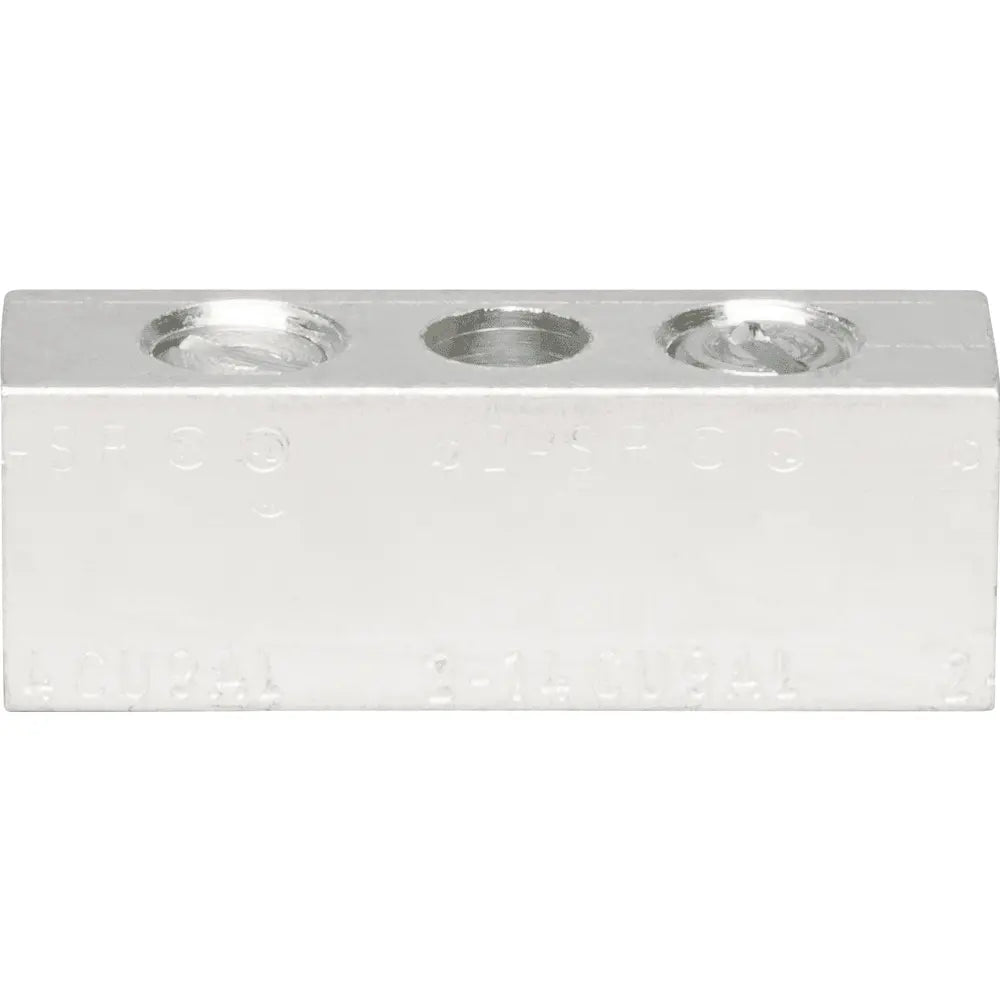

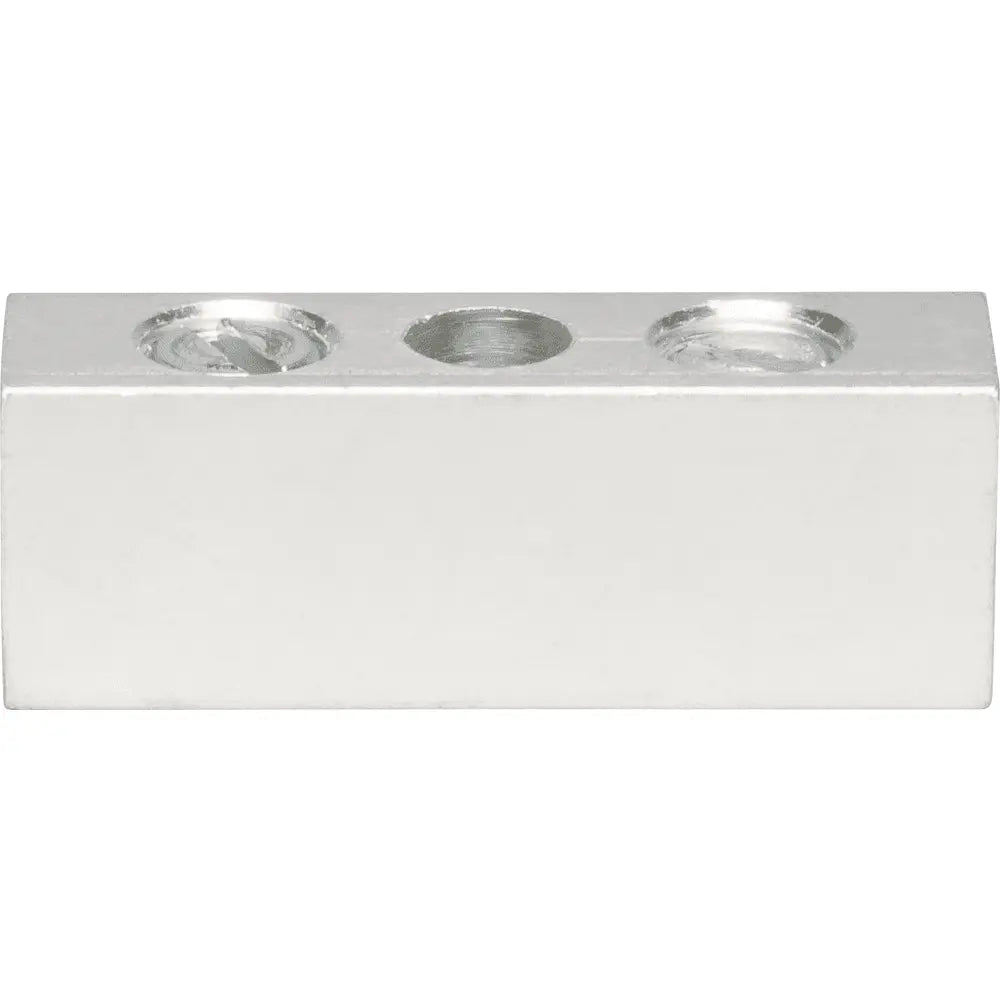

NSI 2SR Splicer Reducer 14 to 2 AWG

Product Description

The NSI Supplies 2SR Splicer Reducer is ideal for splicing copper or aluminum wires of different sizes. This reducer supports a range from fourteen to two AWG and features durable construction from 6061T-6 aluminum alloy. It is electro-tin plated to maintain low contact resistance. This splicer reducer is rated for up to six hundred volts operation.

• Material: 6061T-6 aluminum alloy
• Voltage rating: 600 volts
• Temperature rating: 90 degrees C

Product Highlights

The reducer is suitable for applications requiring splicing between wires of varied sizes and is UL486A/B listed, ensuring safe and reliable performance.

Product Information

Standard Information

• Brand: NSI
• Part #: 2SR

Technical Specifications

• Conductor range: 14 to 2 AWG
• Weight: 0.04 pounds
• Dimensions: 1.59 inches (length) x 0.44 inches (width) x 0.55 inches (height)
• Connection type: Mechanical
• Country of origin: USA
• Environmental conditions: Dry location
