Product Description

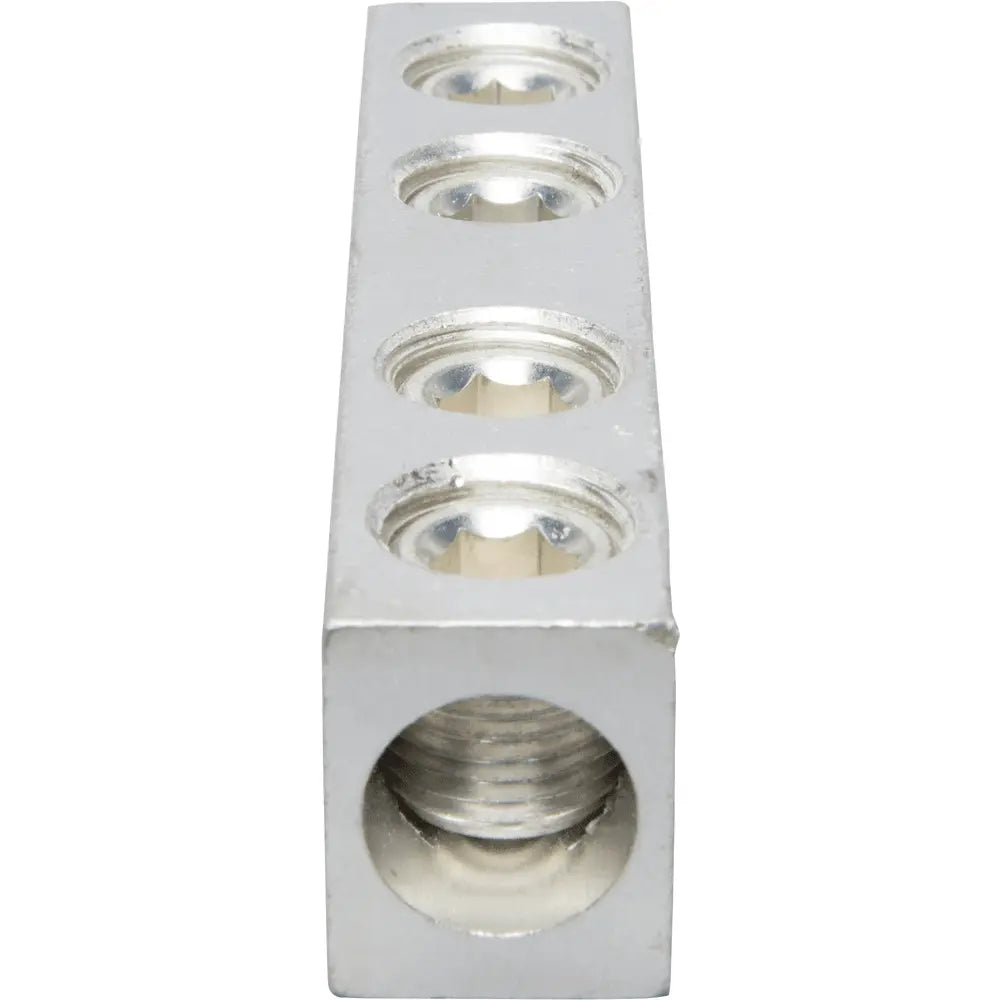

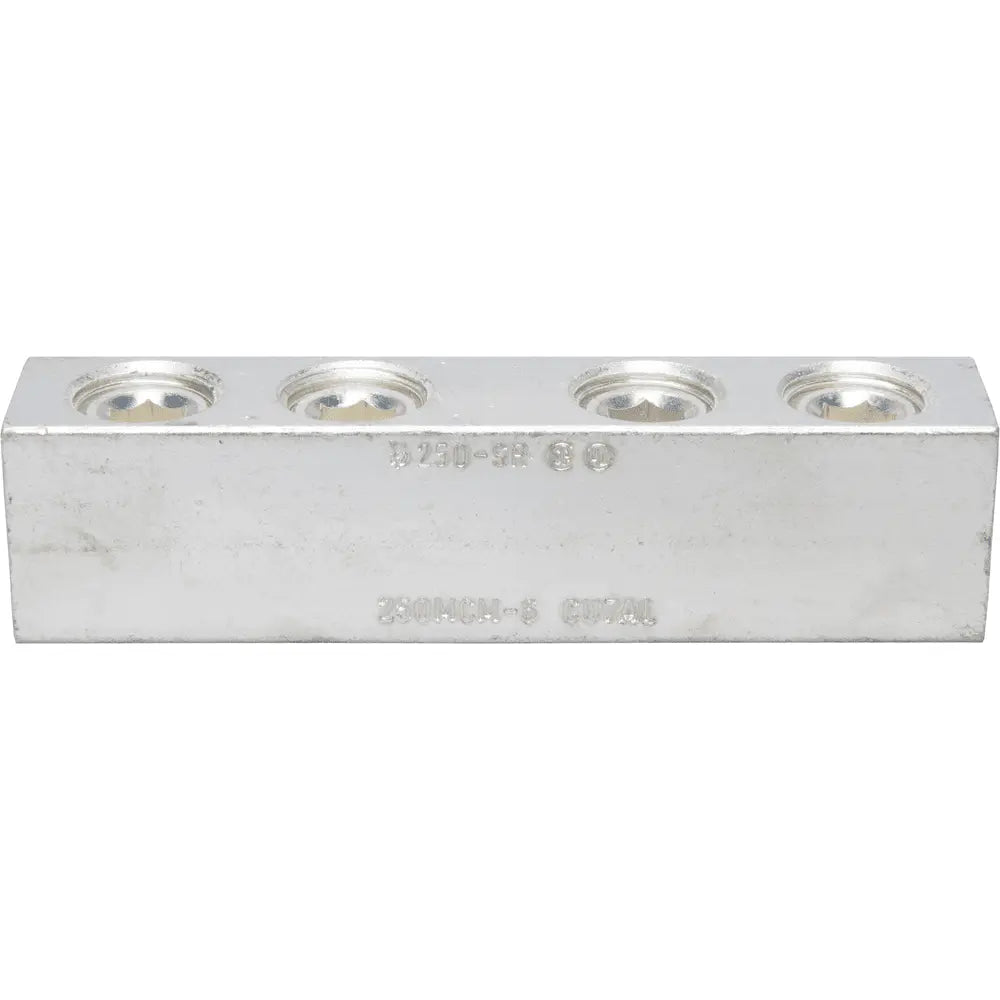

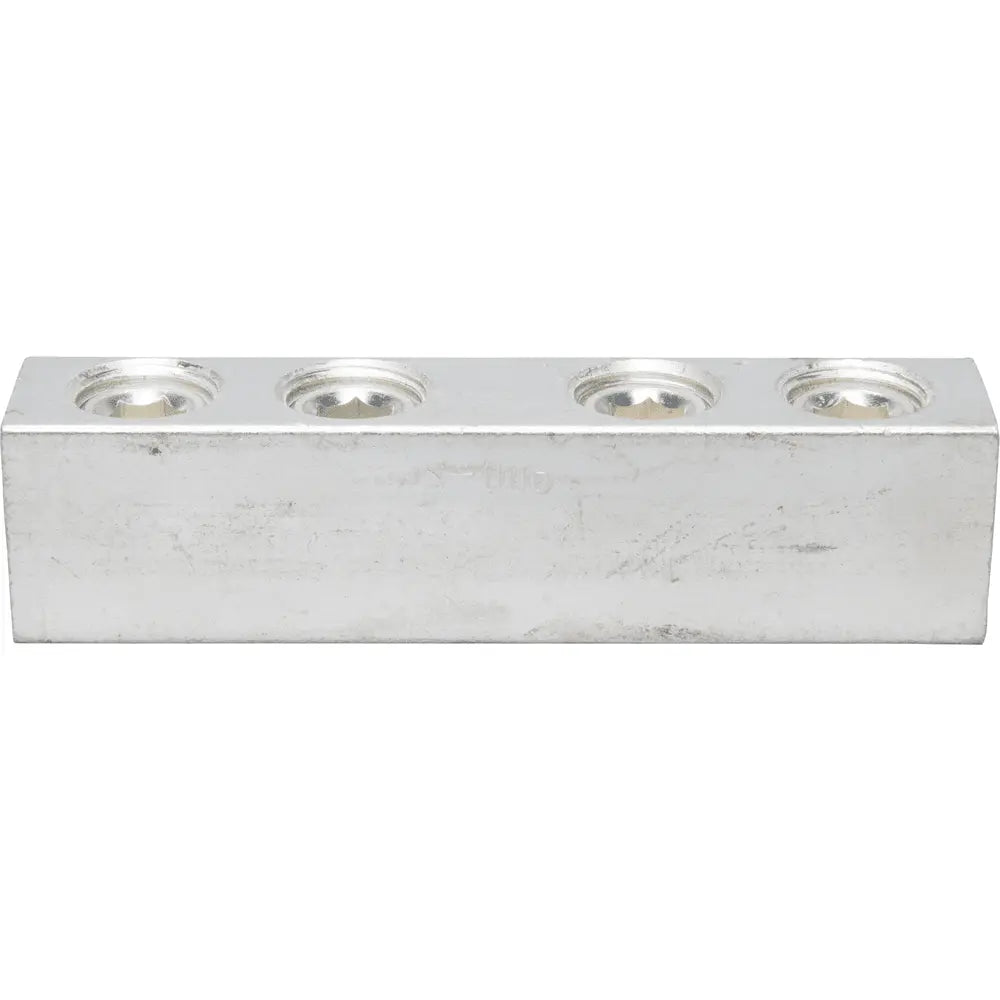

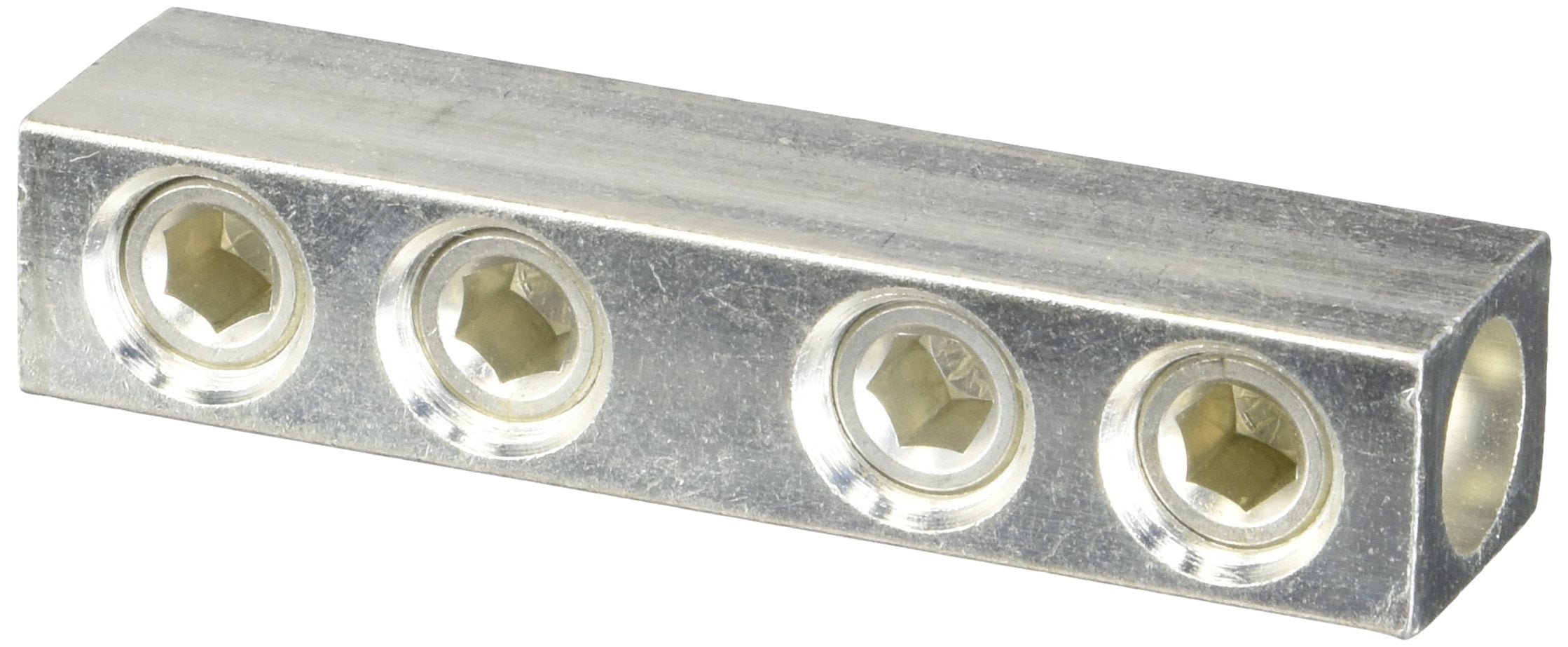

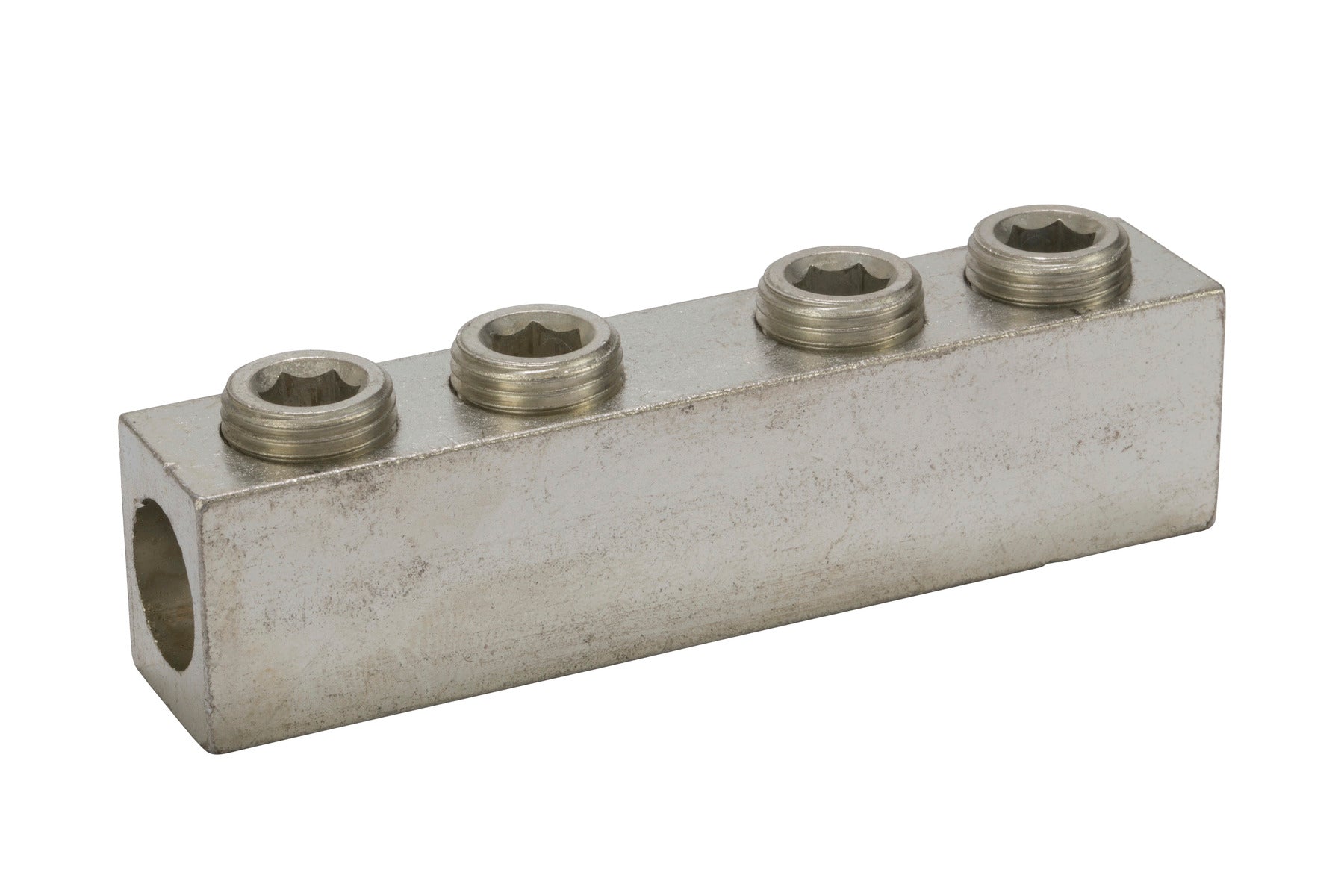

The NSI 250SR is an aluminum splicer reducer designed for splicing two copper or aluminum wires of equal or different sizes. Constructed from 6061T-6 aluminum alloy and electro-tin plated for low contact resistance. It is suitable for use with both copper and aluminum conductors. Rated to 600 VAC.
- For splicing two copper or aluminum wires of equal or different sizes
- Made of 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
Product Highlights
This splicer reducer features 2 ports, a temperature rating of 90 degrees C, and is UL 486A/B Listed.
Product Information
Standard Information
-
Brand: NSI
-
Manufacturer Part Number: 250SR
-
Country of Origin: US
Technical Specifications
-
Type: SR Series, Non-Insulated, Dual-Rated
-
Width: 0.81 Inches
-
Height: 1.00 Inches
-
Length: 4.09 Inches
-
Material: Aluminum
-
Standard: UL, CULus
-
Connection: Mechanical
-
Insulation: Non-Insulated
-
Voltage Rating: 600 VAC
-
Country of Origin: US
-
Environmental Conditions: Dry Location
-
Conductor Range (Main/Primary): 6 AWG to 250 MCM
-
Number Of Conductors/Ports (Main/Primary): 1
-
Number Of Conductors/Ports (Tap/Secondary): 1
-
Series: SR Series
-
Temperature Rating: 90 deg C
-
Conductor Size: 6 AWG to 250 kcmil
-
Conductor Type: Aluminum/Copper
-
Finish: Electro-Tin Plated
-
Number of Screws: 4
-
Body Material: Aluminum Alloy
-
Approval: UL (Canada and US)
-
Number of Ports: 2
-
Application: Wire Spicing
-
Rated: 600 Volts
-
Wire Range (CU-AL): 250 MCM - 6 AWG
-
Torque Value (IN/LBS): 330
-
Wrench Size: 5/16
-
Socket Size: 5/16 Inch Hex
-
Conductor Size - Main: 250 MCM-6 AWG
-
Standards: UL 486A/B Listed, cULus Listed
-
Manufacturer Part Number: 250SR
-
Manufacturer Name: NSI
-
Item Name: Splicer/Reducer
-
Torque Rating: 330 lb-Inch
-
Voltage: 600 Volt
-
Brand Name: NSI
-
Ul Standard: UL 486A-486B
-
Wire Range: 250 MCM – 6 AWG
-
Applications: Wire Spicing
-
Max Temperature: 90 degrees C
-
Number of Conductors: 2
-
Number of Poles: 1 Pole
-
Sub Brand: Mechanical Connector
-
Number of Conductors/Ports (Main/Primary): 1
-
Number of Conductors/Ports (Tap/Secondary): 1
