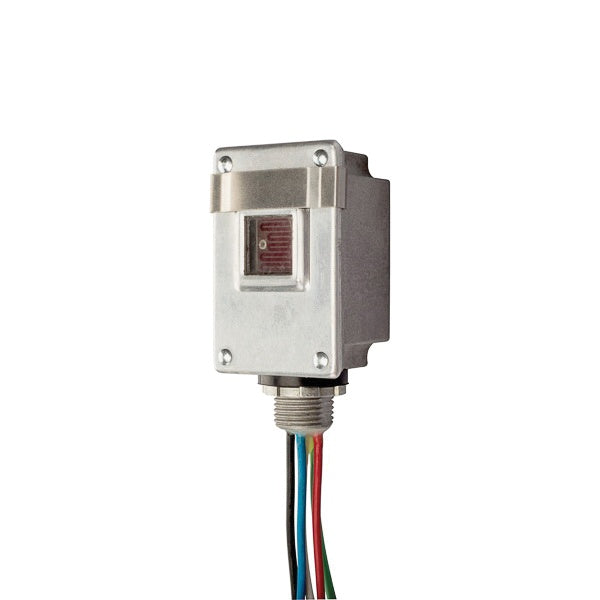

NSI 2119A Die Cast Aluminum Housing And Base Cadmium Sulphide Cell Photocontrol Sensor 120/208 - 277-Volt AC Tork

Product Description

The NSI Tork Cadmium Sulphide Cell Photocontrol Sensor, MPN 2119A, provides reliable illumination control with its advanced features. This sensor activates when sensing light levels, making it ideal for various outdoor applications.

• Sensing range of one to five foot-candles for turning on and three to fifteen foot-candles for turning off
• Voltage rating from 120 to 277 volts AC
• Suitable for parking lot and outdoor signage lighting

Product Highlights

Designed for optimum performance, the NSI 2119A features a die-cast aluminum body that ensures durability and resistance to environmental factors. Its dusk to dawn setting optimizes energy usage by activating lights automatically as day transitions to night.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 2119A

Technical Specifications

• Sensing Range: 1 - 5 FC Turn On, 3 - 15 FC Turn Off
• Voltage Rating: 120/208 - 277 Volt AC
• Maximum Load Capacity: 2000/3470 - 4620 Watt Tungsten, 1800/2080 - 2770 VA Ballast, 600/1040 - 1385 VA LED
• Time Delay: 2 min
• Construction: Die Cast Aluminum Housing and Base
• Temperature Rating: -40 to 140 degrees F
• Terminal Connection: 6 Inch Lead Wire
• Standards: cULus Listed, Meets ANSI/UL773A Standards, CA Title 24 Compliant
