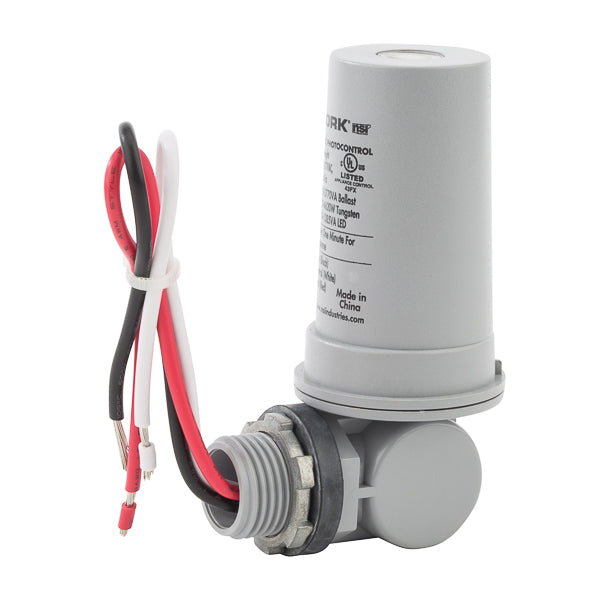

NSi 2022 Photocontrol Pencil -N- Sw 208-277 VAC 0.500 Conduit Mount

Product Description

The NSi 2022 Photocontrol Pencil is designed for easy installation and efficient energy management. This model features a 1/2 inch stem with swivel capabilities. It operates on a voltage range of 208 to 277 VAC, making it suitable for various applications. The photocontrol pencil turns on at 1 to 5 foot-candles and turns off at 3 to 15 foot-candles, ensuring optimal performance in different lighting conditions.

• Voltage range: 208 to 277 VAC
• Operating temperature: -40 to +140 F
• Power consumption: Under 1 Watt

Product Highlights

This photocontrol pencil is ideal for outdoor lighting, street lights, and building lighting systems. Its durable Lexan housing makes it resistant to environmental conditions. The sensor uses a cadmium sulfide cell for accurate light detection and is designed for conduit mount installation.

Product Information

Standard Information

• Brand: NSi
• Manufacturer: Nsi Industries

Technical Specifications

• MPN: 2022
• Sensor: Cadmium Sulphide Cell
• Weight: 0.22 lb
• Mounting: Conduit Mount
• Enclosure: Lexan Housing
• Sensitivity: Turn On is 1 to 5fc - Turn Off is 3 to 15fc
• Timing Range: 2 Minutes
• Frequency Rating: 50-60 Hz
• Power Consumption: Under 1 Watt
• Operating Temperature: -40 to +140 F
• Environmental Conditions: -40 to +140 F
