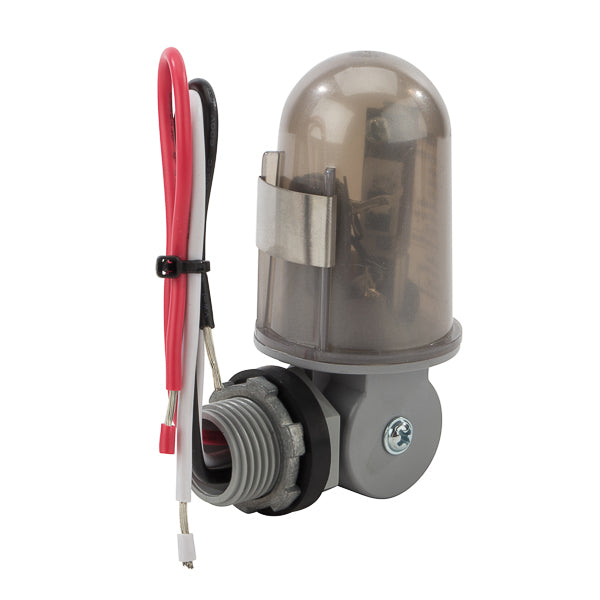

NSI 2018 STEM & SWIVEL PHOTOCONTROL 480V

Product Description

The NSI 2018 is a stem and swivel photocontrol designed for use in lighting applications. It operates at four hundred eighty volts alternating current and can handle a maximum tungsten load of seven thousand five hundred watts. This model features a cadmium sulfide cell sensor, ensuring reliable operation under various environmental conditions.

• Operates at 480 VAC
• Designed for 7500 W tungsten and 4800 VA ballast loads
• Environmental rating of -40 to 140 degrees Fahrenheit

Product Highlights

The NSI 2018 photocontrol is suitable for flood lamps, patio lamps, and other decorative lighting. Its surface mount design allows for easy installation, while its durable Lexan material protects against moisture and contaminants.

Product Information

Standard Information

• Manufacturer: NSi Industries
• UPC: 78626162021

Technical Specifications

• Type: Stem and Swivel
• Voltage Rating: 480 VAC
• Tungsten Rating: 7500 W
• Ballast Load: 4800 VA
• Frequency Rating: 50/60 Hz
• Dimensions: 1.67 inches L x 1.67 inches W x 4.936 inches H
• Sensitivity: 1 to 5 FC Turn ON, 3 to 15 FC Turn OFF
• Material: Lexan
• Environmental Conditions: -40 to 140 degrees Fahrenheit
• Timing Range: 2 min
• Mounting Type: Surface
• Standards/Approvals: cULus Listed, UL 773A
