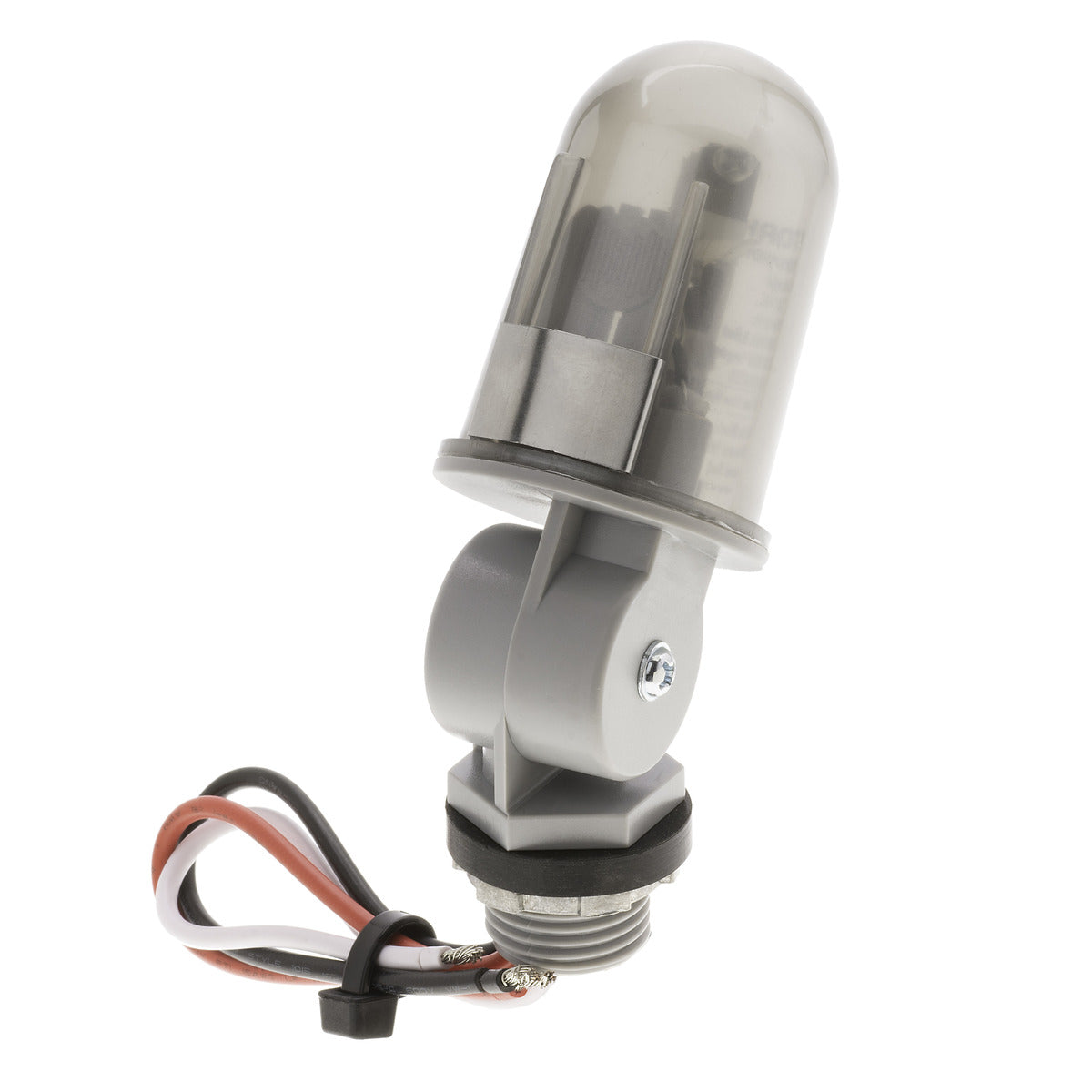

NSI 2001 Thermal 180-Degree Swivel Photocontrol 120-Volt AC SPST Gray Tork

Product Description

The NSI 2001 Thermal 180-degree swivel photocontrol operates at 120 volts AC. It is designed for outdoor lighting applications, including decorative and flood lighting. This device offers reliable performance with a current rating of 15-Amps and supports a maximum load of 2000 Watts tungsten. Constructed with Lexan housing, it resists moisture and contaminants for enhanced durability.

• Supports dusk to dawn operation
• Time delay feature up to two minutes to prevent false activation
• UL listed and CSA certified for safety standards

Product Highlights

The NSI 2001 is ideal for various lighting setups. It features a swivel design for easy installation and is effective in managing outdoor lighting.

Product Information

Standard Information

• Brand: NSI
• MPN: 2001

Technical Specifications

• Dimensions: 1-5/8 inches Diameter x 4-1/2 inches Height
• Temperature Rating: -40 to 140 degrees Fahrenheit
• Material: Lexan
• Mounting Type: 180 Degree Swivel, 1/2 Inch Conduit
• Connection Type: 16 AWG, 6 Inch Wire Lead
• Amperage Rating: 15 Amp Ballast, 16.7 Amp Incandescent
• Sensing Range: ON: 1 - 5 FC, OFF: 3 - 15 FC
• Standards: UL 773A, CSA Certified, ANSI Standard
