NSI 2000 Fixed Position Photocontrol Stem 120 VAC 2000 W Tungsten 1800 VA Ballast

Product Description

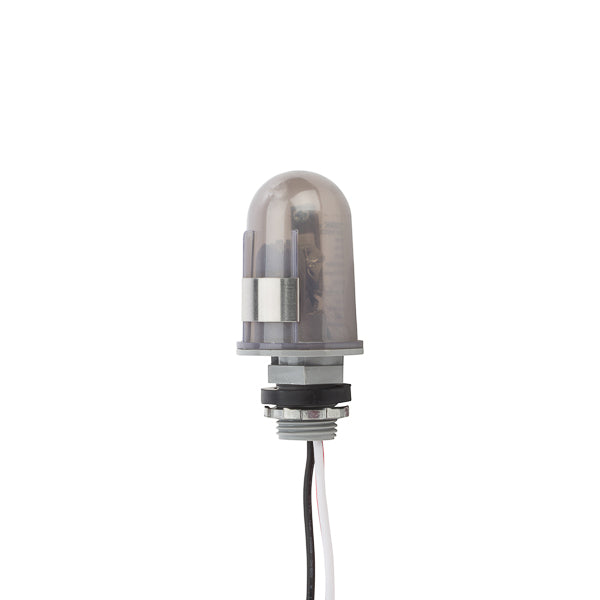

The NSI 2000 is a fixed position photocontrol stem by NSI Industries designed for use in lighting control systems. This device operates at 120 VAC and supports loads up to 2000 watts for tungsten lighting and 1800 VA for ballasts. Its features include a cadmium sulfide cell sensor that enhances sensitivity and a Lexan housing that contributes to durability and resistance to environmental conditions.

• Works with screw base compact fluorescent lamps (CFLs)
• Features a delay mechanism to prevent false switching
• Operating temperature range from -40 to 140 degrees Fahrenheit

Product Highlights

This photocontrol stem is ideal for outdoor lighting applications, providing reliable control in varying light conditions.

Product Information

Standard Information

• Manufacturer: NSi Industries
• Brand: NSI

Technical Specifications

• Voltage Rating: 120 VAC
• Tungsten Rating: 2000 W
• Ballast Load: 1800 VA
• Frequency Rating: 50/60 Hz
• Color: Gray
• Enclosure Type: Lexan Housing
• Sensitivity: 1.5 FC Turn On
• Sensor Type: Cadmium Sulfide Cell
• Timing Range: 2 min
• Wire Size: 16 AWG
• Environmental Conditions: -40 to 140 degrees Fahrenheit
