Product Description

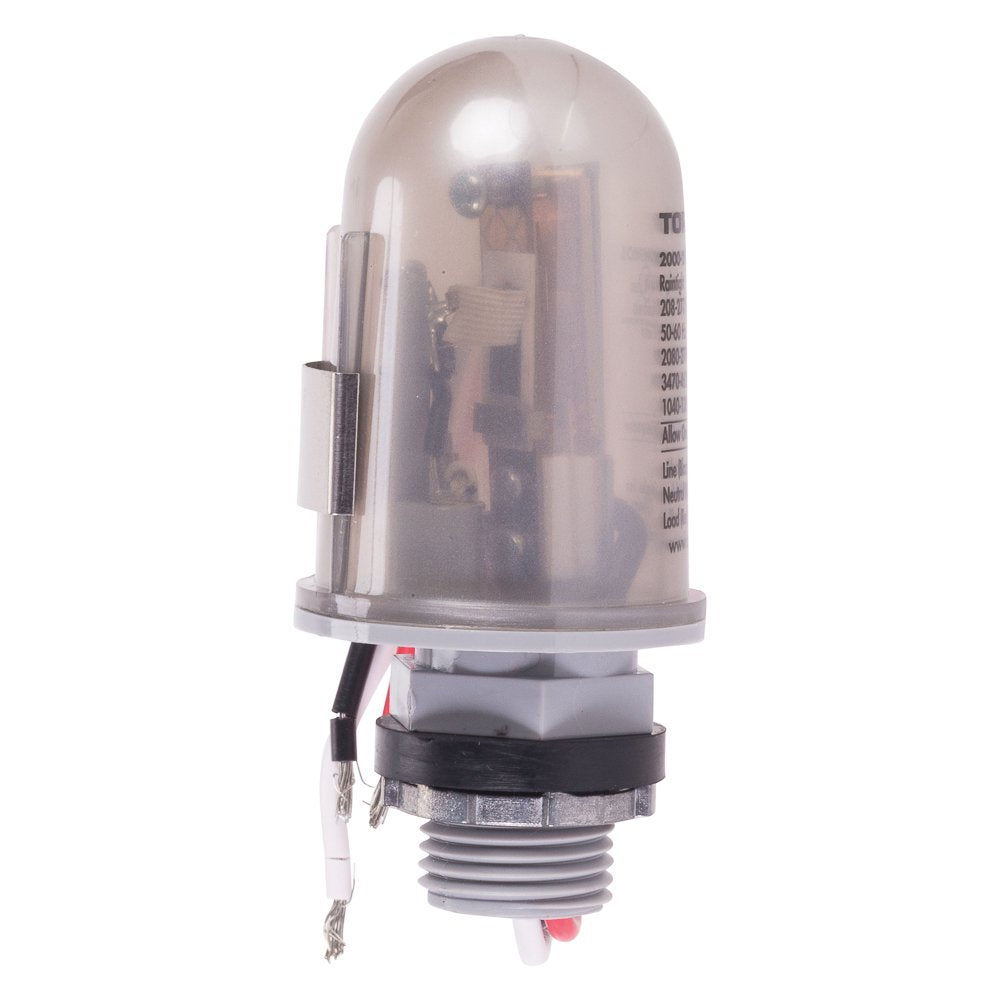

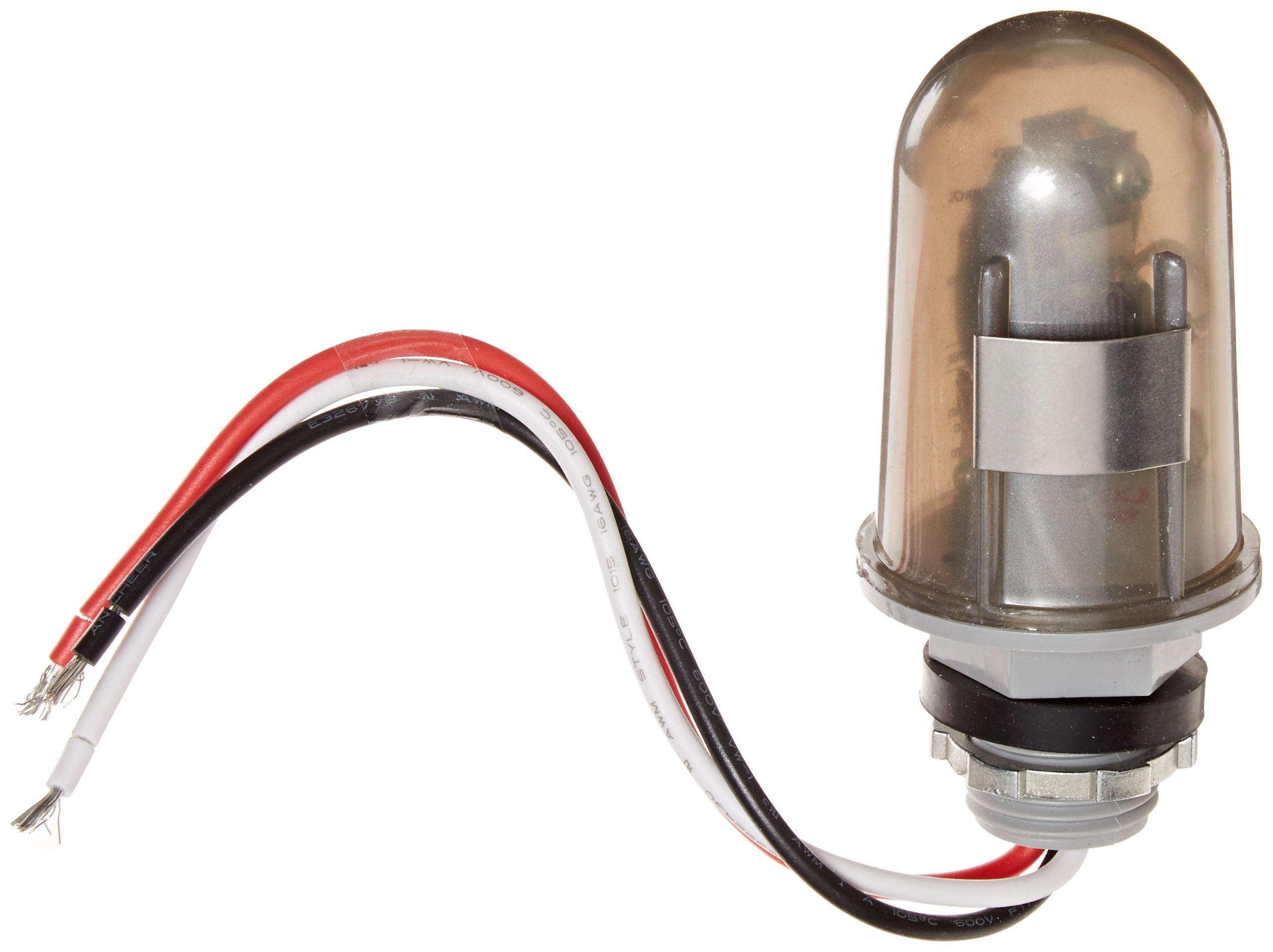

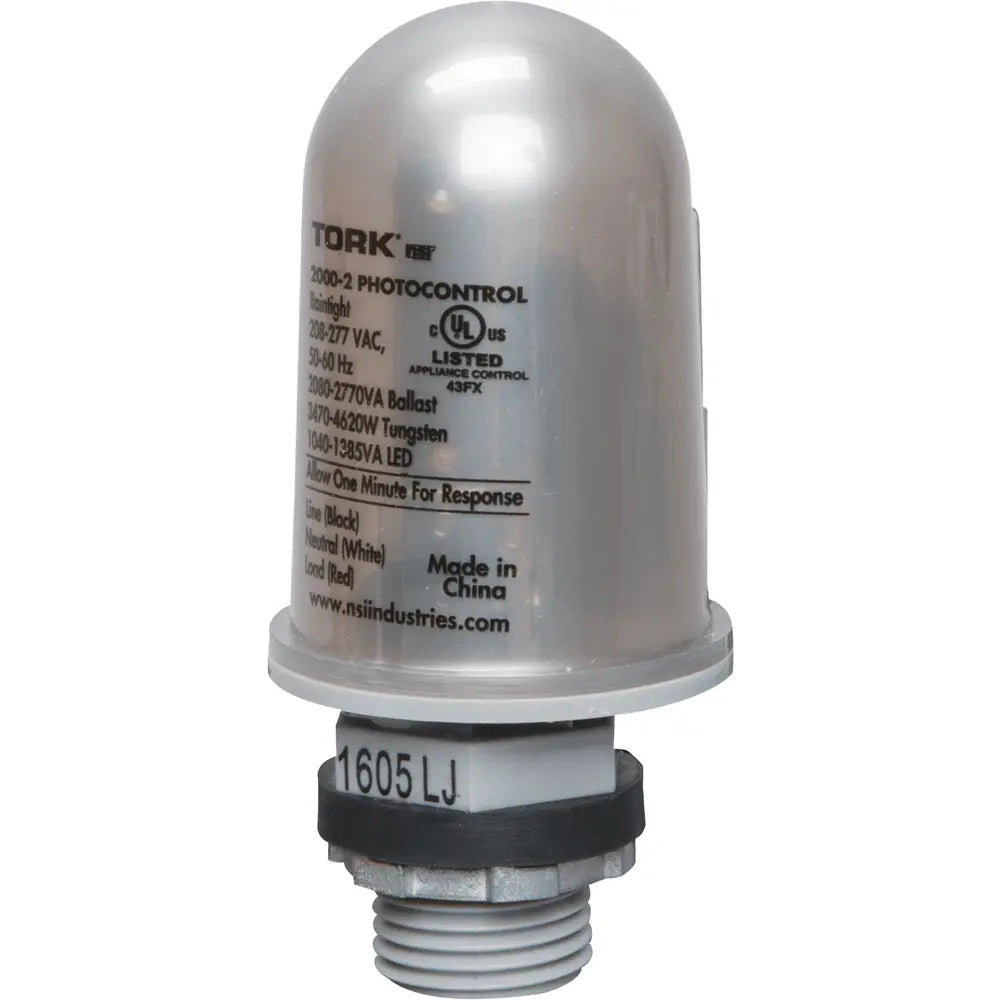

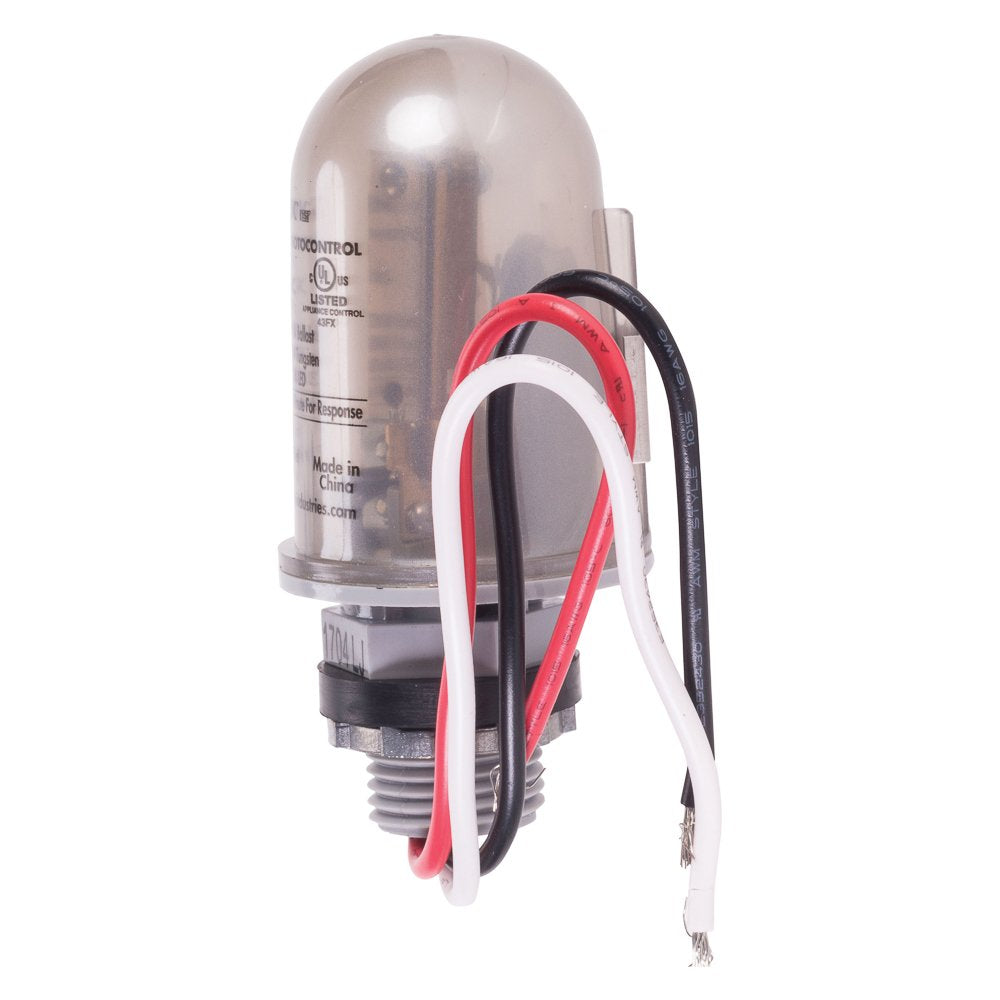

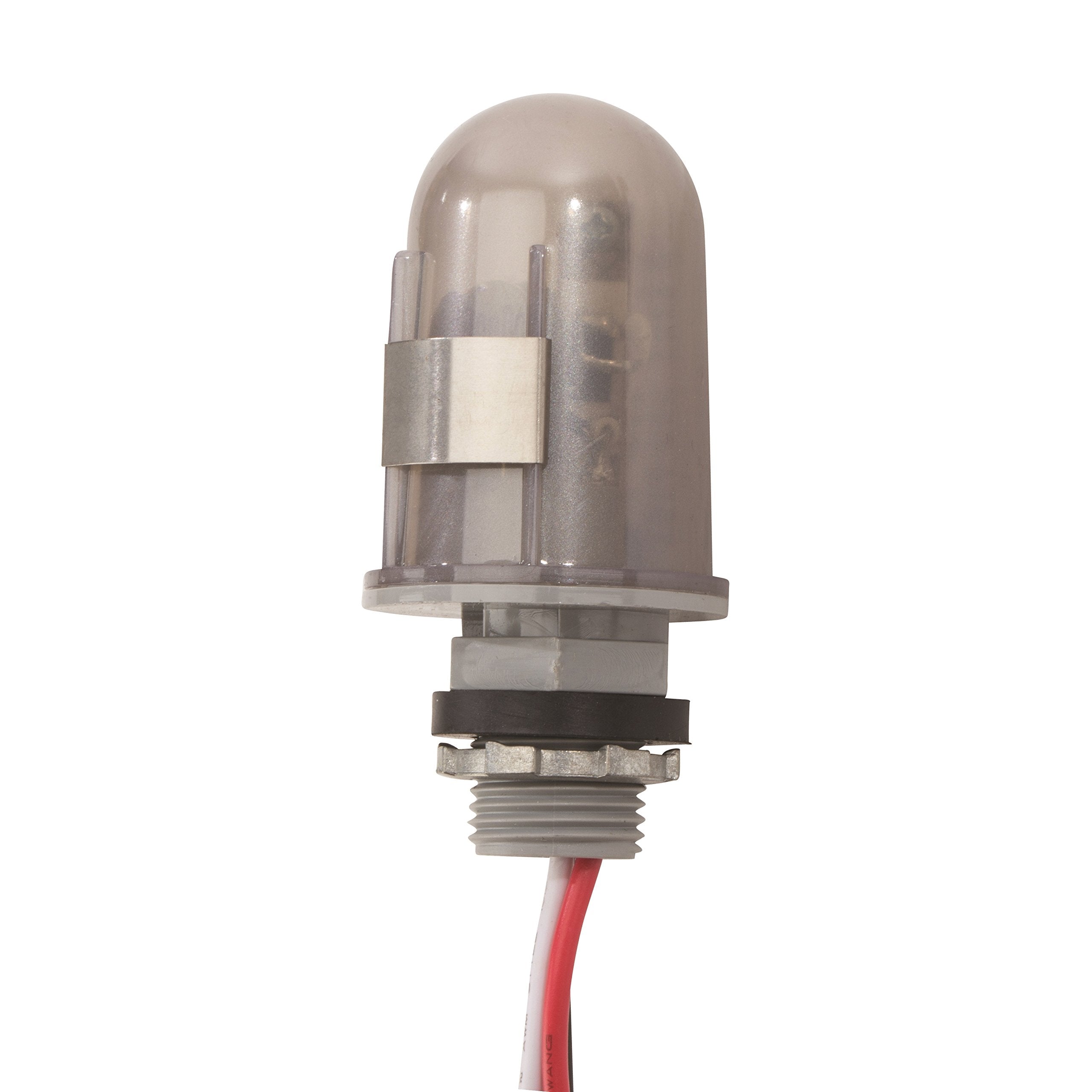

The NSI 2000-2 Tork fixed position photocontrol features a Lexan housing with weatherproof sealant. Operating at 208-277 VAC, it controls lighting based on ambient light levels, turning lights on between 1 to 5 FC and off between 3 to 15 FC. It is suitable for flood lamps, patio lamps and decorative lighting.
- Impact and vandal resistant Lexan enclosure
- Ultrasonically welded dome and base for maximum strength
- Conformal coated cadmium sulphide photocell resists moisture
Product Highlights
This photocontrol has a delay of up to 2 minutes to prevent false switching and consumes under 1W of power.
Product Information
Standard Information
-
Brand: NSI
-
Manufacturer Part Number: 2000-2
-
Country of Origin: CN
Technical Specifications
-
Type: Stem Mount Photocells
-
Depth: 1.625 Inches
-
Width: 1.625 Inches
-
Height: 4.5 Inches
-
Sensor: Cadmium Sulphide Cell
-
Mounting: Conduit
-
Standard: cULus
-
Connection: Wire leads
-
Timing Range: 2 Minutes
-
Supply Voltage: 208-277 VAC
-
Frequency Rating: 50/60 Hertz
-
Power Consumption: Under 1 Watt
-
Operating Temperature: -40°F to 140°F
-
Environmental Conditions: Wet/Dry Location
-
Contact Form: SPST
-
Sensitivity: 1 to 5 FC On/3 to 15 FC Off
-
Sensor Type: Cadmium Sulfide Cell
-
Series: 2000
-
Wire Size: 16 AWG
-
Voltage Rating: 208 to 277 VAC
-
Tungsten Rating: 3470 to 4620 W
-
Ballast Load: 2080 to 2770 VA
-
Mounting Type: Flush
-
Material: Lexan®
-
Turn ON Light Level: 1 to 5 FC
-
Turn OFF Light Level: 3 to 15 FC
-
Terminal Type: 16 AWG 6 Inch Wire Lead
-
Temperature Rating: -40 to 140 Deg F
-
Mounting Position: Fixed
-
Enclosure Material: Lexan
-
Application: Decorative Lighting, Floodlight, Patio Lamp
-
Approval: UL (Canada and US)
-
Power Rating: 1 W
-
Switch type: Photo sensor and switch, weatherproof
-
Input power supply: 120/277 VAC, 50/60 Hz, 1 watt power consumption
-
Output contacts: SPST contacts, 2,770 watt ballast capable, 4,620 watt load
-
On/off control: On at user-selectable 1 to 5 fc, Off at 3 to 15 fc
-
Enclosure: 1/2" conduit mount, indoor/outdoor use
-
Terminal wire size range: #16 AWG (American wire gauge)
-
Operating temperature range: -40 to +140 degrees F (-40 to +60 degrees C)
-
Standards met: UL Listed, CSA certified
-
Volts AC: 277, 240, 208
-
Catalog Number: 2000-2
-
Standards: UL 773AcULus ListedANSI Approved
-
Brand: TORK®
