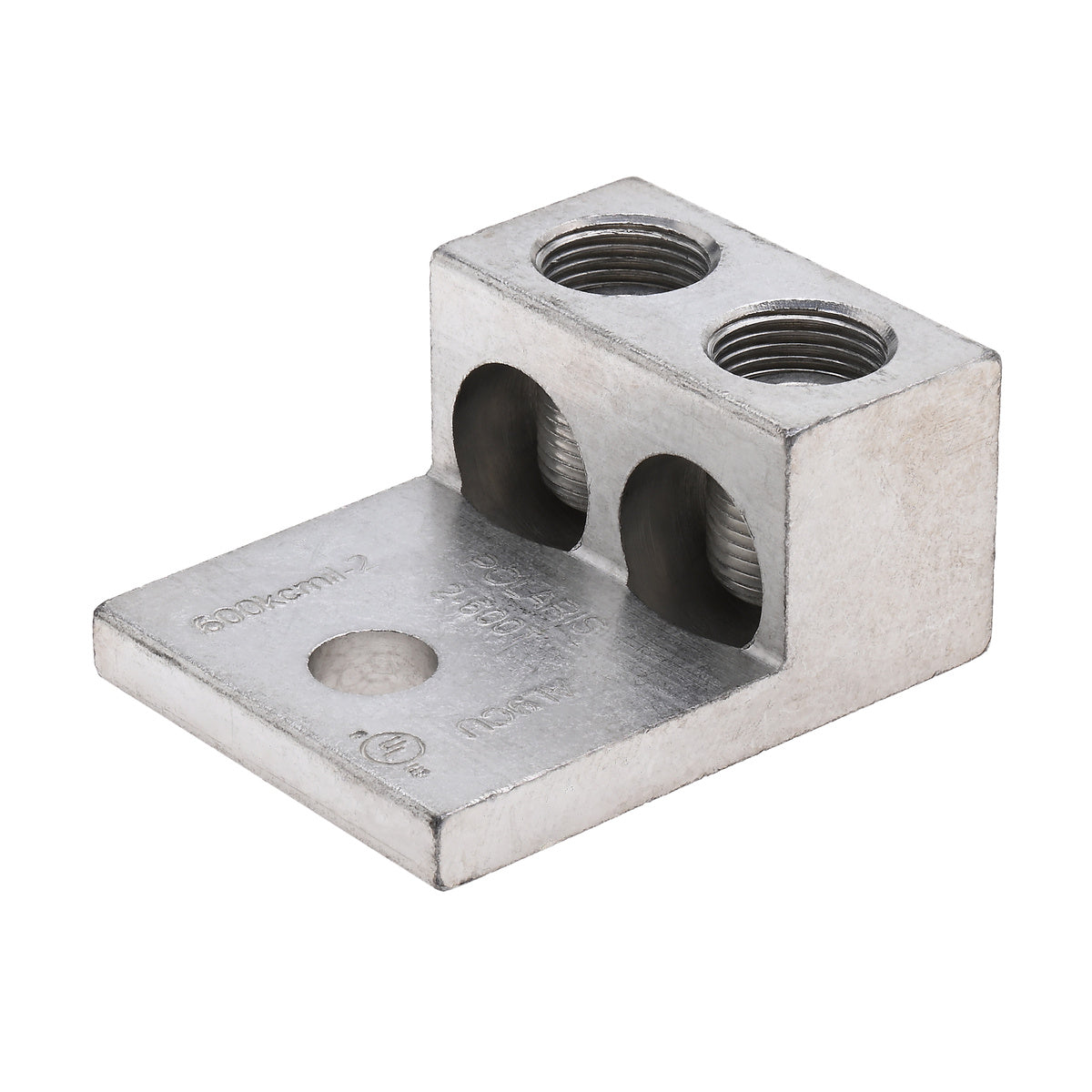

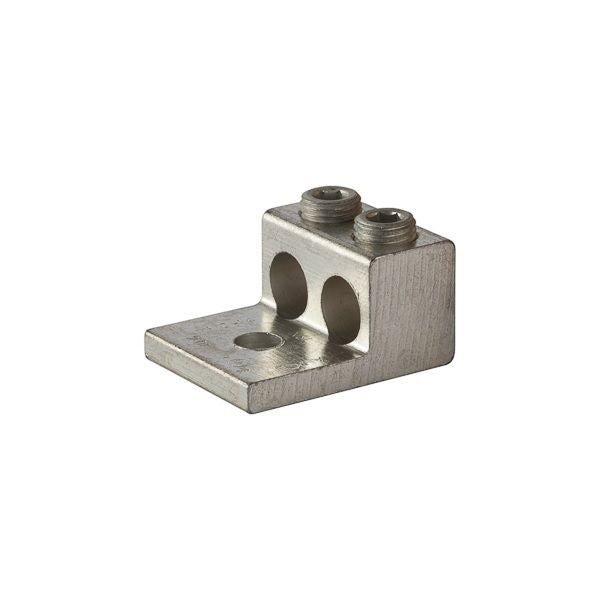

Nsi 2-600T Polaris Dual Rated Lug Aluminum/Copper 600-2

Product Description

The NSI 2-600T is a versatile and reusable set-screw connector made of 6061T-6 aluminum alloy. It is electro-tin plated for low contact resistance and suitable for use with copper or aluminum conductors. This dual-rated lug is designed for wire termination and is UL 486A/B Listed.

• Versatile and reusable set-screw connectors
• Made of 6061T-6 aluminum alloy
• Electro-tin plated for low contact resistance

Product Highlights

Dual rated lug made from 6061T-6 aluminum alloy with electro-tin plating. Suitable for copper or aluminum conductors and rated to 600V.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: 2-600T
• Country of Origin: USA

Technical Specifications

• Voltage Rating: 600 V
• Material: 6061T-6 Aluminum Alloy
• Finish: Tin Plated
• Pack Qty: 4
• Ul Standard: UL 486A-486B
• Conductor Type: Aluminum, Copper
• Tang Length: 1.93
• Wire Range: 600 MCM – 2 AWG
• Assortment: Aluminum Mechanical Terminations
• Number of Bolt Holes: 1
• Catalog ID: NSI2-600T
• Conductor Size: 600 mcm to 2 AWG
• Stud Size: 1/2 in
• Temperature Rating: 90 deg C
• Application: For Wire Termination
• Standard & Approvals: cULus Listed, UL 486A/B
• Tongue Size: 1.93 in W x 0.38 in THK
• Series: T-Series
• Bolt Size: 1/2 IN
• Number of Conductors: 2
• Number of Poles: 1 Pole
• Number of Ports: 2
• Standard: CULUS
• Type: Aluminum Double Lug
• Voltage: 600 Volt
• Wire Size: 2 AWG
• Brand: NSI Industries
• Sub Brand: Mechanical Connector
• 12-Digit UPC: 662381001245
• Environmental Conditions: 90 degrees C
• MDM Pkg GTiN: 00662381001245
• Product UPC: 66238100124
• Height: 1.51 Inch
• Length: 3.18 Inch
• Width: 2.41 in
• Certifications and Compliance: Buy American Compliant
• Certifications and Standards: cULus, UL Listed, UL 486A-486B
