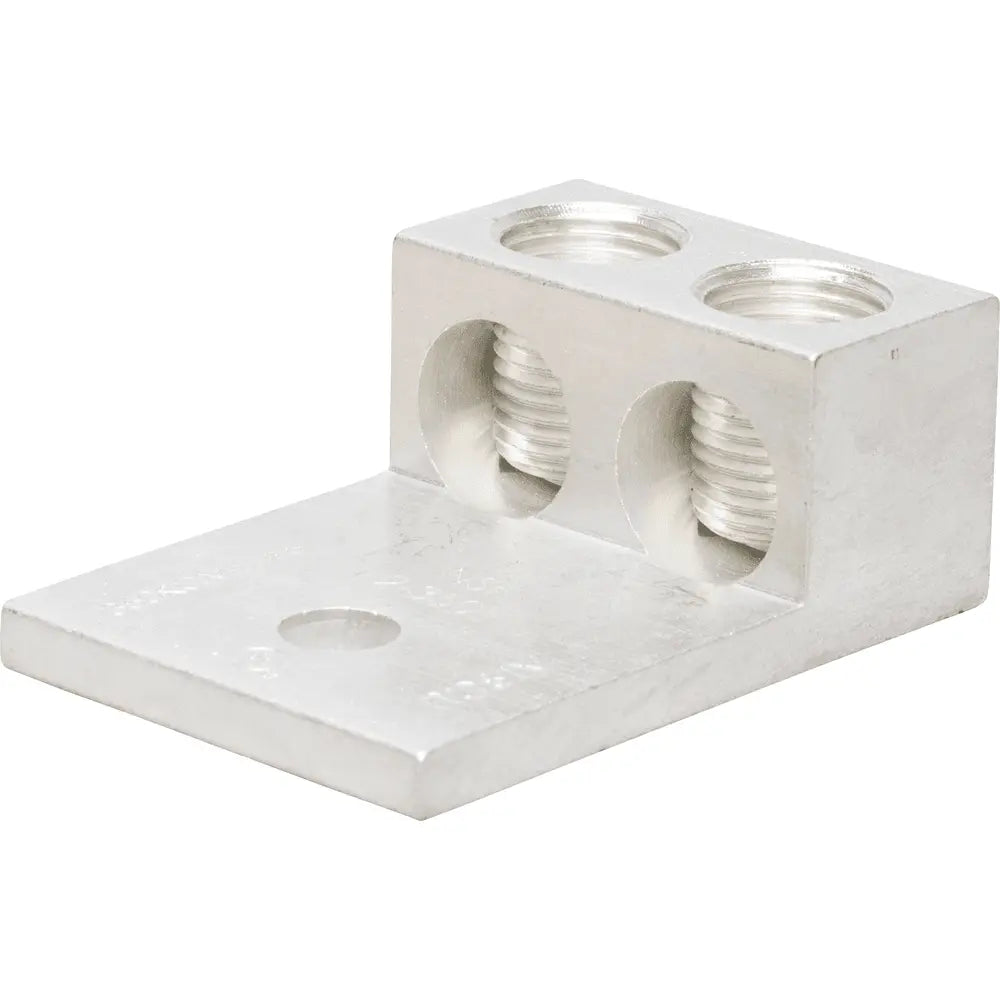

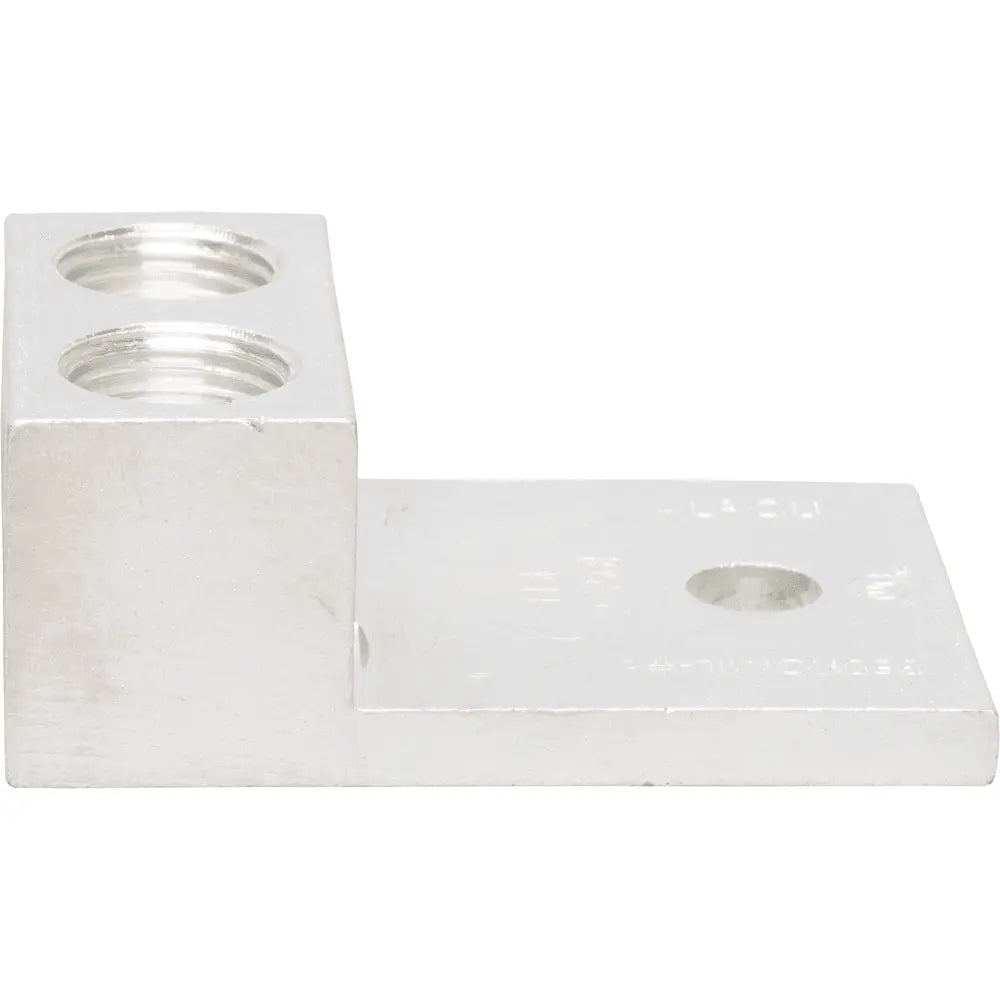

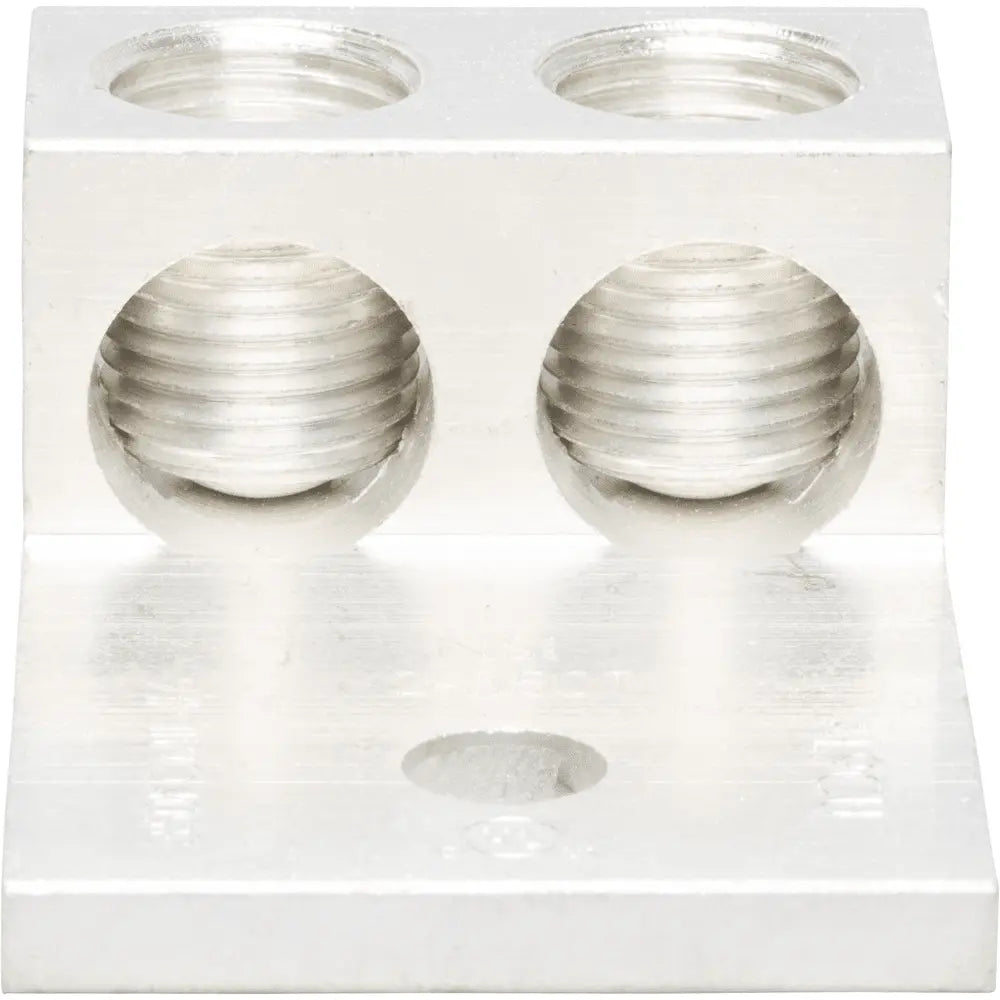

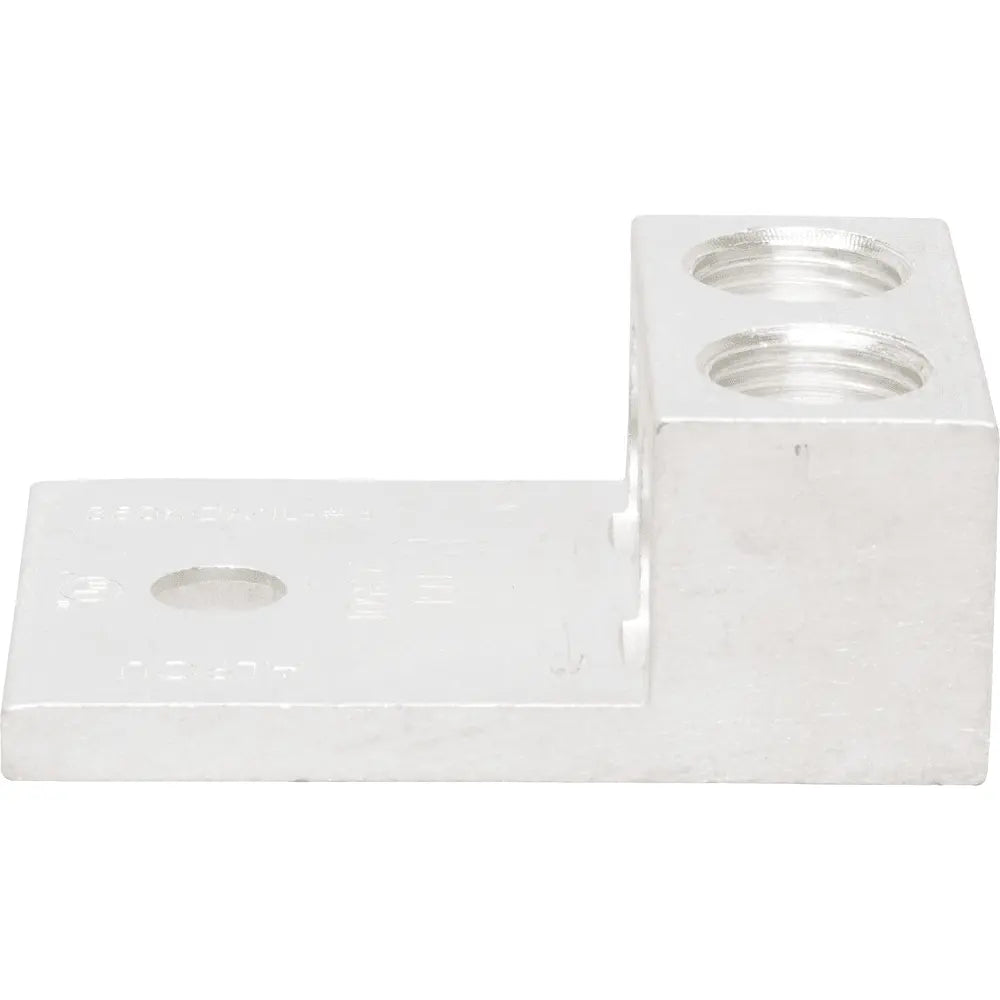

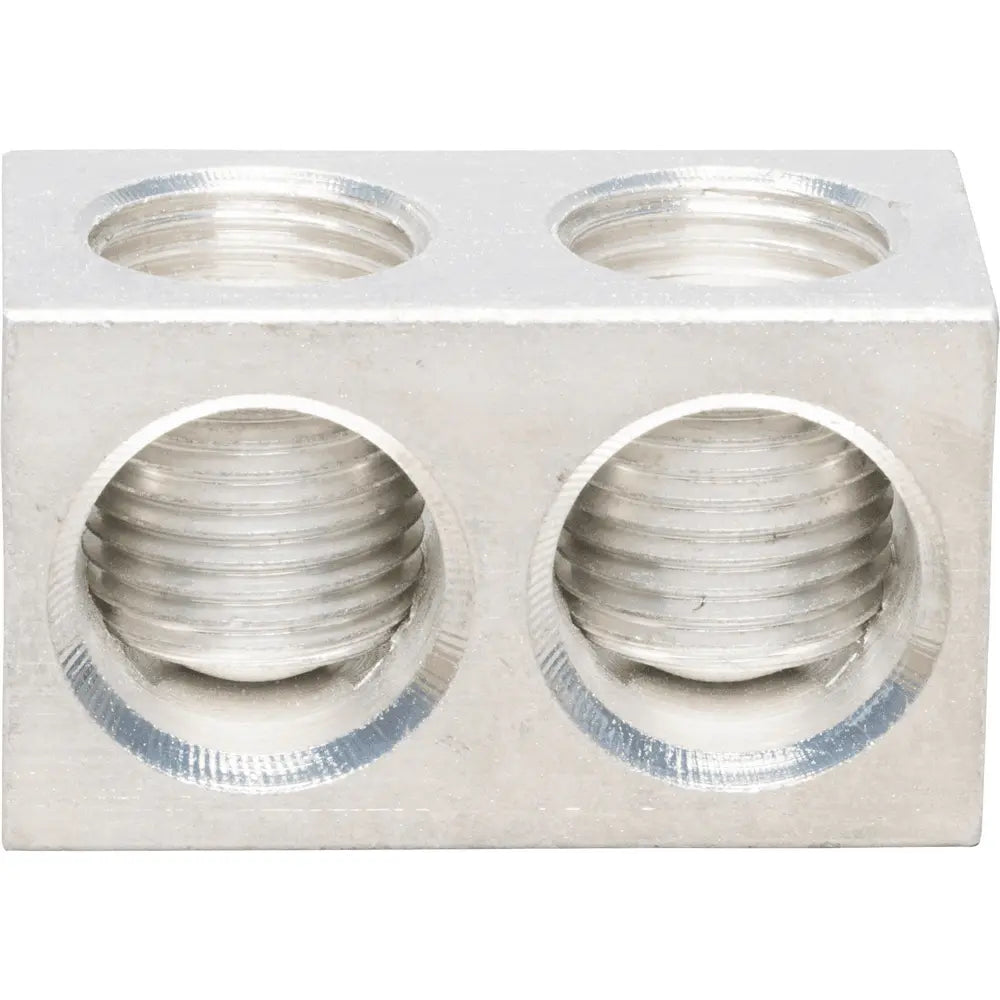

NSI 2-350T Dual Rated Lug, 6 AWG to 350 KCMIL

Product Description

The NSI 2-350T is a dual rated two-port lug designed for 6 AWG to 350 MCM conductors. This product is suitable for both copper and aluminum conductors and meets the electrical requirements for a maximum voltage rating of 600 volts.

• Versatile and reusable set-screw connectors.
• Constructed from high-quality 6061T-6 aluminum alloy.
• Electro-tin plated for low contact resistance.

Product Highlights

Ideal for applications in electrical distribution boards and other wire terminations, providing reliable connections for both residential and commercial installations.

Product Information

Standard Information

• Brand: NSI
• MPN: 2-350T

Technical Specifications

• Material: Aluminum
• Voltage Rating: 600 VAC
• Conductor Size: 6 AWG to 350 KCMIL
• Dimensions: 2.88 inches L x 1.92 inches W x 1.13 inches H
• Bolt Size: 5/16 inches
• Number of Bolt Holes: 1
• Temperature Rating: 90 degrees C
• Insulation: Non-Insulated
• Environmental Conditions: Dry Location
